After Treatment Device (ATD) Mounting

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT385927	1	Bracket	-
2	T278914	1	Plate	-
3	AT375421	3	Isolator	-
4	24M7180	3	Washer	13 X 37 X 3 mm
5	14M7299	3	Flange Nut	M12
6	T265663	1	Bracket	-
7	AT366596	1	Strap	-
8	24M7544	2	Washer	13 X 25 X 3 mm
9	14M7718	2	Lock Nut	M12
10	19M7787	3	Screw	M12 X 20
11	24M7296	12	Washer	10.500 X 30 X 2.500 mm, SUB FOR 24M7178
12	19M7662	6	Cap Screw	M10 X 30
13	14M7274	6	Nut	M10
14	-	1	Part 14	RE542579 NLA; ORDER RE544859, RE544860, AND RE544861
14	RE544861	1	Exhaust Pipe	DPF Outlet
14	RE544860	1	Diesel Particulate Filter	DPF
14	RE544859	1	Diesel Oxidation Catalyst	DPF Inlet
15	AT388748	1	Bracket	-
16	AT376151	1	Clamp	-
17	RE544911	1	Sensor Kit	-
18	RE540260	1	Fitting	-
19	19M7922	1	Cap Screw	M8 X 40
20	24M7055	2	Washer	8.400 X 16 X 1.600 mm
21	24M7238	2	Washer	8.700 X 17 X 2 mm
22	19M7407	2	Cap Screw	M8 X 25
23	19M7784	2	Screw	M10 X 20
24	14M7707	1	Lock Nut	M8
25	AT385753	1	Air Flow Tube	-
26	AT409057	1	Air Flow Tube	-
27	AT386593	1	Exhaust Pipe	USE WITH AT396074
27	AT424595	1	Exhaust Pipe	USE WITH T332095
28	R528112	2	Seal	-
29	RE289839	2	Clamp	-
30	AT396074	1	Nozzle	USE WITH AT386593
30	T332095	1	Nozzle	USE WITH AT424595
31	AT396343	1	Exhaust Pipe	Chrome Exhaust Stack
31	AT396344	1	Exhaust Pipe	Black Exhaust Stack
32	19M7786	3	Screw	M10 X 30
33	AT374779	1	Clamp	-
34	RE542006	1	Strap	-
35	RE546926	1	Temperature Sensor	-
36	T269643	3	Clamp	-
37	T269639	2	Clamp	-
38	24M7238	5	Washer	8.700 X 17 X 2 mm
39	19M7775	2	Screw	M6 X 16
40	19M7881	4	Screw	M8 X 20
41	14M7273	1	Nut	M8
42	T278230	1	Heat Shield	-

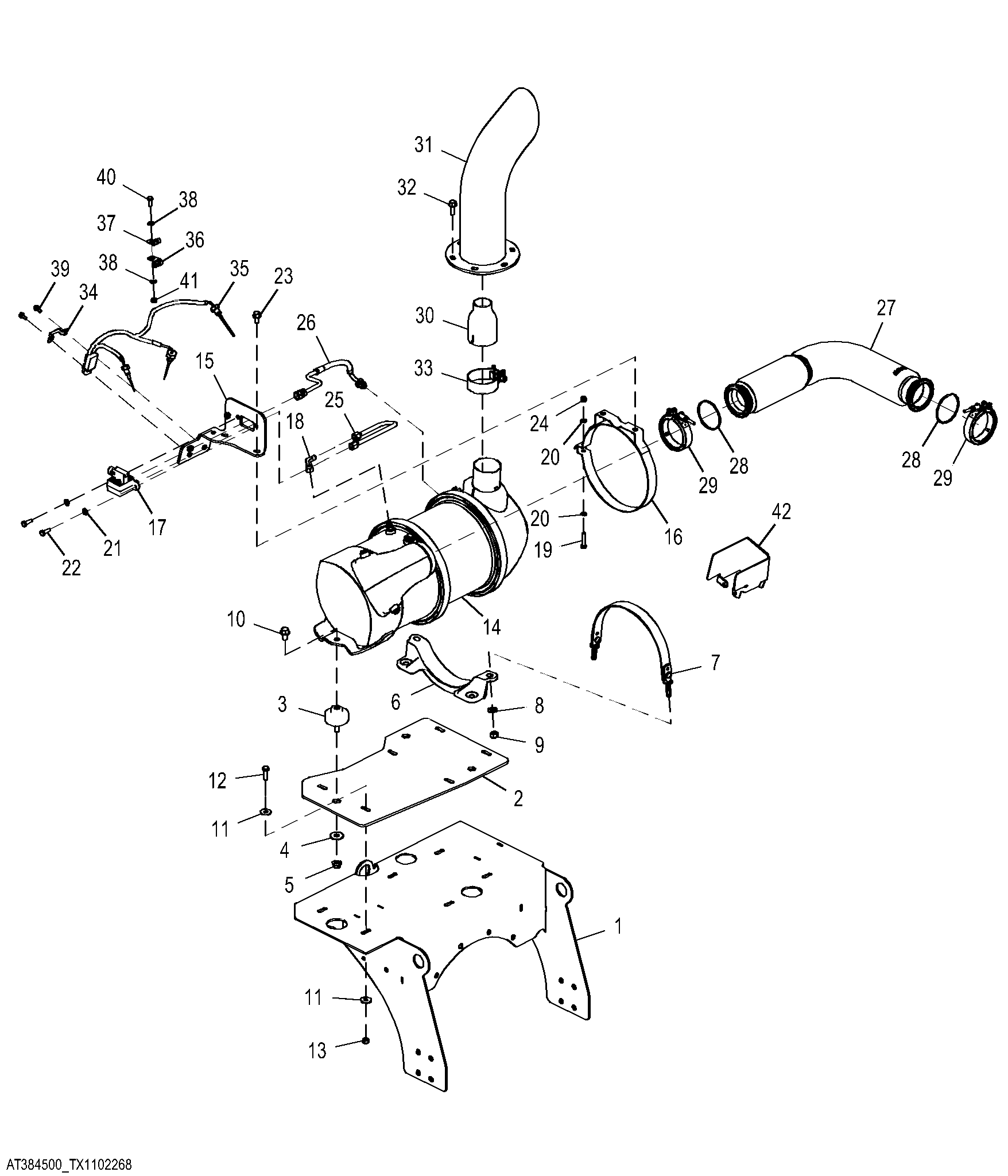

After Treatment Device (ATD) Mounting
