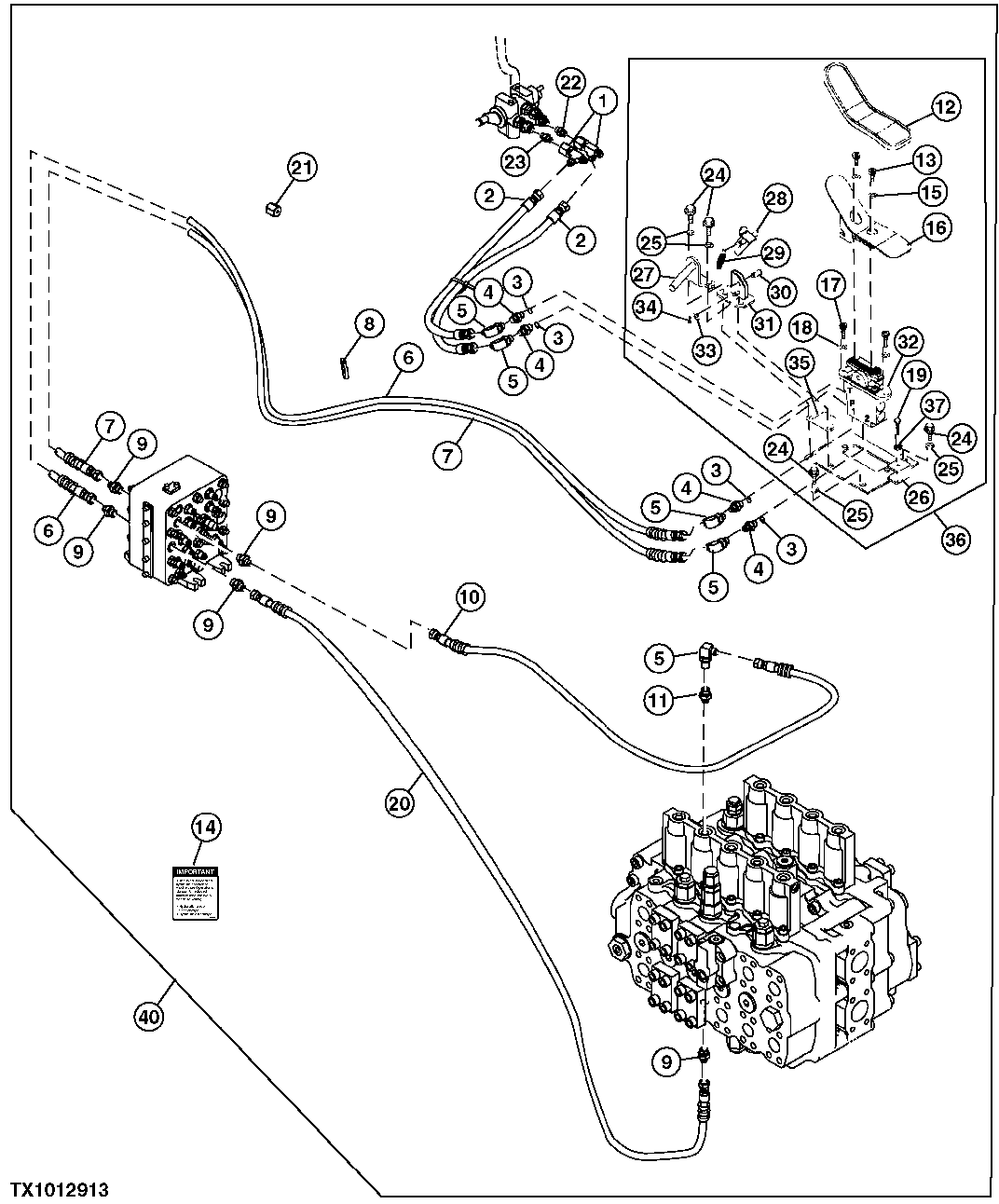

TWO-WAY HYDRAULIC FOOT PEDAL CONTROL REPLACEMENT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 1	WHOLEGOODS ( <service-part>AT312422</service-part> NLA)
1	AT36921	2	Tee Fitting	-
2	AH108250	2	Hose	-
3	R26448	4	O-Ring	-
4	A852123	4	Adapter Fitting	-
5	AE24616	5	Elbow Fitting	-
6	AE42067	1	Hydraulic Hose	-
7	AE42067	1	Hydraulic Hose	-
8	H77698	5	Tie Band	-
9	4200466	5	Adapter Fitting	(SUB FOR TH108320)
9	CH11570	1	O-Ring	-
10	AT68901	1	Hydraulic Hose	-
11	4202422	1	Adapter Fitting	(SUB FOR TH108440)
11	CH11570	1	O-Ring	-
12	4283758	1	Cover	-
13	J781020	2	Bolt	-
14	T149434	1	Label	BREAKER/CRUSHER MAINTENANCE INTERVALS (ENGLISH)
14	T222992	1	Label	BREAKER/CRUSHER MAINTENANCE INTERVALS (FRENCH)
14	T222993	1	Label	BREAKER/CRUSHER MAINTENANCE INTERVALS (SPANISH)
15	12M7066	2	Lock Washer	10 mm
16	8084644	1	Pedal	-
17	19M7576	2	Screw	M10 X 30, (SUB FOR J781030)
18	12M7066	2	Lock Washer	10 mm
19	4317640	1	Bolt	-
20	AR90081	1	Hydraulic Hose	-
21	R31147	1	Fitting	(TANK PORT DRAIN LINE)
22	4261938	1	Fitting	(NA)
23	4200466	1	Adapter Fitting	(NA)
24	19M7784	4	Screw	M10 X 20
25	24M7296	4	Washer	10.500 X 30 X 2.500 mm
26	8087747	1	Plate	-
27	8083128	1	Bracket	-
28	8084658	1	Stop	-
29	4279604	1	Spring	-
30	4287795	1	Pin	-
31	8080596	1	Bracket	-
32	9197490	1	Hydr./Pilot Control Valve	-
33	24M7028	1	Washer	10.500 X 20 X 2 mm
34	11M7080	1	Cotter Pin	2.500 X 16 mm
35	4461388	1	Shim	-
36	9198415	1	Hydr./Pilot Control Valve	(NLA) (ORDER COMPONENTS)
37	14M7273	1	Nut	M8
