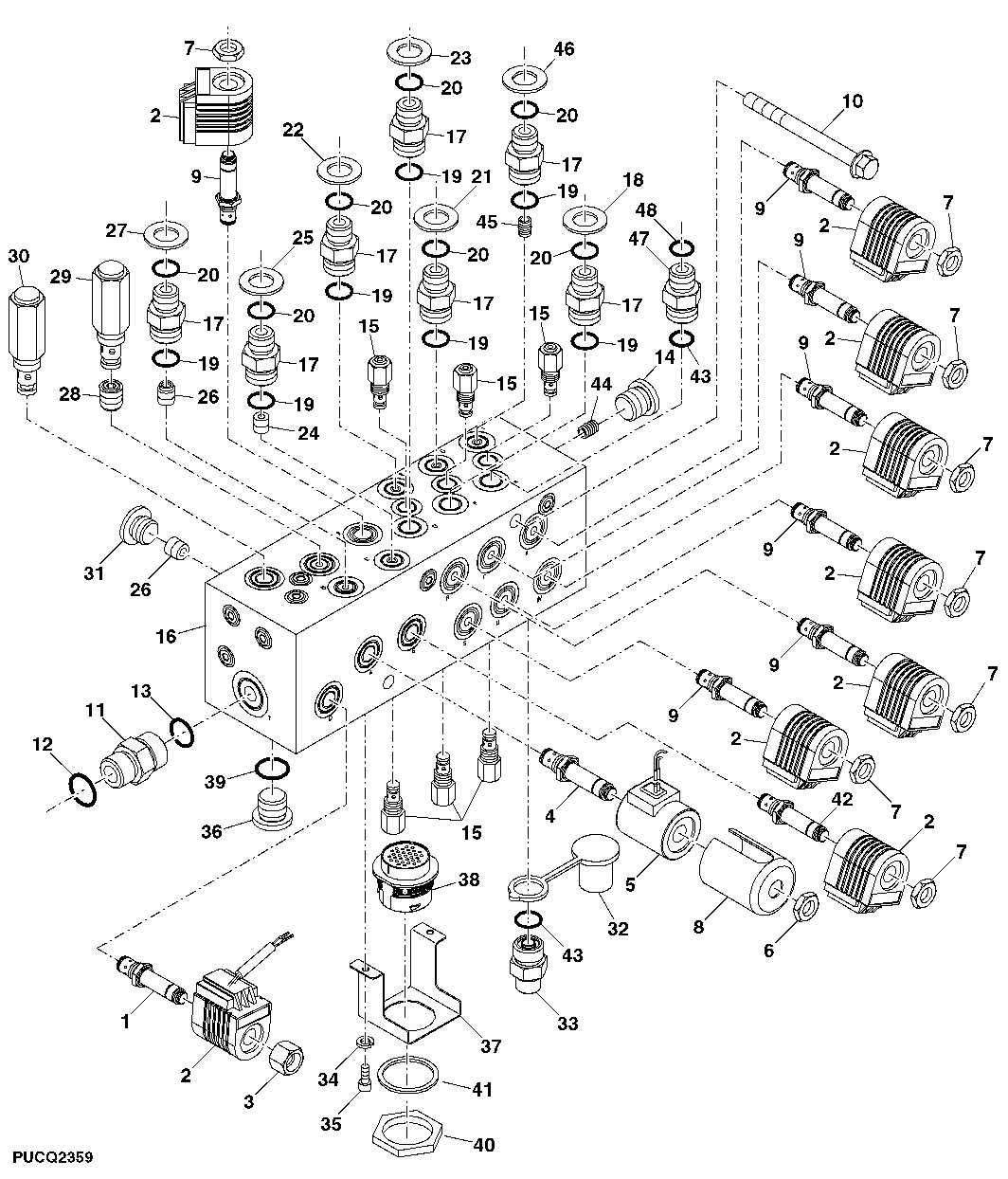

SIX-FUNCTION HYDRAULIC VALVE BLOCK ( - 090431)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE38513	1	Solenoid Valve	SUB FOR AH213967
2	AH219066	7	Solenoid Valve Coil	-
3	H219516	1	Nut	-
4	AH218991	1	Solenoid Valve	-
5	AH220427	1	Solenoid Valve Coil	-
6	A4655R	1	Nut	-
7	R109691	1	Nut	-
8	E62942	1	Cover	-
9	AH213964	1	Solenoid Valve	-
10	19M7836	2	Screw	M10 X 110
11	38H1162	2	Adapter Fitting	-
12	T77932	2	O-Ring	-
13	R26906	2	O-Ring	-
14	R96705	1	Fitting Plug	-
15	AH218992	6	Piston Kit	(GUIDE)
16	AH219057	1	Valve Stack	(INCL KEYS 14, 15, 24, 26, 28, 31 - 33 AND 36)
17	38H1160	1	Adapter Fitting	-
18	H170527	1	Washer	DARK BLUE
19	R26448	1	O-Ring	-
20	T77613	1	O-Ring	-
21	H170526	1	Washer	LIGHT BLUE
22	H170524	1	Washer	RED
23	H170525	1	Washer	ORANGE
24	H214690	1	Orifice	-
25	H170523	1	Washer	GREEN
26	H214693	2	Orifice	-
27	H170522	1	Washer	YELLOW
28	H219492	1	Orifice	-
29	AH213969	1	Pressure Relief Valve	-
30	DQ75469	1	Pressure Relief Valve	-
31	H178788	1	Drain Plug	-
32	R77175	1	Cover	-
33	XPD341	1	Diagnostic Coupling	-
34	12H302	2	Lock Washer	1/4"
35	19H3753	2	Screw	1/4" X 1/2"
36	L41709	1	Pipe Plug	-
37	H219659	1	Bracket	-
38	57M7666	1	Elec. Connector Housing	-
38	N282069	1	Elec. Connector Terminal	-
39	51M7041	1	O-Ring	11.300 X 2.200 mm
40	57M8035	1	Nut	-
41	57M9061	1	Elec.Connect Locking Device	-
42	AH213966	1	Solenoid Valve	-
43	R28782	3	O-Ring	-
44	CQ75393	1	Orifice	-
45	H219491	1	Orifice	-
46	H170528	1	Washer	-
47	38H1159	1	Adapter Fitting	-
48	T77814	1	O-Ring	-
..	AH218994	1	Seal Kit	(USE WITH AH213964)
..	AH218993	1	Seal Kit	(USE WITH AH218991 OR AH213966)
..	DQ75146	1	Valve Stack	-
