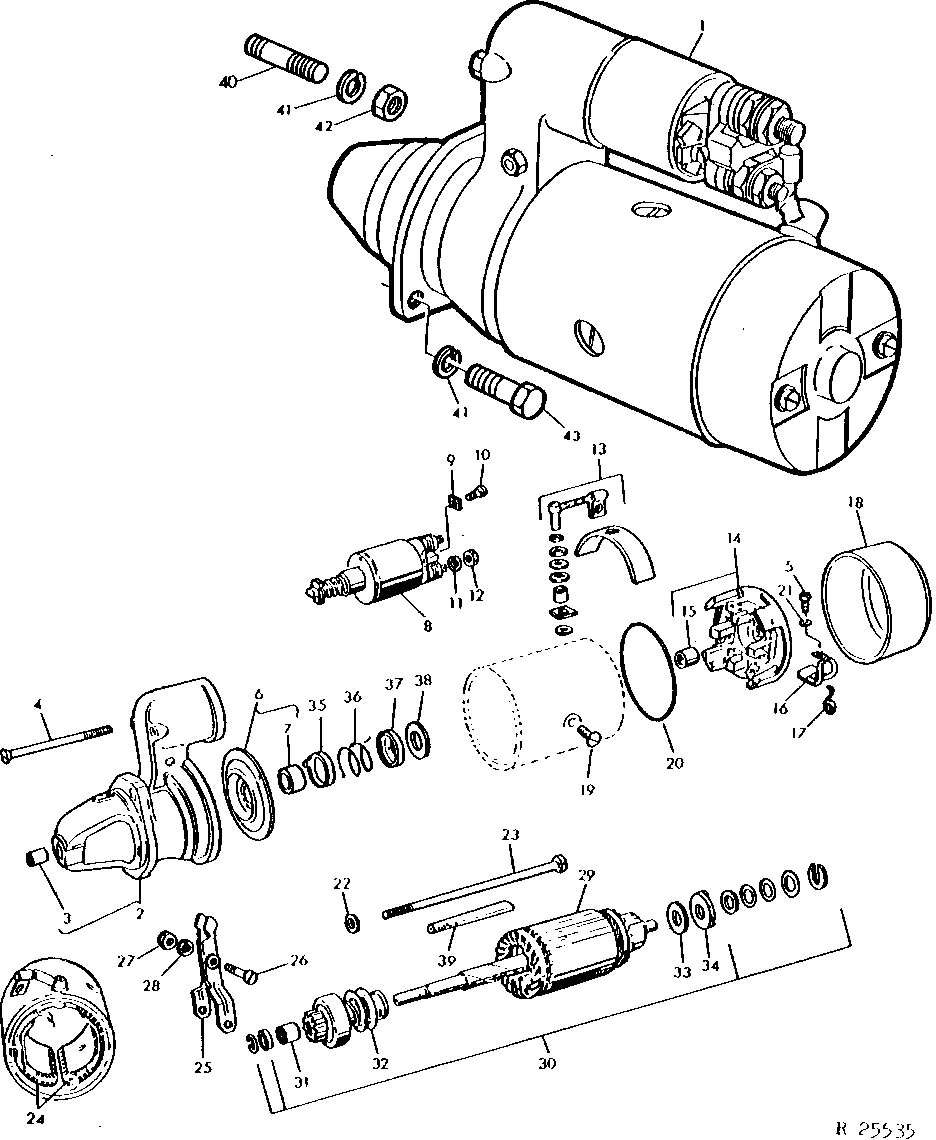

STARTING MOTOR (ROBERT BOSCH) (AR70436) [01G03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY6720	1	STARTER MOTOR	(REMANUFACTURED) (SUB FOR TY6615)
1	AR70436	1	STARTER MOTOR	(R. BOSCH NO. 001359090) (SUB TY6720)
2	AL25266	1	HOUSING	-
3	AL70854	1	Alternator Kit	(SUB FOR L19651)
4	L30860	3	SCREW	-
5	21M7198	1	Screw	M5 X 8, (SUB FOR T24225)
6	AL25267	1	BEARING HOUSING W/O BEARING	-
7	L30862	1	BUSHING	-
8	AL55046	1	SOLENOID	(SUB FOR AL25268)
9	L29156	1	CLAMP	(NLA)
10	21M1211	1	SCREW	M4 X 6
11	12M7013	2	LOCK WASHER	10.200 MM
12	14M7152	4	Nut	M10
13	AL25269	1	KIT	(SUB FOR AL23847)
14	AL25270	1	COMMUTATOR HOUSING	-
15	Z24799	1	BUSHING	-
16	AL25271	1	CARBON BRUSH HOLDER	-
17	Z24810	4	COMPRESSION SPRING	(SUB L41579)
18	L29158	1	COVER	-
19	L29157	1	SCREW	-
20	Z24801	1	O-RING	-
21	12M7064	1	Lock Washer	M5
22	24M7088	1	Washer	6.600 X 12 X 1.600 MM, (SUB FOR L30863)
23	L29152	1	SCREW	-
24	AL25272	1	FIELD WINDING COIL	-
25	AL25273	1	LEVER	-
26	T27671	1	SCREW	-
27	14M7151	1	Nut	M8
28	12M7065	1	Lock Washer	M8
29	AL25274	1	ARMATURE	-
30	AL23848	1	ARMATURE	HARDWARE KIT
31	Z24800	1	BUSHING	(USE WITH AR70436)
32	AL25275	1	DRIVE	-
33	L30869	1	DISK	(NO LONGER AVAILABLE)
34	L30868	1	THRUST WASHER	-
35	L30864	1	GUIDE	-
36	L30865	1	SPRING	(SUB L41579)
37	L30866	1	GUIDE	(SUB L41579)
38	L30867	1	BRAKE DISK	(SUB L41579)
39	L30861	2	PIPE	INSULATION (NO LONGER AVAILABLE)
40	M3636T	1	STUD	3/8" X 1-1/2"
41	12H304	2	Lock Washer	3/8"
42	14H1076	1	Nut	3/8"
43	19H1731	1	Cap Screw	3/8" X 1"

STARTING MOTOR (ROBERT BOSCH) (AR70436) [01G03]
