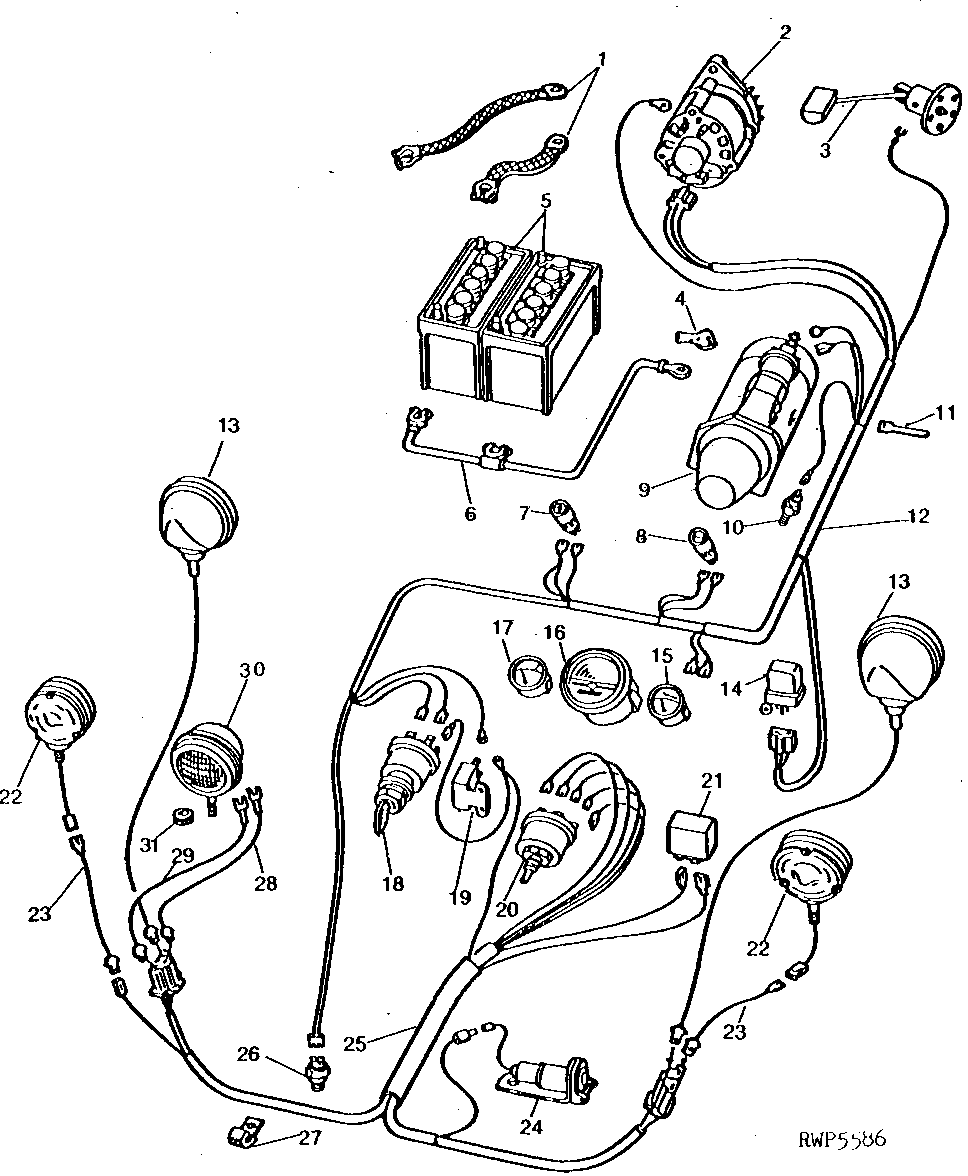

ELECTRICAL WIRING SYSTEM [01E15]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT18702	2	GROUND CABLE	(DUAL BATTERIES) (SUB FOR AT20749)
1	AL11176	1	Ground Cable	(SINGLE BATTERY)
2	AR62401	1	ALTERNATOR	(28 AMP) (SUB AL36391)
2	TY25948	1	ALTERNATOR	(28 AMP) (SUB FOR TY6605 OR TY6651) (INCLUDES REGULATOR)
2	AL36391	1	REGULATOR	(55 AMP) (SUB FOR AR62401)
2	AL81436	1	Alternator	(55 AMP) (SUB FOR AL35998 OR AL67175)
2	TY25953	1	ALTERNATOR	(55 AMP) (SUB FOR TY6791 OR TY6652) (INCLUDES REGULATOR)
2	SE501344	1	Alternator Reman	(REMAN FOR AL36391 OR TY25948)
2	SE501346	1	Alternator Reman	(REMAN FOR AL81436 OR TY25953)
3	AT31619	1	FLOAT	-
4	L12809	1	Elec. Connector Accessory	-
5	TY21730	1	DRY CHARGED BATTERY	(12-VOLT) (SUB FOR AR67338)
6	AR53999	1	CABLE	(DUAL BATTERIES)
6	AR103525	1	BATTERY CABLE	(SINGLE BATTERY) (SUB FOR T21887)
7	AT24692	1	INDICATOR LAMP	ALTERNATOR
7	AR65446	1	LAMP	(SUB AR55694, AT44165, AT18673 AND R30378)
8	AT24693	1	INDICATOR LAMP	(ENGINE OIL PRESSURE)
8	AR65447	1	INDICATOR LIGHT	(ENGINE OIL PRESSURE) (SUB AT48674, AT44165, AR55694 AND R30378)
9	TY6727	1	STARTER MOTOR	(A) (REMANUFACTURED)
9	TY6720	1	STARTER MOTOR	(A) (REMANUFACTURED) (SUB FOR TY6615)
9	RE62690	1	STARTER MOTOR	(A) (SUB TY6727)
9	AR70436	1	STARTER MOTOR	(A) (SUB TY6720)
9	TY6702	1	STARTER MOTOR	(A) (REMANUFACTURED) (SUB FOR TY6620)
9	RE62916	1	Starter Motor Kit	(A) (SUB FOR AT25619, AT23401, RE19187, RE42730 OR RE50095)
9	AL41247	1	STARTER MOTOR	(A) (SUB TY6727)
10	AR27977	1	TOUCH SWITCH	PRESSURE ENGINE OIL
11	R44302	1	Tie Band	NYLON
12	AL24189	1	WIRING HARNESS	(ENGINE)
12	AR51338	1	WIRING HARNESS	(ENGINE)
13	AT20106	2	FLOODLAMP	FRONT
14	AT31413	1	VOLTAGE REGULATOR	-
15	AL24187	1	GAUGE	FUEL
15	AR65444	1	GAUGE	FUEL
16	AR65445	1	TACHOMETER	-
17	AT67693	1	TEMPERATURE GAUGE	WATER TEMPERATURE, (SUB FOR AR65448)
18	AR58126	1	Rotary Switch	START
19	AR28403	1	CIRCUIT BREAKER	-
20	AR66478	1	SWITCH	LIGHT
21	AU41465	1	Flasher	WARNING LAMP
22	AR50580	2	LAMP	WARNING
23	AR51403	2	WIRING LEAD	-
24	AT27009	1	Socket	(SUB AT20709, 12H301, 14H1040 AND 19H1131)
25	AL24215	1	WIRING HARNESS	DASH TO L.H. AND R.H. FENDER
26	RE38390	1	SWITCH	NEUTRAL START, (SUB FOR R36365, AR85323, AR89691 OR AT85153)
27	T13744	3	Clamp	-
28	AR51405	1	WIRING LEAD	-
29	AR51404	1	WIRING LEAD	-
30	AR77326	1	FLOODLAMP	(SUB FOR AT16288)
31	R26409	1	GROMMET	-
