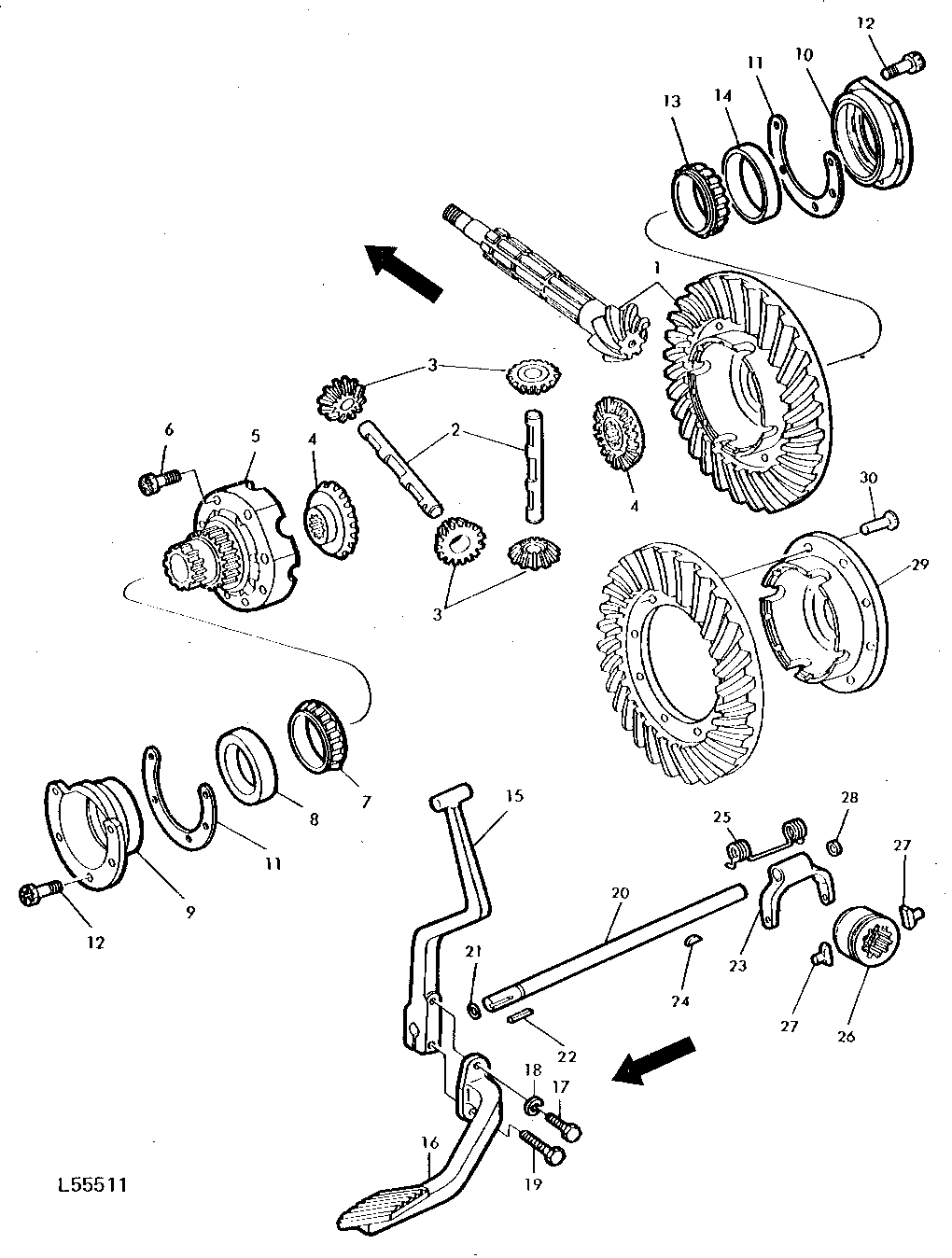

DIFFERENTIAL ASSEMBLY AND LOCK MECHANISM [01K01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT21623	1	DIFFERENTIAL	R.H. (43 TEETH) (INCLUDES T30253 AND T30254)
1	AT21620	1	DIFFERENTIAL	R.H. (35 TEETH) (INCLUDES T24382 AND 16H1592)
2	L29226	2	SHAFT	-
3	L29227	4	GEAR	-
4	T29394	2	BEVEL GEAR	(SUB (4) T118950 AND (2) T118949)
5	R51500	1	HOUSING	L.H.
6	T21430	8	CAP SCREW	-
7	JD8147	1	Bearing Cone	L.H.
8	JD7425	1	Bearing Cup	L.H.
9	T21433	1	BEARING HOUSING W/O BEARING	L.H.
10	T21458	1	BEARING HOUSING W/O BEARING	R.H. (USE WITH AT21620)
10	T21432	1	BEARING HOUSING W/O BEARING	R.H. (USE WITH AT21623)
11	T21434	1	SHIM	0.08 MM (.003")
11	T21435	1	SHIM	0.13 MM (.005")
11	T21436	1	SHIM	0.25 MM (.010")
12	T22874	10	BOLT	-
13	JD8946	1	Bearing Cone	R.H. (USE WITH AT21623)
13	JD8147	1	Bearing Cone	R.H. (USE WITH AT21620)
14	JD8206	1	Bearing Cup	R.H. (USE WITH AT21623)
14	JD7425	1	Bearing Cup	R.H. (USE WITH AT21620)
15	T27429	1	LEVER	-
16	T27430	1	PEDAL	-
17	19H1731	1	Cap Screw	3/8" X 1"
18	12H304	1	Lock Washer	3/8"
19	19H2665	1	Cap Screw	3/8" X 1-5/8", (USE WITH AT21620)
20	T21839	1	SHAFT	(ALSO ORDER R28776) (SUB FOR L29404)
21	L29406	1	O-RING	(USE WITH SHAFT WITH (2) WOODRUFF KEYWAYS)
21	R28776	1	O-Ring	(USE WITH SHAFT WITH (1) WOODRUFF KEYWAY)
22	H410R	1	SHAFT KEY	-
23	T21840	1	YOKE	-
24	26H77	2	Shaft Key	3/16" X 3/4"
25	T24522	1	SPRING	-
25	26H77	1	Shaft Key	3/16" X 3/4"
26	R51501	1	SHIFT COLLAR	-
27	T21841	2	Shoe	-
28	T18891	1	Plug	-
29	T24382	1	HOUSING	R.H. (USE WITH AT21620)
29	T30253	1	HOUSING	R.H. (USE WITH AT21623)
30	T30254	8	RIVET	(USE WITH T30253)
30	16H1592	8	RIVET	7/16" X 1-3/4", (USE WITH T24382)

DIFFERENTIAL ASSEMBLY AND LOCK MECHANISM [01K01]
