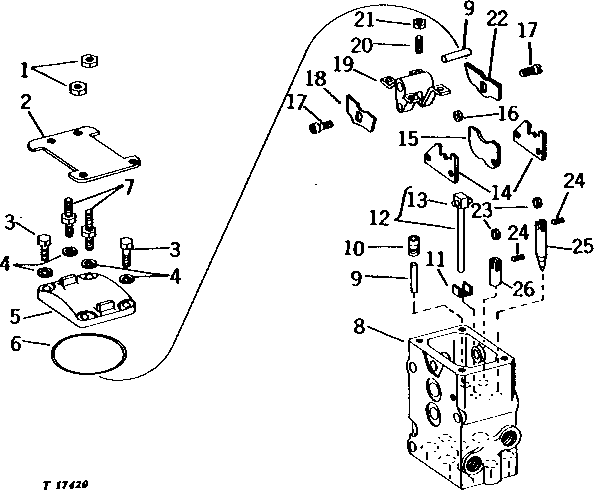

SELECTIVE CONTROL VALVE (UPPER HALF) (TRACTOR SERIAL NO. -079541) (TRACTOR SERIAL NO. 080051-080196) [02H13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H732	2	Nut	3/8"
2	T22996	1	ADJUSTING STRAP	-
3	19H1731	2	Cap Screw	3/8" X 1"
4	12H304	4	Lock Washer	3/8"
5	R27593	1	COVER	(SUB R49186 AND R49187)
6	R26544	1	SEAL	-
7	R39225	2	Stud	-
8	AR40824	1	HOUSING	(MARKED R41197) (SUB FOR AR35823)
9	R28744	2	Pin	-
10	AR78483	1	GUIDE	(SUB FOR AR31703)
11	R28635	1	CLIP	-
12	AR27867	1	GUIDE	-
13	R28634	1	Pin	-
14	R32389	2	DETENT	(SUB FOR AR31813)
15	R26978	1	CAM	-
16	R51409	1	SPACER	(SUB FOR R26980 OR R41613)
17	R27233	2	SCREW	-
18	R51415	1	CAM	LOWER, (SUB FOR R27589 OR R41932) (SUB AR253733)
19	R27587	1	ROCKER	-
20	22H1012	4	SET SCREW	1/4" X 3/4"
21	14H850	4	NUT	1/4"
22	R51414	1	CAM	UPPER, (SUB FOR R41931) (SUB AR253731)
23	R51409	4	SPACER	(SUB FOR R41613)
24	34H241	4	Spring Pin	1/8" X 3/8"
25	R27678	2	FOLLOWER	RETURN VALVE
26	R26982	2	CAM FOLLOWER	PRESSURE VALVE
..	AR39142	1	KIT	SINGLE SELECTIVE CONTROL VALVE, (SUB AR39144, AR26697, (2) R26149, (5) R26375 AND R26544)
..	AR39143	1	KIT	DUAL SELECTIVE CONTROL VALVE, (SUB AR26697, AR41102, (2) R26149, (5) R26375 AND R26544)

SELECTIVE CONTROL VALVE (UPPER HALF) (TRACTOR SERIAL NO. -079541) (TRACTOR SERIAL NO. 080051-080196) [02H13]

Нет текстового описания
