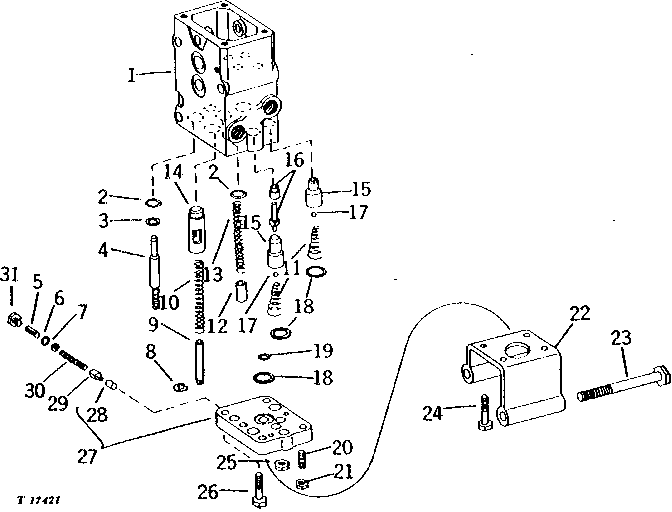

SELECTIVE CONTROL VALVE (LOWER HALF) (TRACTOR SERIAL NO. -079541) (TRACTOR SERIAL NO. 080051-080196) [02H14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR40824	1	HOUSING	(MARKED R41197) (SUB FOR AR35823)
2	R394R	2	O-Ring	-
3	R26551	1	BACK-UP RING	-
4	R27231	1	VALVE	-
5	34H247	1	Spring Pin	1/8" X 3/4"
6	R26287	1	O-Ring	-
7	R26478	1	SHIM	0.51MM (.020")
7	R26479	1	SHIM	0.76MM (.030")
8	R72653	1	Snap Ring	(SUB FOR M2396T)
9	R26822	1	PIN FASTENER	-
10	R26974	1	SPRING	-
11	R26565	4	COMPRESSION SPRING	-
12	R28563	1	PIN	-
13	R42334	1	SPRING	-
14	R27489	1	VALVE	-
15	R28124	4	VALVE	(USE WITH AR40824)
15	R41175	4	VALVE	(USE WITH AR40824)
16	AR31820	2	VALVE	(SUB AR40744 AND R32412)
17	400R	4	Ball	6MM (1/4")
18	R26149	5	PACKING	-
19	A4365R	1	O-Ring	-
20	22H1012	1	SET SCREW	1/4" X 3/4"
21	14H850	1	NUT	1/4"
22	AR39095	1	BRACKET	(NLA)
23	19H3597	2	CAP SCREW	1/2" X 4-3/4"
24	19H3552	4	Cap Screw	5/16" X 1-1/2"
25	14H774	1	Nut	3/8"
26	19H1849	2	Cap Screw	5/16" X 1-1/4"
27	AR31663	1	COVER	(MARKED R32411)
28	R27211	1	VALVE SEAT	-
29	R55678	1	PRESSURE RELIEF VALVE	(SUB FOR R31565)
30	R26477	1	SPRING	-
31	R27216	1	DRAIN PLUG	-
..	AR39142	1	KIT	SINGLE SELECTIVE CONTROL VALVE, (SUB AR39144, AR26697, (2) R26149, (5) R26375 AND R26544)
..	AR39143	1	KIT	DUAL SELECTIVE CONTROL VALVE, (SUB AR26697, AR41102, (2) R26149, (5) R26375 AND R26544)
