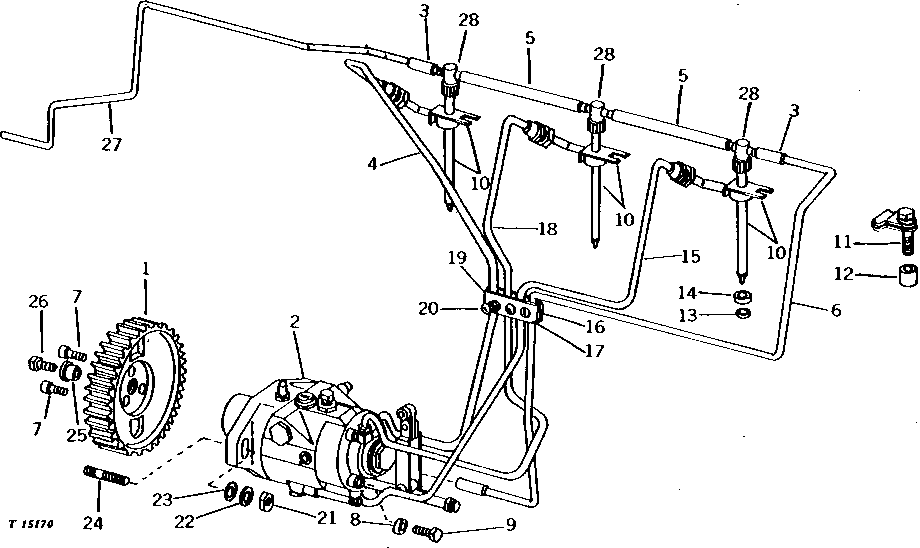

ROOSA-MASTER FUEL INJECTION SYSTEM (DIESEL) (ENGINE SERIAL NO. -117499) [01E05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T24772	1	GEAR	(48 TEETH)
2	-	1	Part 2	(A) (ROOSA-MASTER NO. CDC331-7DG) (MARKED AT28440) (ORDER AR69818, AR69809, AR50894, AR50895, AT27615 AND R48126)
2	AT29725	1	FUEL INJECTION PUMP	(A) (ROOSA-MASTER NO. CBC331-3AL) (ORDER AR69818, AR69809, AR50894, AR50895, AT27615 AND R48126)
3	-	3	Part 4	35MM (1.40") (MAKE FROM AT32064)
4	AT24515	1	FUEL LINE	NO. 1
5	-	2	Part 6	113MM (4.43") (MAKE FROM AT32064)
6	T29529	1	FUEL LINE	LEAK-OFF (NLA)
7	T26497	1	SCREW	-
8	T20055	6	WASHER	-
9	R41680	3	SCREW	-
10	AR88239	3	INJECTION NOZZLE	(SUB FOR AR56290, AR73673, AT25502, AT30299 OR AR49877) (SUB AR89564)
11	R34760	3	CLAMP	-
12	R34761	3	SPACER	-
13	R48000	3	Seal	(SUB FOR R34767)
14	R34764	3	WASHER	-
15	AT24517	1	FUEL LINE	NO. 3
16	T23463	1	STRAP	(SUB (2) R59299, R59300, R61146 AND (3) AR76704)
17	T23462	1	CLAMP	(SUB (2) R59299, R59300, R61146 AND (3) AR76704)
18	AT24516	1	FUEL LINE	NO. 2
19	12H246	3	LOCK WASHER	0.190"
20	21H1317	3	SCREW	0.190" X 5/8"
21	14H785	2	Nut	5/16"
22	12H303	2	Lock Washer	5/16"
23	24H1685	2	Washer	11/32" X 47/64" X 0.083"
24	T25813	2	STUD	-
25	T26496	1	ROUND RETAINER	-
26	19H2948	1	SCREW	1/4" X 0.380"
27	T27474	1	TUBE	LEAK-OFF
27	T31145	1	TUBE	LEAK-OFF
28	AT27622	3	CAP	-

ROOSA-MASTER FUEL INJECTION SYSTEM (DIESEL) (ENGINE SERIAL NO. -117499) [01E05]
