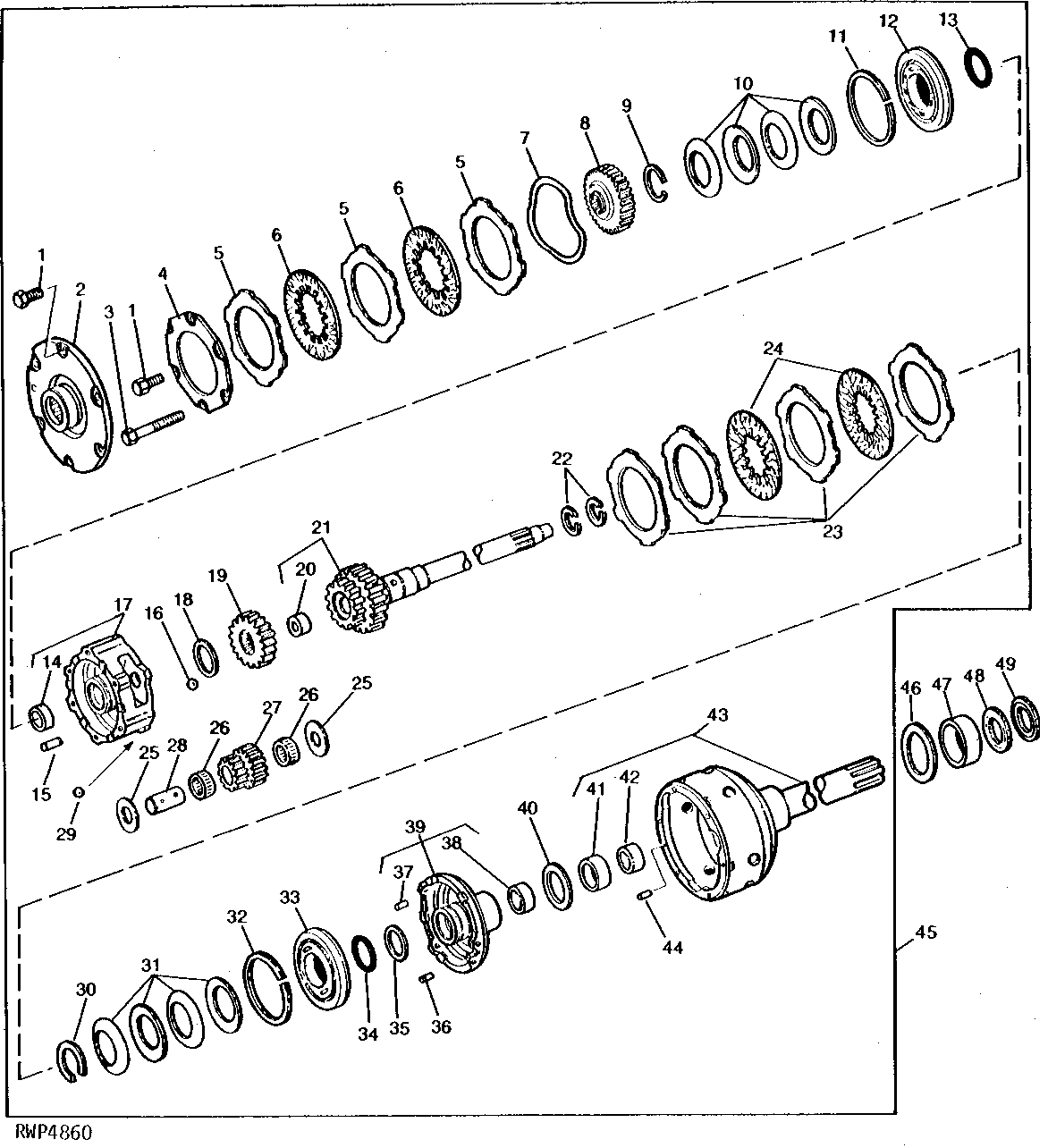

REPLACEMENT HI-LO CLUTCH ASSEMBLY (HI-LO SHIFT) [02C13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1813	9	CAP SCREW	5/16" X 5/8"
2	R39238	1	COVER	-
3	19H1897	3	Cap Screw	5/16" X 3-3/4"
4	R39260	1	PLATE	(SUB RE228008, THIS APPLICATION)
5	R64197	3	Clutch Plate	(SUB RE228008, THIS APPLICATION)
6	AR78361	2	DISK WITH INNER SPLINE	(SUB RE228008, THIS APPLICATION)
7	R63452	1	SPRING	-
8	R52378	1	SPLINED COUPLING	-
9	R39299	1	Snap Ring	-
10	R39282	4	DISK SPRING	-
11	R39280	1	Piston Ring	-
12	R52384	1	PISTON	-
13	R39304	1	Washer	-
14	R39247	1	BUSHING	-
15	R56457	1	DOWEL PIN	-
16	H871R	3	Ball	-
17	AR85744	1	PLANET PINION CARRIER	(MARKED R52376)
18	R65390	1	THRUST WASHER	(SUB FOR R39193) (SUB R278348)
19	R52380	1	SUN GEAR	-
20	R39276	1	BUSHING	-
21	AR61403	1	DRIVE SHAFT	(MARKED R54062)
22	R26753	2	RING	-
23	R64197	4	Clutch Plate	(SUB RE228008, THIS APPLICATION)
24	AR78361	2	DISK WITH INNER SPLINE	(SUB RE228008, THIS APPLICATION)
25	R52383	6	THRUST WASHER	-
26	JD9927	6	NEEDLE BEARING	-
27	R52381	3	PLANET PINION	-
28	R52382	3	PIN	-
29	H871R	3	Ball	-
30	R39299	1	Snap Ring	-
31	R39282	4	DISK SPRING	-
32	R39280	1	Piston Ring	-
33	R39285	1	Piston	-
34	R39304	1	Washer	-
35	R65390	1	THRUST WASHER	(SUB FOR R39193) (SUB R278348)
36	R56457	2	DOWEL PIN	-
37	R56457	1	DOWEL PIN	-
38	R39252	1	BUSHING	-
39	AR56772	1	DRUM	(MARKED R52265)
40	R65392	1	WASHER	(SUB FOR R39281) (SUB R278349)
41	R39265	1	BUSHING	-
42	AR39117	1	SEAL	-
43	AR39115	1	SHAFT	-
44	B2641R	1	DOWEL PIN	-
45	AR82016	1	HIGH-LOW CLUTCH	(SUB FOR AR39104 OR AR61399)
46	R73701	1	WASHER	(SUB FOR T25409 OR R65391)
47	L29343	1	BUSHING	(SUB FOR T25404 OR T28804)
48	T22198	1	SEAL	-
49	JD10107	1	BALL BEARING	(SUB FOR JD8511, JD9464, AL24903 OR AL28037)

REPLACEMENT HI-LO CLUTCH ASSEMBLY (HI-LO SHIFT) [02C13]
