Открытый узел

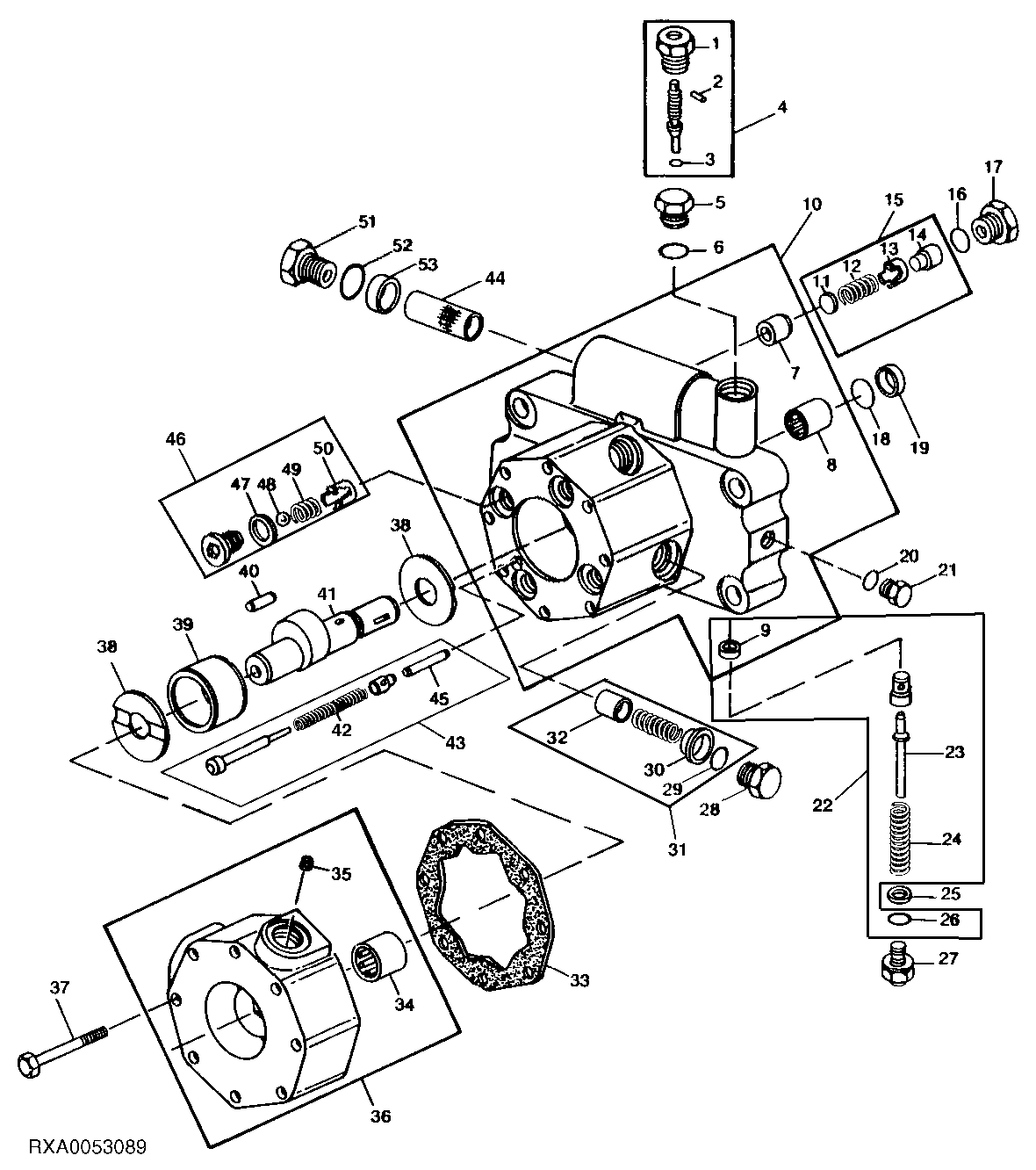

HYDRAULIC PUMP - MODEL AA1 11 CM3 (0.69 IN.3) (REPLACEMENT PUMP FOR MANUAL STEERING) [02F11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R38053	1	DRAIN PLUG	-
2	34H254	1	Spring Pin	1/8" X 1-1/2"
3	R30903	1	O-Ring	-
4	AR38225	1	Hydraulic Pump	(MANUAL DESTROKE)(OPTIONAL)
5	R39112	1	Fitting	(USE WITHOUT MANUAL DESTROKE)
6	R26375	1	O-Ring	-
7	R105583	4	Valve Seat Insert	(SUB FOR R39067)
8	JD9858	1	NEEDLE BEARING	-
9	R72936	1	VALVE SEAT INSERT	(SUB FOR R69302) (SUB AL71019)
10	AR89076	1	HOUSING	(MARKED R68386)
11	R49297	4	DISK	-
12	R39228	4	SPRING	-
13	R48738	4	GUIDE	-
14	R83508	4	Stop	(SUB FOR R49298 OR R72886)
15	RE23382	4	Valve	(OUTLET) (SUB FOR AR52785 OR AR96613)
16	R26375	8	O-Ring	-
17	R39112	8	Fitting	-
18	R63605	1	O-RING	-
19	AR39052	1	SEAL	-
20	R26286	1	O-Ring	-
21	R27094	1	Drain Plug	-
22	AL71019	1	Valve Kit	(SUB FOR R68384)
23	R68383	1	GUIDE	(SUB AL71019 AND AR103040)
23	R76167	1	GUIDE	(SUB AL71019)
24	R39240	1	SPRING	-
25	24M7096	1	Washer	10.500 X 18 X 1.600 MM
26	R26906	1	O-Ring	-
27	AR89073	1	ADJUSTER	(SUB AR103040 AND R76167)
27	AR103040	1	SCREW	-
28	R39112	4	Fitting	-
29	R26375	4	O-Ring	-
30	AR101238	1	SHIELD	(SET OF 8)
31	AL71018	1	Piston Kit	(SET OF 8) (4 USED) (SUB FOR AR39041)
32	R63022	4	PISTON	(ALSO ORDER R63629)
33	L62442	1	Gasket	(SUB FOR R59234)
34	JD9858	1	NEEDLE BEARING	-
35	R39321	1	ORIFICE	-
36	AR90453	1	COVER	(MARKED R39318, R68380 OR R81065)
37	19H1944	8	Cap Screw	3/8" X 2-3/4"
38	R66164	2	THRUST WASHER	-
39	R63629	1	BEARING RACE	(ALSO ORDER (4) R63022)
40	R39073	33	NEEDLE ROLLER	-
41	R39319	1	SHAFT	-
42	R68390	1	SPRING	-
43	AL71017	1	Valve Kit	(SUB FOR R39181)
44	AL71019	1	Valve Kit	(SUB FOR R38048, R40756 OR R68384)
45	R39179	1	NEEDLE ROLLER	-
46	AL71016	4	Valve Kit	(SUB FOR R68553)
47	R26375	4	O-Ring	-
48	D2361R	4	Ball	-
49	R39078	4	Spring	-
50	R39076	4	Guide	-
51	R39112	1	Fitting	(B)
52	R26375	1	O-Ring	(B)
53	R68382	2	PACKING	(B)
54	R68381	1	FILTER	(B)
..	AL70641	1	Hydraulic Pump	(SUB FOR AR39018, AR39167, AR89063 OR AR103034)
..	AL70641	1	Hydraulic Pump	(A) (SUB FOR AR39018, AR39167, AR89063 OR AR103034)

HYDRAULIC PUMP - MODEL AA1 11 CM3 (0.69 IN.3) (REPLACEMENT PUMP FOR MANUAL STEERING) [02F11]
