Открытый узел

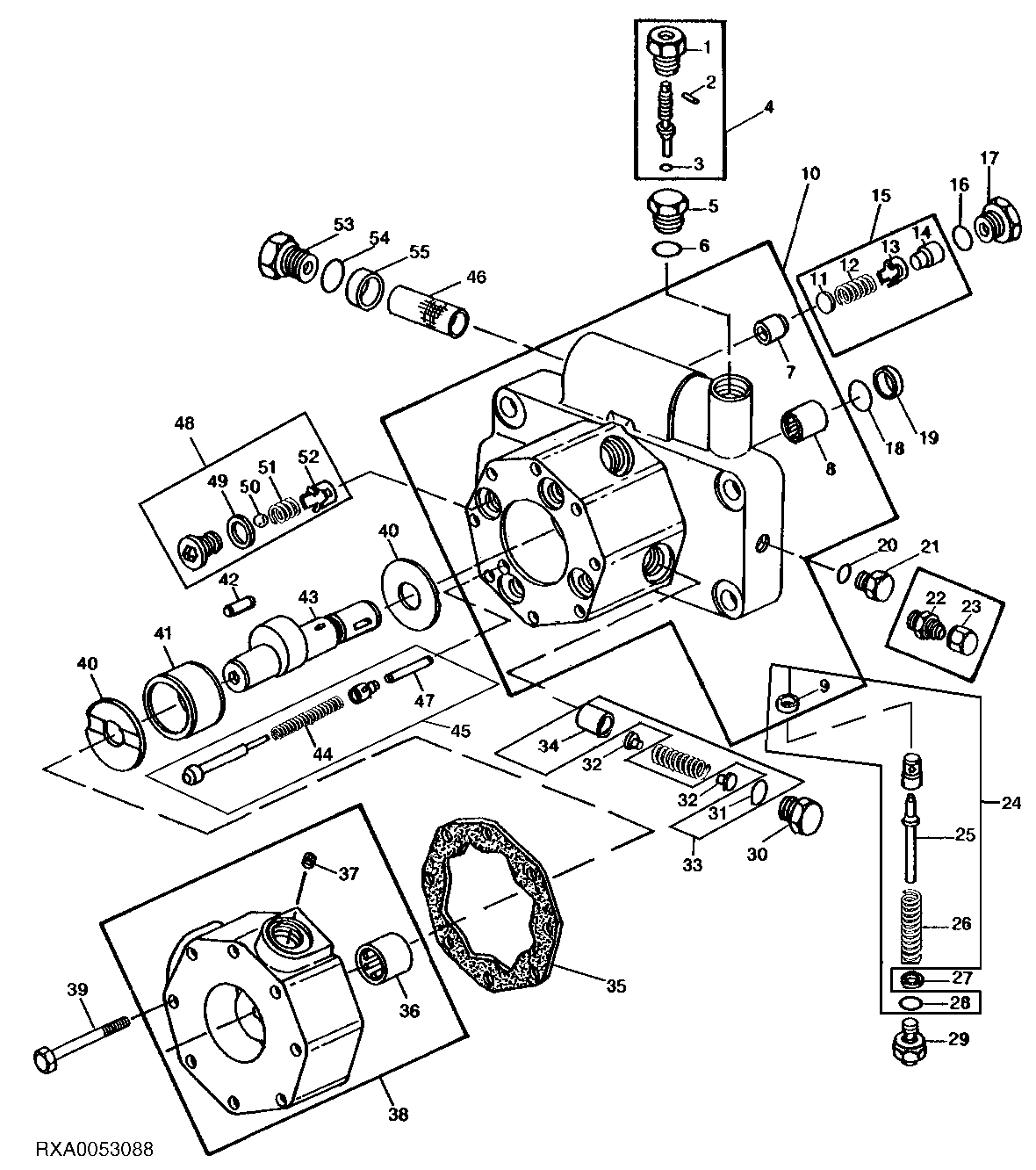

HYDRAULIC PUMP - 11 CM3 (0.69 IN.3) (MANUAL STEERING) [02F09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R38053	1	DRAIN PLUG	-
2	34H254	1	Spring Pin	1/8" X 1-1/2"
3	R30903	1	O-Ring	-
4	AR38225	1	Hydraulic Pump	(MANUAL DESTROKE)(OPTIONAL)
5	R39112	1	Fitting	(USE WITHOUT MANUAL DESTROKE)
6	R26375	1	O-Ring	-
7	R105583	4	Valve Seat Insert	-
8	R39310	1	BUSHING	(USE WITH R39172)
8	JD9858	1	NEEDLE BEARING	(USE WITH R39316)
9	R72936	1	VALVE SEAT INSERT	(SUB FOR R38041, R68502 OR R69302) (SUB AL71019)
10	AR89077	1	HOUSING	(MARKED R39172 OR R68387) (IF MARKED R39172 ALSO ORDER (2) R68382, R68381, R39112 AND R26375) (SUB FOR AR39021 OR AR39049) (NLA)
10	AR89076	1	HOUSING	(MARKED R39316 OR R68386) (IF MARKED R39316 ALSO ORDER (2) R68382, R68381, R39112 AND R26375) (SUB FOR AR39169)
11	R49297	4	DISK	(SUB FOR R39074)
12	R39228	4	SPRING	-
13	R48738	4	GUIDE	(SUB FOR R39174)
14	R83508	4	Stop	(SUB FOR R39175, R49298 OR R72886)
15	RE23382	4	Valve	(OUTLET) (SUB FOR AR52785 OR AR96613)
16	R26375	8	O-Ring	-
17	R39112	8	Fitting	-
18	R39182	1	RING	-
19	AR39052	1	SEAL	-
20	R26286	1	O-Ring	-
21	R27094	1	Drain Plug	-
22	R27272	1	Fitting	-
23	R36926	1	FITTING	-
24	AL71019	1	Valve Kit	(SUB FOR R38048, R40756 OR R68384)
25	R68383	1	GUIDE	(SUB AL71019 AND AR103040) (SUB FOR R39242)
26	R39240	1	SPRING	(SUB FOR R38049)
27	24M7096	1	Washer	10.500 X 18 X 1.600 MM
28	R26906	1	O-Ring	-
29	AR39106	1	SCREW	(SUB AR103040 AND R76167) (SUB FOR AR39035)
30	R39112	4	Fitting	-
31	R26375	4	O-Ring	-
32	R39070	8	GUIDE	-
33	AL71018	1	Piston Kit	(SET OF 8) (4 USED) (SUB FOR AR39041)
34	R63022	4	PISTON	(ALSO ORDER R63629) (SUB FOR R39068) (ALSO ORDER R63629)
35	L62442	1	Gasket	(SUB FOR R39178 OR R59234)
36	R39310	1	BUSHING	(USE WITH R39172)
36	JD9858	1	NEEDLE BEARING	(USE WITH R39316)
37	R39321	1	ORIFICE	-
38	AR39051	1	COVER	(MARKED R39176)
38	AR90453	1	COVER	(MARKED R39318 OR R81065) (SUB FOR AR39173)
39	19H1944	8	Cap Screw	3/8" X 2-3/4"
40	R66164	2	THRUST WASHER	(SUB FOR R39016)
41	R63629	1	BEARING RACE	(ALSO ORDER (4) R63022) (SUB FOR R39017)
42	R39073	33	NEEDLE ROLLER	-
43	R39319	1	SHAFT	(USE WITH R39316)
43	R39177	1	SHAFT	(USE WITH R39172)
44	R68390	1	SPRING	(SUB FOR R31630)
45	AL71017	1	Valve Kit	(SUB FOR R39181)
46	R27173	1	FILTER ELEMENT	(USE WITH R39172 OR R39316)
47	R39179	1	NEEDLE ROLLER	-
48	AL71016	4	Valve Kit	(SUB FOR R39075 OR R68553)
49	R26375	4	O-Ring	-
50	D2361R	4	Ball	-
51	R39078	4	Spring	-
52	R39076	4	Guide	-
53	R27175	1	Drain Plug	(USE WITH R39172 OR R39316)
54	F3171R	1	O-Ring	(USE WITH R39172 OR R39316)
55	R27174	2	PACKING	(USE WITH R39172 OR R39316)
..	AL70641	1	Hydraulic Pump	(SUB FOR AR39018)
..	AL70641	1	Hydraulic Pump	(SUB FOR AR39018, AR103034 OR AR39167)

HYDRAULIC PUMP - 11 CM3 (0.69 IN.3) (MANUAL STEERING) [02F09]
