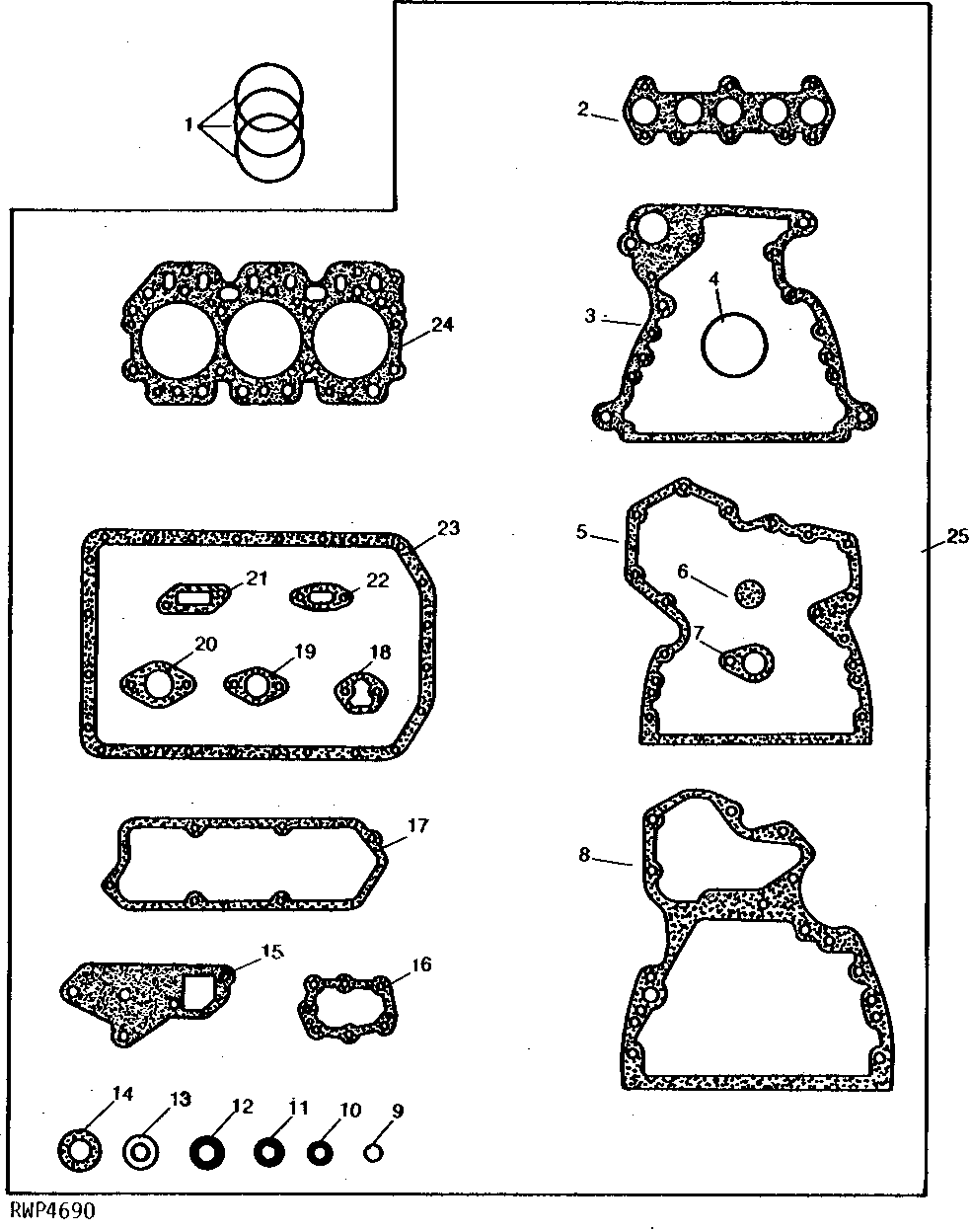

ENGINE OVERHAUL GASKET KIT (GASOLINE) [01C18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR71618	3	KIT	-
2	R98843	1	GASKET	ENGINE MANIFOLD, (SUB FOR T20206)
3	R97351	1	Gasket	FLYWHEEL HOUSING, (SUB FOR T23596 OR R70483)
4	T20232	1	WASHER	GOVERNOR HOUSING
5	T20154	1	GASKET	TIMING GEAR COVER
6	T20328	1	Gasket	OIL FILLER CAP
7	R98837	1	GASKET	EXHAUST MANIFOLD, (SUB FOR T20208)
8	R90648	1	GASKET	CYLINDER BLOCK PLATE, (SUB FOR T24965 OR R73140) (SUB R131794)
9	R27976	3	O-Ring	INTAKE VALVES
10	R74354	1	O-Ring	OIL PUMP OUTLET TUBE
11	T20304	1	WASHER	TACHOMETER DRIVE SHAFT
12	R56463	1	O-Ring	VENT TUBE OUTLET
13	T13213	1	WASHER	ALUMINUM, OIL DRAIN PLUG
14	T20112	1	GASKET	DISTRIBUTOR
15	T20239	1	GASKET	WATER PUMP COVER
15	T20243	1	Gasket	WATER PUMP COVER
16	T20273	1	GASKET	TIMING GEAR COVER OPENING COVER
17	R75729	1	Gasket	ROCKER ARM COVER, (ALSO ORDER (6) AR100124) (SUB FOR T20111 OR AR102261)
18	R97350	1	GASKET	FUEL PUMP, (SUB FOR R27285)
19	R98821	1	GASKET	CARBURETOR, (SUB FOR T10079)
20	T20215	1	GASKET	THERMOSTAT COVER
21	T20212	1	GASKET	THERMOSTAT HOUSING
22	R97352	1	Gasket	OIL FILTER INLET, (SUB FOR T20336)
23	R119359	1	Gasket	OIL PAN, (SUB FOR T24534)
24	R97356	1	ENGINE CYLINDER HEAD GASKET	CYLINDER HEAD, (SUB FOR R59447 OR R80241)
25	RE501582	1	GASKET KIT	(ALSO ORDER (3) AR71618 AND (6) AR100124) (SUB FOR AT29385, AR53368, AR71995, AR97186, AR102303, RE16915, RE38596 OR RE40429)

ENGINE OVERHAUL GASKET KIT (GASOLINE) [01C18]
