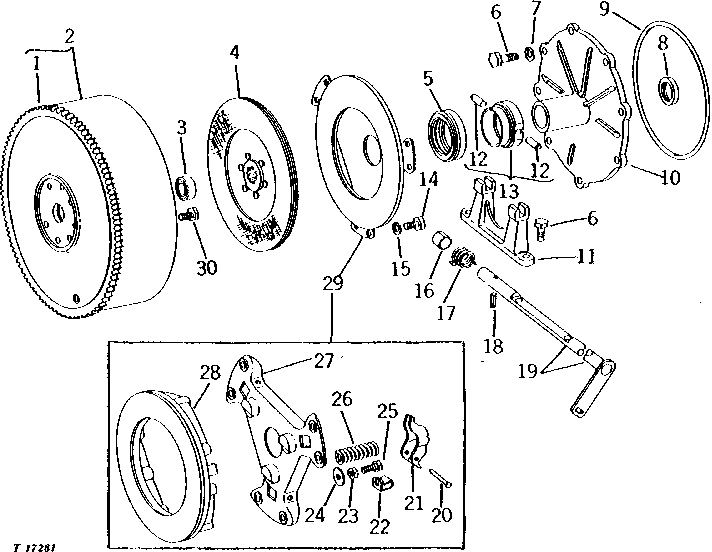

CLUTCH DISCONNECT AND FLYWHEEL (REVERSER) [02B15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20088	1	GEAR	(142 TEETH)
2	AT21044	1	FLYWHEEL	-
3	AL28037	1	BALL BEARING	(SUB FOR JD8511, AR56268 OR AL24903) (SUB JD10107, THIS APPLICATION)
4	AT21669	1	CLUTCH DISK	(DIESEL) (SUB AL24059)
4	AT21665	1	CLUTCH DISK	(GASOLINE)
5	AT17464	1	THRUST BEARING	-
5	AR43065	1	THRUST BEARING	(ALSO ORDER AT20055)
6	19H2552	10	CAP SCREW	3/8" X 1-1/8"
7	12H304	8	Lock Washer	3/8"
8	AF1934R	1	Seal	(SUB AR69708)
9	T22178	1	WASHER	-
10	T22177	1	SUPPORT	-
11	T22505	1	FORK	-
12	T22567	2	PIN FASTENER	-
13	AT20055	1	HOUSING	(SUB FOR AR55734)
14	L372T	6	CAP SCREW	-
15	12H303	6	Lock Washer	5/16"
16	R27320	1	BUSHING	-
17	T24948	1	SPRING	-
18	34H253	1	SPRING PIN	1/8" X 1-3/8"
19	AT20056	1	SHAFT	(SUB AT27717, T29581 AND T29582)
19	AT27717	1	SHAFT	-
20	T11700	3	PIN FASTENER	-
21	T63652	3	LEVER	(SUB FOR T11701)
22	T13267	3	CLIP	-
23	14H882	3	Nut	5/16"
24	T13269	3	WASHER	-
25	H61022	3	CAP SCREW	-
26	T24956	3	SPRING	-
27	H33689	1	BRACKET	-
28	T24955	1	CLUTCH PLATE	-
29	AT60368	1	CLUTCH PLATE	(SUB FOR AT22064 OR AR63785)
30	19H3385	4	Cap Screw	1/2" X 1-1/8"

CLUTCH DISCONNECT AND FLYWHEEL (REVERSER) [02B15]

Нет текстового описания
