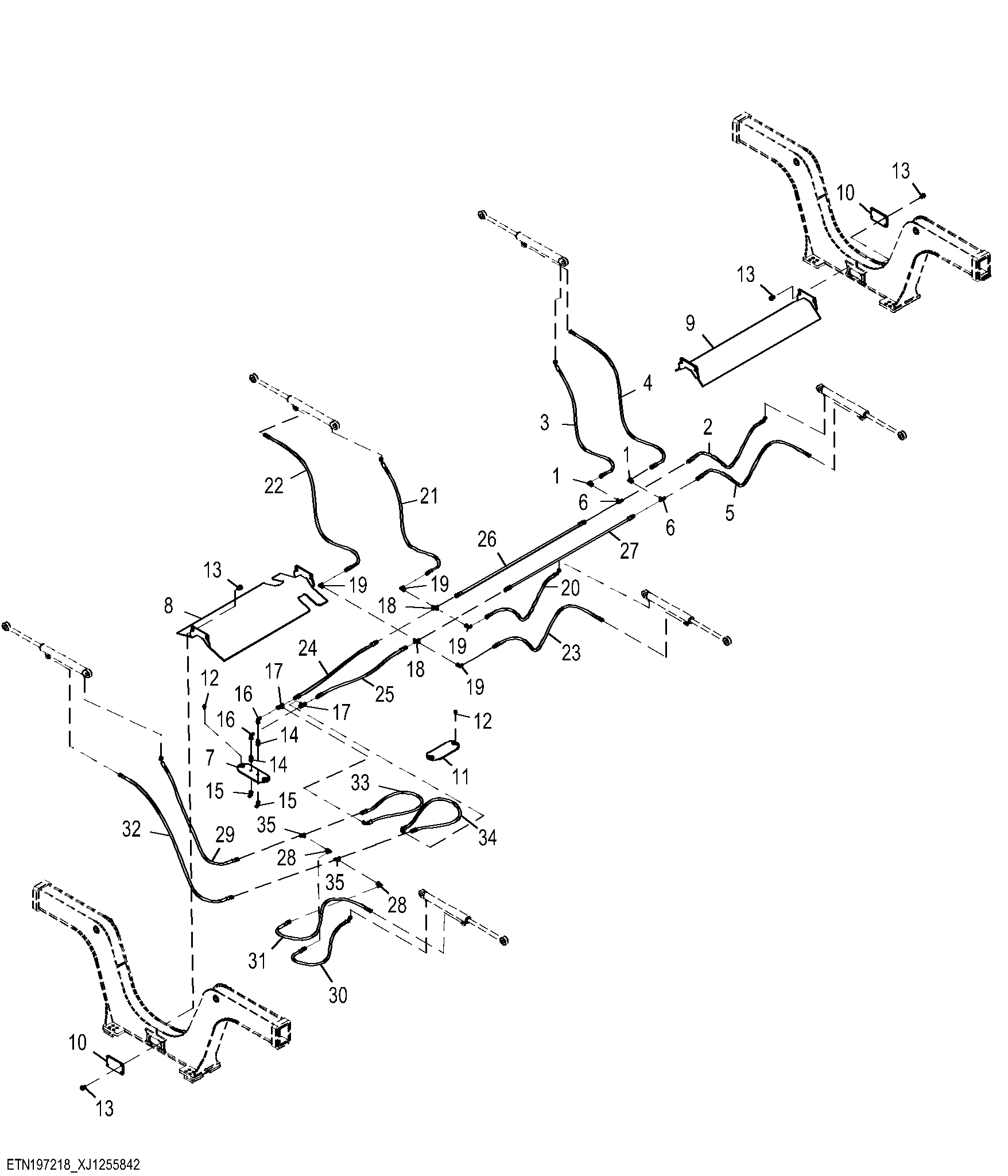

Bunk Hydraulic Lines and Covers, VLS, Extra Short Frame

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F022417	2	Elbow Fitting	-
2	F070631	1	Hydraulic Hose	LGTH = 1100 mm
3	F070631	1	Hydraulic Hose	LGTH = 1100 mm
4	F054362	1	Hydraulic Hose	LGTH = 1470 mm
5	F054362	1	Hydraulic Hose	LGTH = 1470 mm
6	F022422	2	T-CONNECTION	-
7	F701990	1	Cover	-
8	F702030	1	Cover	-
9	F702049	1	Cover	-
10	F702018	2	Plate	-
11	F702014	2	Cover	-
12	19M9568	6	Screw	M8 X 20
13	19M9570	16	Screw	M12 X 25
14	F024601	2	Fitting	-
15	F013594	2	Elbow Fitting	-
16	F022417	2	Elbow Fitting	-
17	F688366	2	Elbow Fitting	-
18	F024366	2	Fitting	-
19	F022417	4	Elbow Fitting	-
20	F070631	1	Hydraulic Hose	LGTH = 1100 mm
21	F070631	1	Hydraulic Hose	LGTH = 1100 mm
22	F054362	1	Hydraulic Hose	LGTH = 1470 mm
23	F054362	1	Hydraulic Hose	LGTH = 1470 mm
24	F072873	1	Hydraulic Hose	LGTH = 900 mm
25	F072873	1	Hydraulic Hose	LGTH = 900 mm
26	F058835	1	Hydraulic Hose	LGTH = 1300 mm
27	F058835	1	Hydraulic Hose	LGTH = 1300 mm
28	F022417	2	Elbow Fitting	-
29	F070631	1	Hydraulic Hose	LGTH = 1100 mm
30	F070631	1	Hydraulic Hose	LGTH = 1100 mm
31	F054362	1	Hydraulic Hose	LGTH = 1470 mm
32	F054362	1	Hydraulic Hose	LGTH = 1470 mm
33	F688372	1	Hydraulic Hose	LGTH = 1310 mm
34	F688372	1	Hydraulic Hose	LGTH = 1310 mm
35	F022422	2	T-CONNECTION	-

Bunk Hydraulic Lines and Covers, VLS, Extra Short Frame
