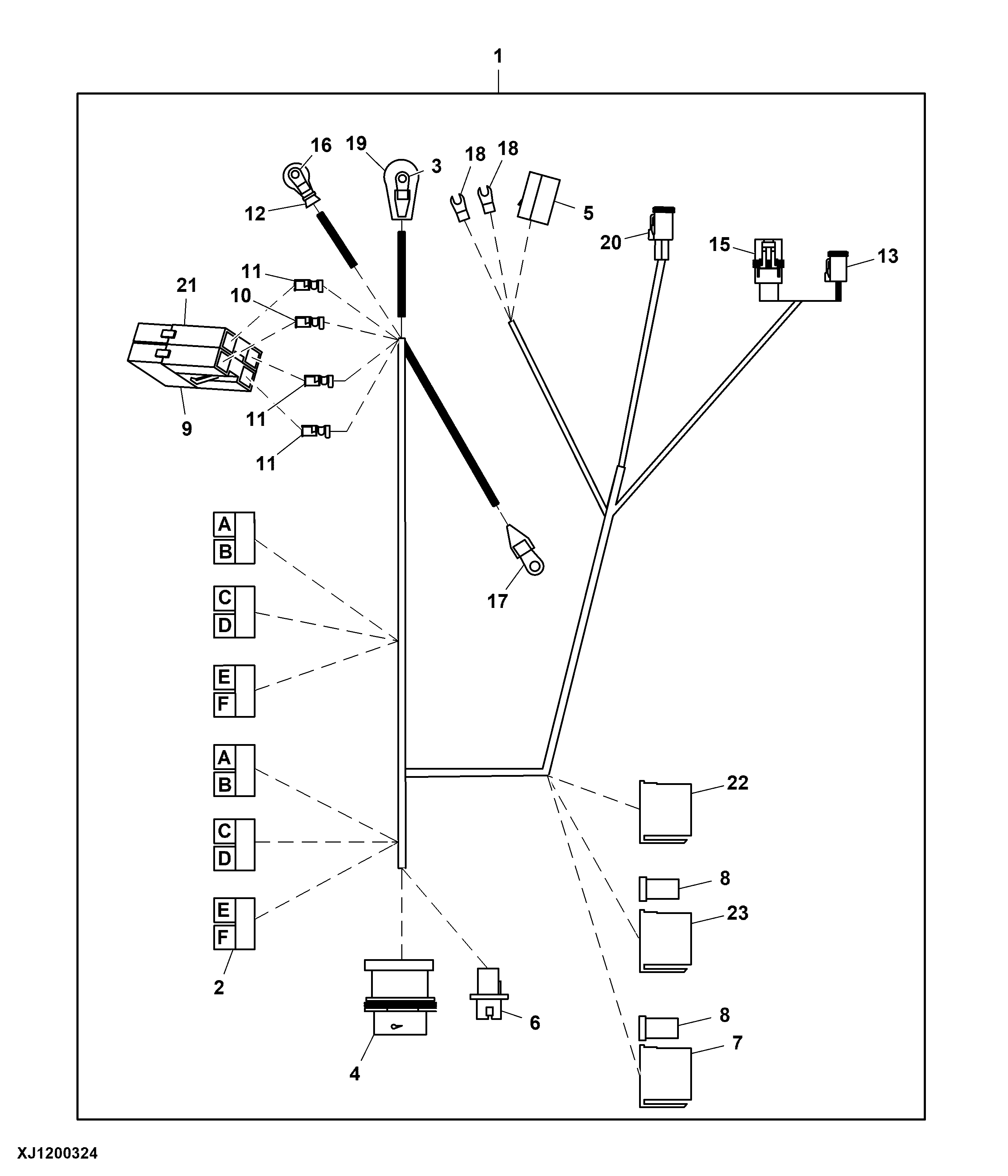

Wiring Harness Components, Main Switch Box

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F675567	1	Wiring Harness	-
2	F018864	2	Elec. Connector Terminal	-
2	F008088	1	CABLE LUG	-
3	F040608	1	Elec. Connector Terminal	-
4	57M8706	1	Elec. Connector Housing	To Front Frame, XF17
4	57M8035	1	Nut	-
4	57M7765	1	Lock Washer	-
4	57M8260	12	Elec. Connector Terminal	-
4	F052693	1	Plug	-
5	F017866	1	Electrical Connector Assy	To Starter Relay, K39
5	F008088	1	CABLE LUG	-
5	F015962	1	DIODE	-
6	57M7682	1	Elec.Connect Locking Device	-
6	57M7541	5	Elec. Connector Terminal	-
6	F052693	1	Plug	-
6	57M9228	1	Elec. Connector Housing	To Fuel Transfer Pump (Through F63) To Dosing Pump (Through F64), XF15
7	F005398	3	Elec. Connector Housing	S22 To Service Light Switch, Below Cabin
7	57M9491	1	Elec. Connector Terminal	-
8	F037112	2	Socket	-
8	57M9491	1	Elec. Connector Terminal	-
9	F041324	1	Fuse Holder	F33
10	57M9104	1	Elec. Connector Terminal	-
11	57M9103	3	Elec. Connector Terminal	B30A
12	F033387	1	Guard	S1/1
12	R44302	11	Tie Band	-
13	57M7675	1	Electrical Connector Assy	To Pre Heater, X20
13	57M8657	1	Elec. Connector Housing	-
13	57M7542	1	Elec. Connector Terminal	-
13	F052693	1	Plug	-
14	F057113	1	CABLE LUG	Not Illustrated
15	57M7280	1	Elec. Connector Housing	Cabin Tilt, XF14
15	57M7274	1	Elec. Connector Accessory	-
15	57M7299	3	Elec. Connector Terminal	-
15	R78062	3	Elec. Connector Seal	-
16	F040621	1	Elec. Connector Terminal	-
17	F043155	1	Elec. Connector Terminal	To Cabin Main Fuse, F31
18	57M7054	2	Elec. Connector Terminal	-
19	F033387	1	Guard	S1/2
20	57M7675	1	Electrical Connector Assy	To Pre Heater, X87
20	57M8657	1	Elec. Connector Housing	-
20	57M7542	1	Elec. Connector Terminal	-
20	F052693	1	Plug	-
21	F041324	1	Fuse Holder	F32
22	F005398	1	Elec. Connector Housing	To Service Light Switch, Hood, S27
22	57M9491	1	Elec. Connector Terminal	-
23	F005398	1	Elec. Connector Housing	To Switch, Hood Open and Close, S23
23	57M9491	1	Elec. Connector Terminal	-

Wiring Harness Components, Main Switch Box
