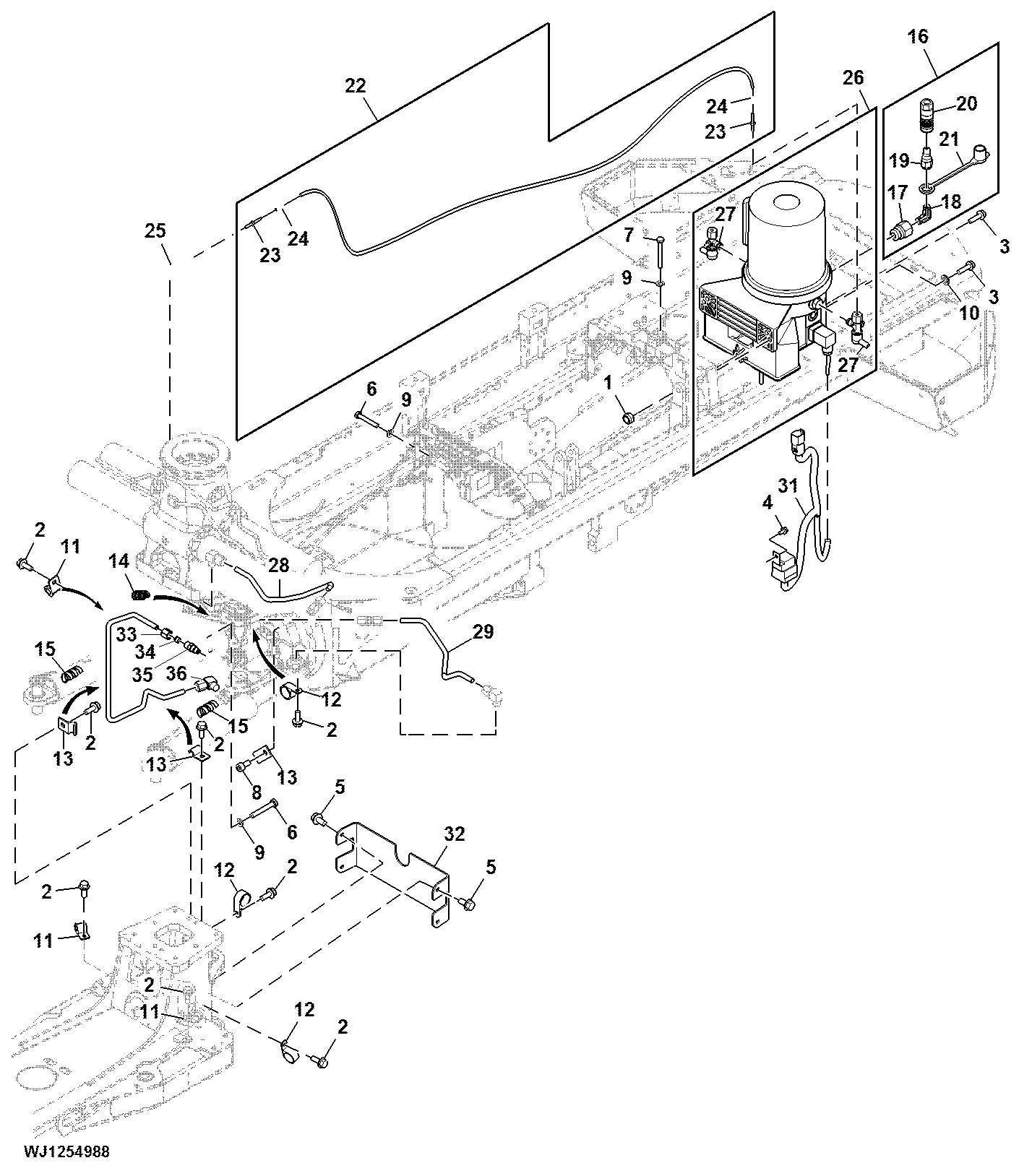

Auto Lubrication System, Carrier ( - 003150)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7685	1	Lock Nut	M8
2	19M9443	8	Screw	M6 X 16
3	19M9447	3	Screw	M8 X 30
4	19M9566	1	Screw	M6 X 12
5	19M9567	4	Screw	M8 X 16
6	19M9619	4	Cap Screw	M6 X 40
7	19M9621	2	Cap Screw	M6 X 50
8	19M9723	2	Screw	M6 X 12
9	F003345	6	Spring Washer	-
10	F008262	2	Lock Washer	-
11	F015016	3	Hose Clamp	-
12	F017094	3	Hose Support	-
13	F027046	4	Clip	-
14	F070611	1	Hose Guard	-
15	F072277	2	Hose Guard	-
16	F072734	1	Fitting Kit	-
17	F072849	1	Adapter	-
18	F072850	1	Quick Coupler	-
19	F072851	1	Quick Coupler	-
20	F072852	1	Plug	-
21	F071256	1	Lubricating Sys Component	SSV6
21	F074315	1	Lubricating Sys Component	F 0.30CCM "D" SSVD
21	F712836	1	Manifold Kit	Divider Block With Fittings
21	F712741	1	Manifold Kit	Divider Block With Fittings
21	F074316	1	Lubricating Sys Component	F 0.14CCM "B" SSVD
21	F074313	1	Lubricating Sys Component	Divider Block Without Fittings, SSVD6/3-K NLA; ORDER F712836
21	F072853	1	Plug	-
21	F074571	1	Lubricating Sys Component	Divider Block Without Fittings, SSV10 NLA; ORDER F712741
22	F073339	1	Lubricating Sys Component	-
23	F035931	2	Spool	-
24	F035932	2	Bushing	-
25	F073522	1	Fitting	-
26	F074680	1	Lubricating Sys Component	-
27	F071254	2	Pressure Relief Valve	-
28	F649233	1	Pipe	LGTH = 348 mm
29	F649234	1	Pipe	LGTH = 368 mm
30	F649235	1	Pipe	LGTH = 590 mm
31	F653686	1	Wiring Harness	COMPONENTS ON SEPARATE PAGE
32	F658106	1	Shield	-
32	F658106	1	Shield	-
33	F071258	1	Nut	-
34	F071259	1	Ring	-
35	F071260	1	Valve	-
36	F073052	1	Elbow Fitting	-

Auto Lubrication System, Carrier ( - 003150)

Нет текстового описания
