Wiring Harness Components, Modular Telematics Gateway (MTG)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F676315	1	Wiring Harness	-
2	57M10615	1	Elec. Connector Housing	XM2
2	57M10613	1	Elec. Connector Housing	-
2	57M10590	4	Elec. Connector Housing	-
2	57M10618	4	Elec. Connector Housing	-
2	57M10333	35	Elec. Connector Cavity Plug	-
2	57M10334	5	Elec. Connector Cavity Plug	-
3	57M8735	1	Elec. Connector Housing	XC40
3	57M8134	1	Elec. Connector Terminal	-
3	57M8538	3	Elec. Connector Terminal	-
4	57M9525	3	Elec. Connector Terminal	-
4	R78069	1	Elec. Connector Cavity Plug	-
4	57M7678	1	Elec. Connector Terminal	-
4	57M8739	1	Elec. Connector Housing	24 V, X66
5	57M8634	1	Elec. Connector Housing	X1S
5	57M8013	1	Elec.Connect Locking Device	-
5	57M8165	5	Elec. Connector Terminal	-
5	R78069	1	Elec. Connector Cavity Plug	-
6	57M8657	1	Elec. Connector Housing	XC39
6	57M8537	2	Elec. Connector Terminal	-
6	57M8133	1	Elec.Connect Locking Device	-
6	R78069	1	Elec. Connector Cavity Plug	-
7	F663399	1	Resistor	-

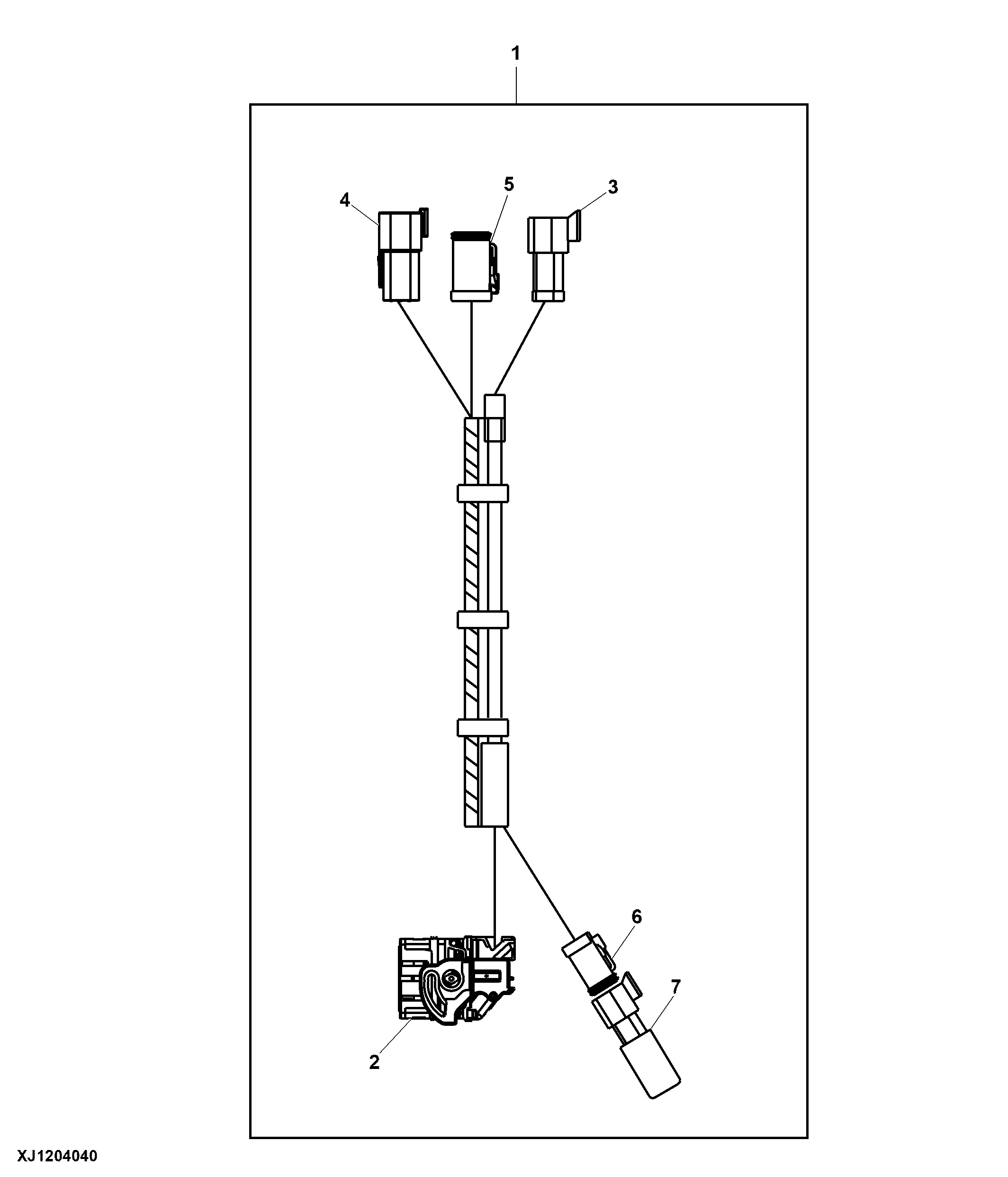

Wiring Harness Components, Modular Telematics Gateway (MTG)
