Открытый узел

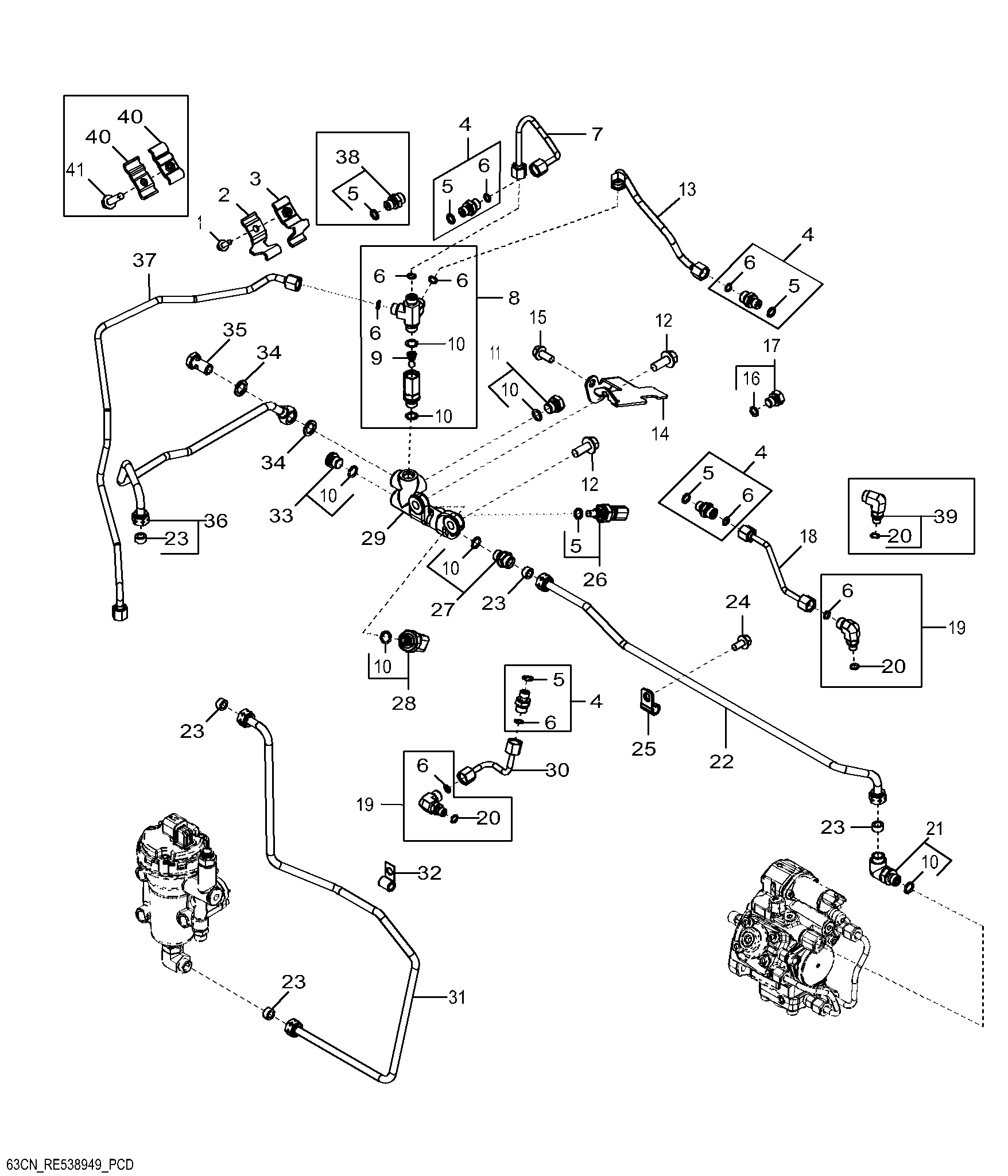

63CN Low Pressure Fuel Lines

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7775	1	Screw	(O-Ring Face Seal Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) M6 X 16, USE WITH RE550529, RE550211, RE552479, RE550210, RE538379, R534467 AND RE550327
2	R534467	1	Half Clamp	(O-Ring Face Seal Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) USE WITH RE550529, RE550211, RE552479, RE550210, RE538379, RE550327 AND 19M7774
3	RE550327	1	Half Clamp	(O-Ring Face Seal Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) USE WITH RE550529, RE550211, RE552479, RE550210, RE538379, R534467 AND 19M7774
4	RE538379	4	Fitting	(O-Ring Face Seal Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) USE WITH RE550529, RE550211, RE552479, RE550210, R534467, RE550327 AND 19M7774
5	R528719	9	O-Ring	-
6	R528735	9	O-Ring	-
7	RE541407	1	Fuel Line	(Flex Packing Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) Not Illustrated, INCLUDES (2) R74012; USE WITH RE541475, RE541063, RE544007, RE538966, (2) R531366 AND 19M7866; ORDER RE559666
7	RE559666	1	Fuel Line	(O-Ring Face Seal Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) USE WITH RE550529, RE552479, RE550210, RE538379, RE534467, RE550327 AND 19M7774; SUB FOR RE550211
8	RE541475	1	Check Valve	(Flex Packing Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) Not Illustrated, USE WITH RE541407, RE541063, RE544007, RE538966, (2) R531366 AND 19M7866; ORDER RE550529
8	RE550529	1	Check Valve	(O-Ring Face Seal Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) USE WITH RE550211, RE552479, RE550210, RE538379, R534467, RE550327 AND 19M7774; INCLUDES (3) R528735 and (2) 51M7095
9	RE539829	1	Valve Kit	-
10	51M7095	6	O-Ring	11.300 X 2.200 mm
11	RE538360	1	Fitting Plug	-
12	19M7785	2	Screw	M10 X 25
13	RE544007	1	Fuel Line	(Flex Packing Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) Not Illustrated, INCLUDES (2) R74012; USE WITH RE541475, R541407, RE541063, RE538966, (2) R531366 AND 19M7866; ORDER RE550210
13	RE550210	1	Fuel Line	(O-Ring Face Seal Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) USE WITH RE550529, RE550211, RE552479, RE538379, R534467, RE550327 AND 19M7774
14	R536157	1	Heat Shield	-
15	19M7866	1	Screw	M8 X 20
16	51M7040	1	O-Ring	9.300 X 2.200 mm
17	RE46686	1	Fitting Plug	-
18	RE540406	1	Fuel Line	(Flex Packing Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) Not Illustrated, INCLUDES (2) R74012; USE WITH RE541475, RE541063, RE544007, RE538966, (2) R531366 AND 19M7866; ORDER RE552918
18	RE552918	1	Fuel Line	(O-Ring Face Seal Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) USE WITH RE550529, RE550211, RE552479, RE538379, R534467, RE550327 AND 19M7774
19	RE551481	2	Elbow Fitting	-
20	51M7094	4	O-Ring	8.100 X 1.600 mm
21	RE539070	1	Elbow Fitting	-
22	RE541064	1	Fuel Line	INCLUDES (2) R67092
23	R67092	5	Sealing Washer	-
24	19M7865	1	Screw	M8 X 16
25	AH76882	1	Clip	-
26	DZ123025	1	Fuel Temperature Sensor	Fuel Temperature Sensor, SUB FOR RE538127
27	RE538963	1	Adapter Fitting	-
28	RE538128	1	Pressure Sensor	-
29	R534436	1	Manifold	SUB FOR R532255
30	RE540506	1	Fuel Line	(Flex Packing Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) Not Illustrated, INCLUDES (2) R74012; USE WITH RE541475, RE541063, RE544007, RE538966, (2) R531366 AND 19M7866; ORDER RE552919
30	RE552919	1	Fuel Line	(O-Ring Face Seal Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) USE WITH RE550529, RE550211, RE552479, RE538379, R534467, RE550327 AND 19M7774
31	DZ107845	1	Fuel Line	INCLUDES (2) R67092; SUB FOR RE541111
32	T13814	1	Clamp	-
33	RE540405	1	Fitting	-
34	DZ10397	2	Washer	SUB FOR RE556988 OR R530368
35	R530369	1	Fitting	-
36	RE552480	1	Fuel Line	INCLUDES R67092; SUB FOR RE541062
37	RE541063	1	Fuel Line	(Flex Packing Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) INCLUDES (2) R74012; USE WITH RE541475, RE541407, RE544007, RE538966, (2) R531366 AND 19M7866; ORDER RE552479
37	RE552479	1	Fuel Line	(O-Ring Face Seal Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) USE WITH RE550529, RE550211, RE550210, RE538379, R534467, RE550327 AND 19M7774
38	RE538966	4	Adapter Fitting	(Flex Packing Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) USE WITH RE541475, RE541407, RE541063, RE544007, (2) R531366 AND 19M7866; ORDER RE538379
39	RE541087	2	Elbow Fitting	ORDER RE551481
40	R531366	2	Half Clamp	(Flex Packing Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) USE WITH RE541475, RE541407, RE541063, RE544007, RE538966 AND 19M7866
41	19M7868	1	Screw	(Flex Packing Lines and Fittings) (Flex Packing Lines and Fittings Are Not Interchangeable with O-Ring Face Seal Lines and Fittings) M8 X 30, USE WITH RE541475, RE541407, RE541063, RE544007, RE538966 AND (2) R531366
42	R74012	10	Sealing Washer	Not Illustrated

63CN Low Pressure Fuel Lines
