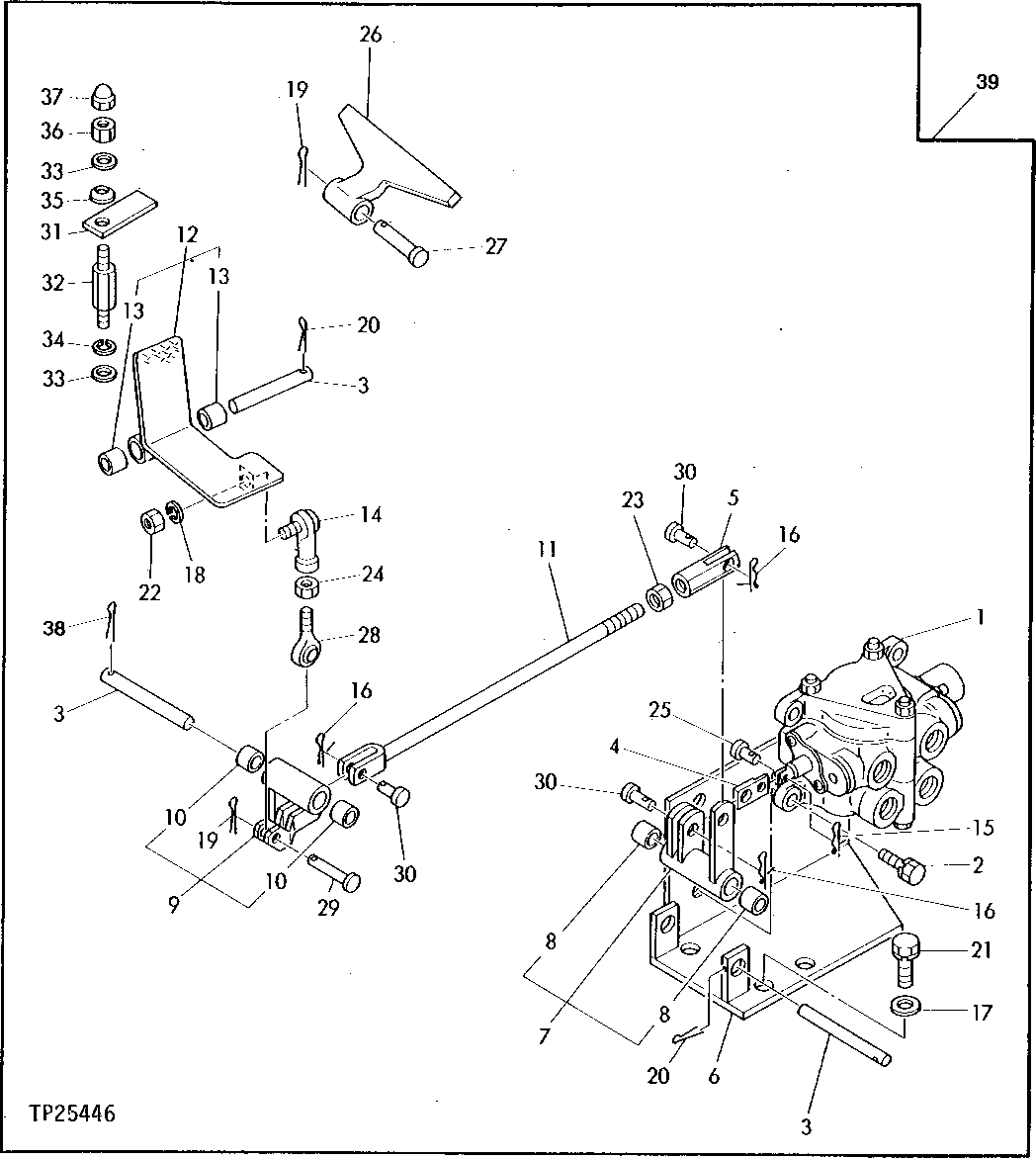

THIRD FUNCTION VALVE, PEDAL AND LINKAGE [I07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(T111741 - NO LONGER AVAILABLE)
2	12M7066	2	Lock Washer	10 MM
2	19M7168	2	Cap Screw	M10 X 30
3	AT110001	3	SHAFT	-
4	T111742	1	SPOOL	-
5	T110118	1	LINK	-
6	T111743	1	BRACKET	-
7	AT111078	1	LINK	-
8	T110633	2	BUSHING	-
9	AT111079	1	LINK	-
10	T110633	2	BUSHING	-
11	T111746	1	ROD	-
12	AT111080	1	PEDAL	-
13	T110633	2	BUSHING	-
14	T111748	1	TIE ROD END	-
15	LG93306	1	Spring Locking Pin	(SUB FOR T110005 OR M112711)
16	R50647	3	Spring Locking Pin	(SUB FOR T110006)
17	24M7028	3	Washer	10.500 X 20 X 2 MM
18	12M7060	1	Washer	5.300 MM
19	11M7082	2	Cotter Pin	2.500 X 25 MM, (SUB FOR CH12317)
20	11M7087	2	Cotter Pin	4 X 40 MM
21	12M7066	3	Lock Washer	10 MM
21	19M8324	3	Cap Screw	M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)
22	14M7274	1	Nut	M10
23	14M7274	1	Nut	M10
24	14M7274	1	Nut	M10
25	T110484	1	PIN FASTENER	-
26	T111749	1	LOCK	-
27	T110625	1	PIN	-
28	T111750	1	LINK	-
29	T111751	1	PIN FASTENER	-
30	T110627	3	PIN	-
31	T111752	1	LOCK PLATE	-
32	T111753	1	STUD	-
33	24M7028	2	Washer	10.500 X 20 X 2 MM
34	12M7060	1	Washer	5.300 MM
35	CH11981	1	Washer	(SUB FOR T110396)
36	14M7274	1	Nut	M10
37	T111322	1	CAP	-
38	11M7087	1	Cotter Pin	4 X 40 MM, (SUB FOR 11M7023)
39	-	1	Part 41	(FOR UNITS WITH CANOPY TOPS) (ALSO CONTAINS ITEMS ON PAGES 3360-4 AND 5) ( AT107174 NO LONGER AVAILABLE)
39	-	1	Part 42	(FOR UNITS WITH CAB) (ALSO CONTAINS ITEMS ON PAGES 3360-6 AND 7) ( AT107212 NO LONGER AVAILABLE)
