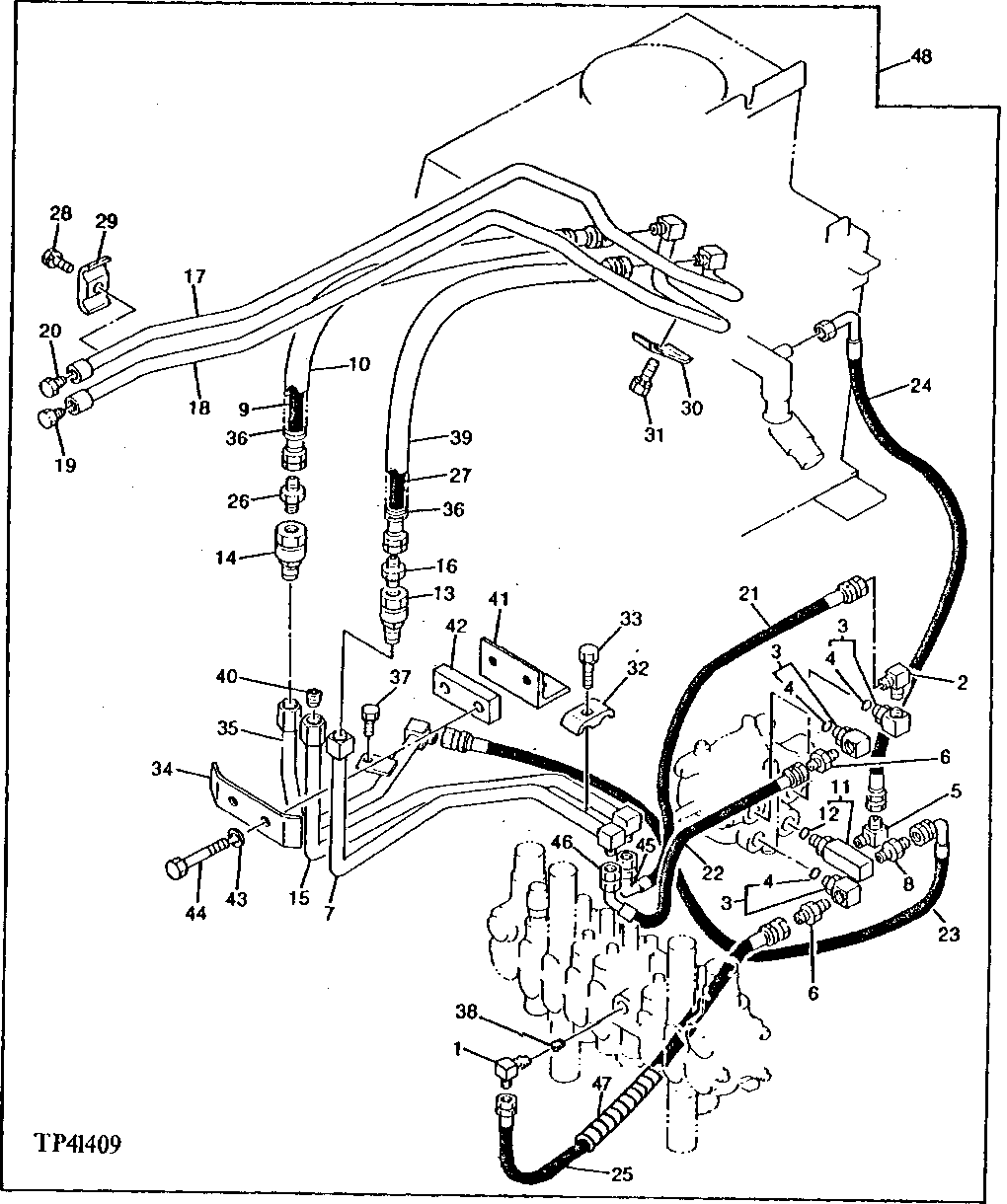

THIRD FUNCTION HYDRAULIC HOSES, LINES AND FITTINGS (CAB UNITS) [I05]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T115889	1	ELBOW FITTING	(SUB FOR T110866)
2	T115889	1	ELBOW FITTING	(SUB FOR T110866)
3	-	3	Part 4	( T111333 NO LONGER AVAILABLE)
3	AT111512	3	FITTING	-
3	-	3	Part 3	( T111332 NO LONGER AVAILABLE)
4	CH11570	3	O-Ring	-
5	4154658	1	Elbow Fitting	(SUB FOR T110870) (SUB FOR TH101039)
6	T115957	2	ADAPTER FITTING	(SUB FOR T110867)
7	T114032	1	OIL LINE	-
8	4154653	1	ADAPTER FITTING	(SUB FOR T110871) (SUB FOR TH100989)
9	T114033	1	HYDRAULIC HOSE - FABRICATE	-
10	T114034	1	HOSE GUARD	-
11	T111990	1	FITTING	(SUB FOR T111767)
12	4506418	1	O-Ring	(SUB FOR T110438) (SUB FOR U46489)
13	T111768	1	MANIFOLD	-
14	T111769	1	MANIFOLD	-
15	T111770	1	OIL LINE	-
16	T115957	1	ADAPTER FITTING	(SUB FOR T110867)
17	T111772	1	OIL LINE	-
17	AT111538	1	OIL LINE	-
18	T111773	1	OIL LINE	-
18	AT111539	1	OIL LINE	-
19	T111465	1	PLUG	-
20	T111680	1	PIPE PLUG	-
21	AR50603	1	Hydraulic Hose	(SUB FOR T111774, ALONG WITH AE24616)
22	AR50603	1	Hydraulic Hose	(SUB FOR T111775, ALONG WITH AU43156)
23	T111776	1	HYDRAULIC HOSE	-
24	T111777	1	HYDRAULIC HOSE - FABRICATE	-
25	AT48428	1	Hydraulic Hose	(SUB FOR T111778)
26	4154653	1	ADAPTER FITTING	(SUB FOR T110871) (SUB FOR TH100989)
27	AT46299	1	Hydraulic Hose	(SUB FOR T111780)
28	M800452	2	SCREW WITH WASHER	-
29	T110033	2	RETAINER	-
30	T111781	1	CLAMP	-
31	12M7066	1	Lock Washer	10 MM
31	19M7166	1	Cap Screw	M10 X 20
32	T110599	1	CLAMP	-
33	M800452	1	SCREW WITH WASHER	-
34	T111782	1	CLAMP	-
35	T111783	1	OIL LINE	-
36	T111126	4	Clamp	-
37	12M7066	1	Lock Washer	10 MM
37	19M8324	1	Cap Screw	M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)
38	15H559	1	Pipe Plug	1/4"
39	T111785	1	HOSE GUARD	-
40	T111787	1	PLUG	-
41	AT111544	1	SUPPORT	-
42	T113819	1	STRAP	-
43	12M7060	2	Washer	5.300 MM
44	19M7742	2	Cap Screw	M10 X 65
45	AE24616	1	Elbow Fitting	-
46	AU43156	1	Elbow Fitting	-
47	T138881	1	HOSE GUARD	(CUT TO LENGTH)
48	-	1	Part 54	(CONTAINS ALL ITEMS ON THIS PAGE, FOR ADDITIONAL COMPONENTS SEE FOLLOWING PAGE) ( AT107212 NO LONGER AVAILABLE)

THIRD FUNCTION HYDRAULIC HOSES, LINES AND FITTINGS (CAB UNITS) [I05]

Нет текстового описания
