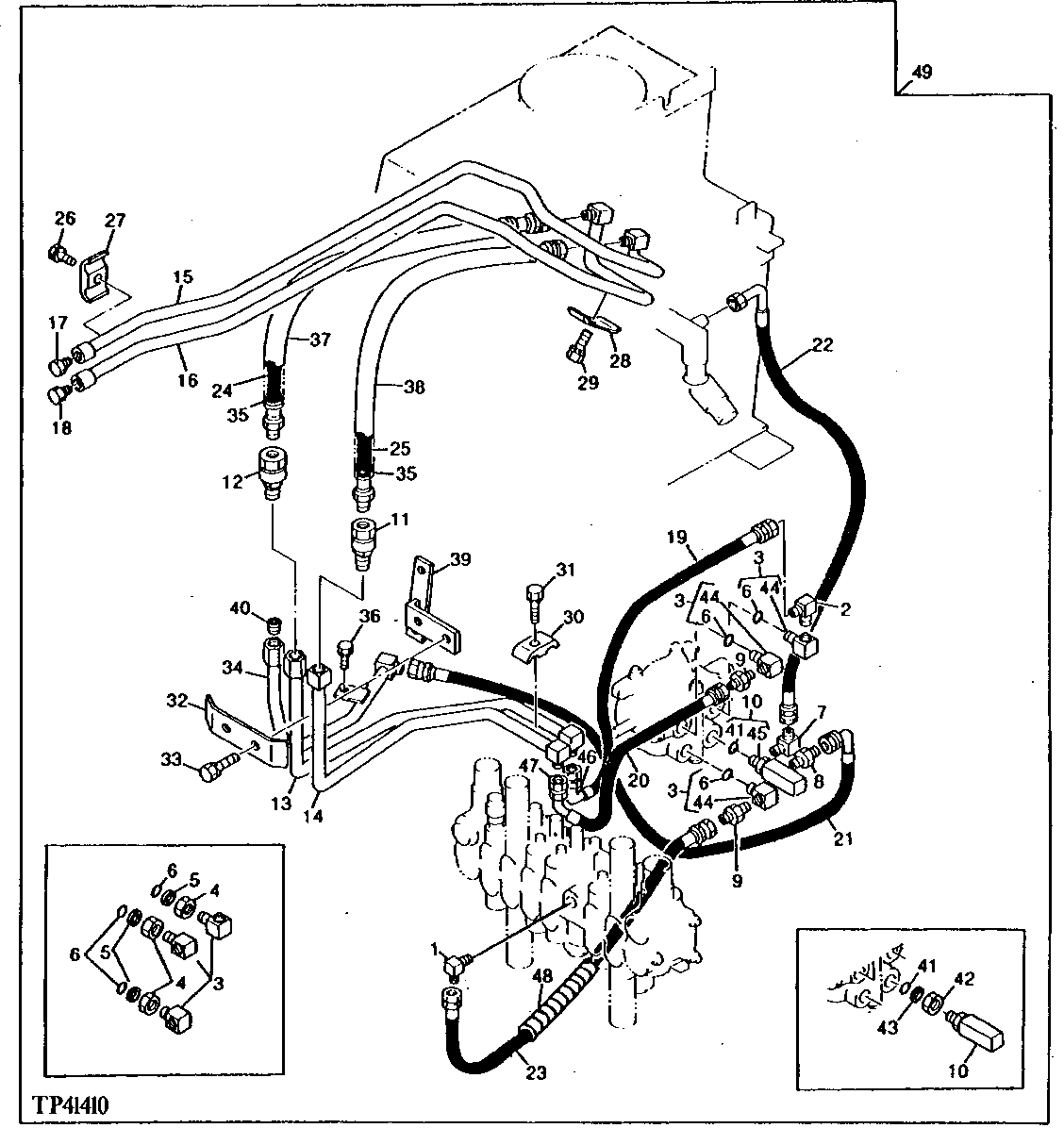

THIRD FNCTION HYDRAULIC HOSES, LINES AND FITTINGS (CANOPY UNITS) [I03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T115889	1	ELBOW FITTING	(SUB FOR T110866)
2	T115889	1	ELBOW FITTING	(SUB FOR T110866)
3	AT111512	3	FITTING	-
3	-	3	Part 3	(SUB AT111512) ( T111332 NO LONGER AVAILABLE)
4	-	3	Part 5	(SUB AT111512) ( T111333 NO LONGER AVAILABLE)
5	-	3	Part 6	(SUB AT111512) ( T110512 NO LONGER AVAILABLE)
6	CH11570	3	O-Ring	-
7	4154658	1	Elbow Fitting	(SUB FOR T110870) (SUB FOR TH101039)
8	4154653	1	ADAPTER FITTING	(SUB FOR T110871) (SUB FOR TH100989)
9	T115957	2	ADAPTER FITTING	(SUB FOR T110867)
10	T111990	1	FITTING	-
10	T111767	1	FITTING	-
11	T111768	1	MANIFOLD	-
12	T111769	1	MANIFOLD	-
13	T111770	1	OIL LINE	-
13	AT111540	1	OIL LINE	-
14	AT111541	1	OIL LINE	-
14	T114032	1	OIL LINE	(SUB FOR T111771)
15	T111772	1	OIL LINE	-
15	AT111538	1	OIL LINE	-
16	T111773	1	OIL LINE	-
16	AT111539	1	OIL LINE	-
17	T111465	1	PLUG	-
18	T111680	1	PIPE PLUG	-
19	AR50603	1	Hydraulic Hose	(SUB FOR T111774, ALONG WITH AE24616)
20	AR50603	1	Hydraulic Hose	(SUB FOR T111775, ALONG WITH AU43156)
21	T111776	1	HYDRAULIC HOSE	-
22	T111777	1	HYDRAULIC HOSE - FABRICATE	-
23	AT48428	1	Hydraulic Hose	(SUB FOR T111778)
24	T111779	1	HYDRAULIC HOSE	(SUB T114033)
24	T114033	1	HYDRAULIC HOSE - FABRICATE	-
25	AT46299	1	Hydraulic Hose	(SUB FOR T111780)
26	M800452	2	SCREW WITH WASHER	-
27	T110033	2	RETAINER	-
28	T111781	1	CLAMP	-
29	12M7066	1	Lock Washer	10 MM
29	19M7166	1	Cap Screw	M10 X 20
30	T110599	1	CLAMP	-
31	M800452	1	SCREW WITH WASHER	-
32	T111782	1	CLAMP	-
32	T113817	1	CLAMP	-
33	M800452	2	SCREW WITH WASHER	-
33	12M7006	2	Lock Washer	6 MM
33	19M7167	2	Cap Screw	-
34	T111783	1	OIL LINE	-
34	AT111542	1	OIL LINE	-
35	T111126	4	Clamp	-
36	19M8324	1	Cap Screw	M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)
36	12M7066	1	Lock Washer	10 MM
37	T111784	1	HOSE GUARD	(SUB T114034)
37	T114034	1	HOSE GUARD	-
38	T111785	1	HOSE GUARD	-
39	T111786	1	SUPPORT	-
39	AT111537	1	SUPPORT	-
40	T111787	1	PLUG	-
41	4506418	1	O-Ring	(SUB FOR T110438) (SUB FOR U46489)
42	-	1	Part 57	( T110513 NO LONGER AVAILABLE)
43	-	1	Part 58	( T110514 NO LONGER AVAILABLE)
44	-	3	Part 59	(SUB AT111512)
45	-	1	Part 60	(SUB T111767)
46	AE24616	1	Elbow Fitting	-
47	AU43156	1	Elbow Fitting	-
48	T138881	1	HOSE GUARD	(CUT TO LENGTH)
49	-	1	Part 64	(ALSO CONTAINS ITEMS ON PAGES 3360-8 AND 9) ( AT107174 NO LONGER AVAILABLE)
