SWING CYLINDER [H01]

SWING CYLINDER [H01]

SWING CYLINDER [H01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

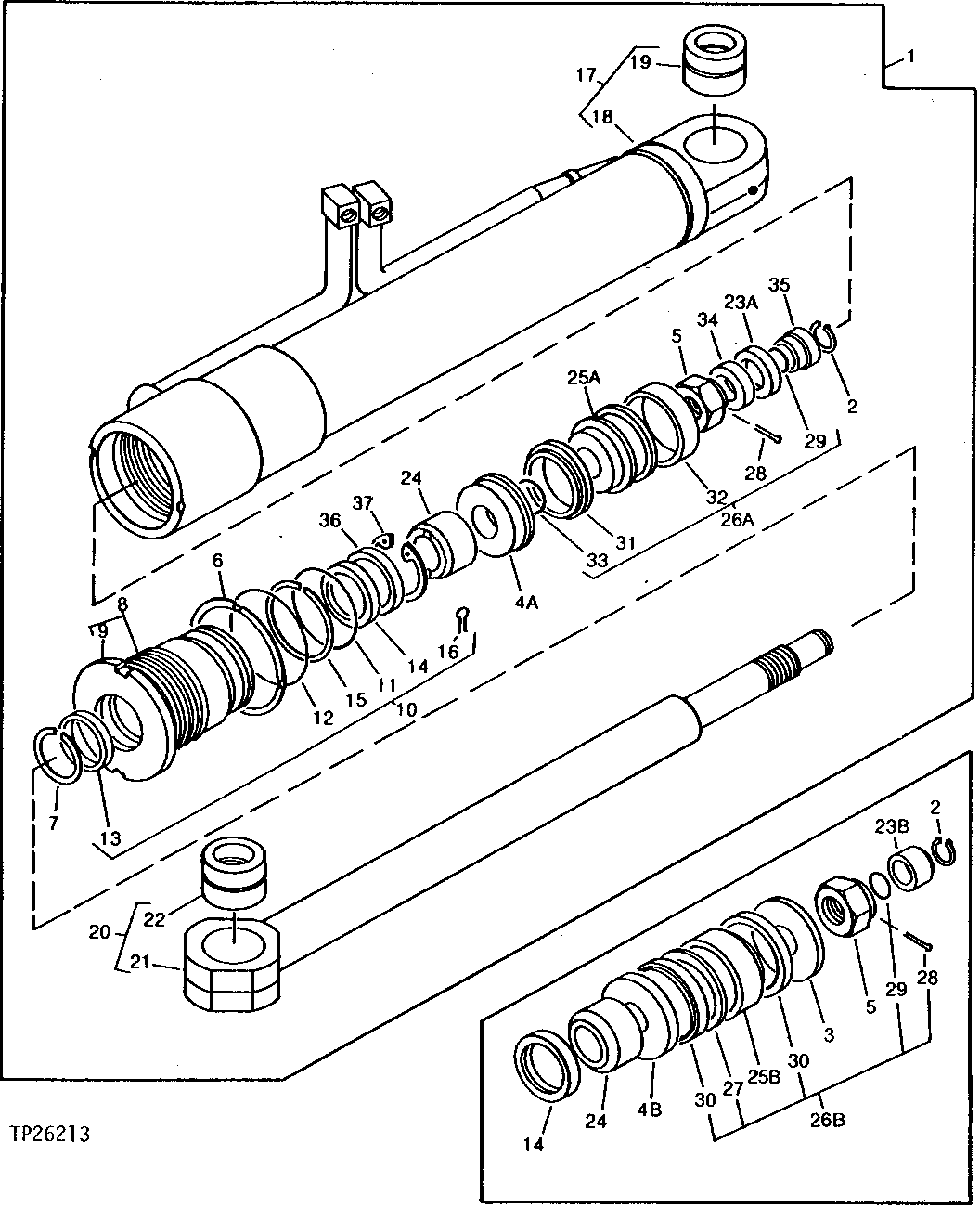

SWING CYLINDER [H01]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT111853	1	HYDRAULIC CYLINDER	(SUB FOR AT110594) (USE IF AVAILABLE)
1	-	1	Part 1	( AT110594 NO LONGER AVAILABLE) (SUB AT111853 IF AVAILABLE)
2	CH17291	1	Snap Ring	(USE WITH AT110594)
2	40M7057	1	Snap Ring	(USE WITH AT111853) (SUB FOR T114220)
3	T110499	1	RING	(USE WITH AT110594)
5	T110504	1	NUT	-
6	T110493	1	WASHER	-
7	T110511	1	RING	-
8	AT110214	1	CYLINDER HEAD	(USE WITH AT110594)
8	T114222	1	HYDRAULIC CYLINDER CAP	(USE WITH AT111853)
9	T110492	1	BUSHING	-
10	-	1	Part 14	(USE WITH AT110594) ( AT111129 NO LONGER AVAILABLE FOR SERVICE) (SUB INDIVIDUAL COMPONENTS)
10	AT111854	1	SEAL KIT	(USE WITH AT111853) (USE IF AVAILABLE)
11	-	1	Part 16	(USE WITH AT110594) ( T110434 NO LONGER AVAILABLE)
11	AT264334	1	O-Ring	(USE WITH AT111853) (SUB FOR T114223, TH100101)
12	CH17160	1	Packing	-
13	T110505	1	SEAL	-
14	T110506	1	PACKING	-
15	-	1	Part 21	(USE WITH AT110594) ( T110605 NO LONGER AVAILABLE)
15	T114224	1	BACK-UP RING	(USE WITH AT111853)
16	11M7032	1	Cotter Pin	5 X 50 MM
17	AT111130	1	HYDRAULIC CYLINDER BARREL	(USE WITH AT110594)
17	AT111855	1	HYDRAULIC CYLINDER BARREL	(USE WITH AT111853) (USE IF AVAILABLE)
18	T114225	1	HYDRAULIC CYLINDER BARREL	(USE WITH AT111853)
18	-	1	Part 26	(SUB AT111130) (USE WITH AT110594)
19	T111344	1	BUSHING	-
20	AT111856	1	ROD	(SUB FOR AT111131) (ALSO ORDER 40M7057) (USE IF AVAILABLE)
20	AT111856	1	ROD	(USE IF AVAILABLE)
21	-	1	Part 31	(USE WITH AT110594) (SUB AT111131)
21	T114226	1	ROD	(USE WITH AT111853)
22	T111344	1	BUSHING	-
24	T110568	1	PLUNGER	(USE WITH AT110594)
24	T114228	1	PLUNGER	(USE WITH AT111853)
27	T110510	1	RING	-
28	11M7032	1	Cotter Pin	5 X 50 MM
29	CH11563	1	Packing	-
30	T110507	2	PACKING	-
31	T138834	1	SEAL	-
31	-	1	Part 47	(SUB T138834) ( T114230 NO LONGER AVAILABLE)
32	T114231	1	RING	-
33	T114232	1	O-RING	-
34	T114233	1	BUSHING	-
35	T114234	1	BUSHING	-
36	T114235	1	RING	-
37	T114236	1	RING	-
4A	T114221	1	RETAINER	(USE WITH AT111853)
4B	T110501	1	BACK-UP RING	(USE WITH AT110594)
23A	T114227	1	RING	(USE WITH AT111853)
23B	T110567	1	PLUNGER	(USE WITH AT110594)
25A	T114229	1	PISTON	(USE WITH AT111853)
25B	T110497	1	PISTON	(USE WITH AT110594)
26A	-	1	Part 41	(USE WITH AT111853) ( AT111944 NO LONGER AVAILABLE FOR SERVICE)
26A	-	1	Part 40	( AT111857 NO LONGER AVAILABLE)
26B	AT111132	1	SEAL KIT	(USE WITH AT110594)
