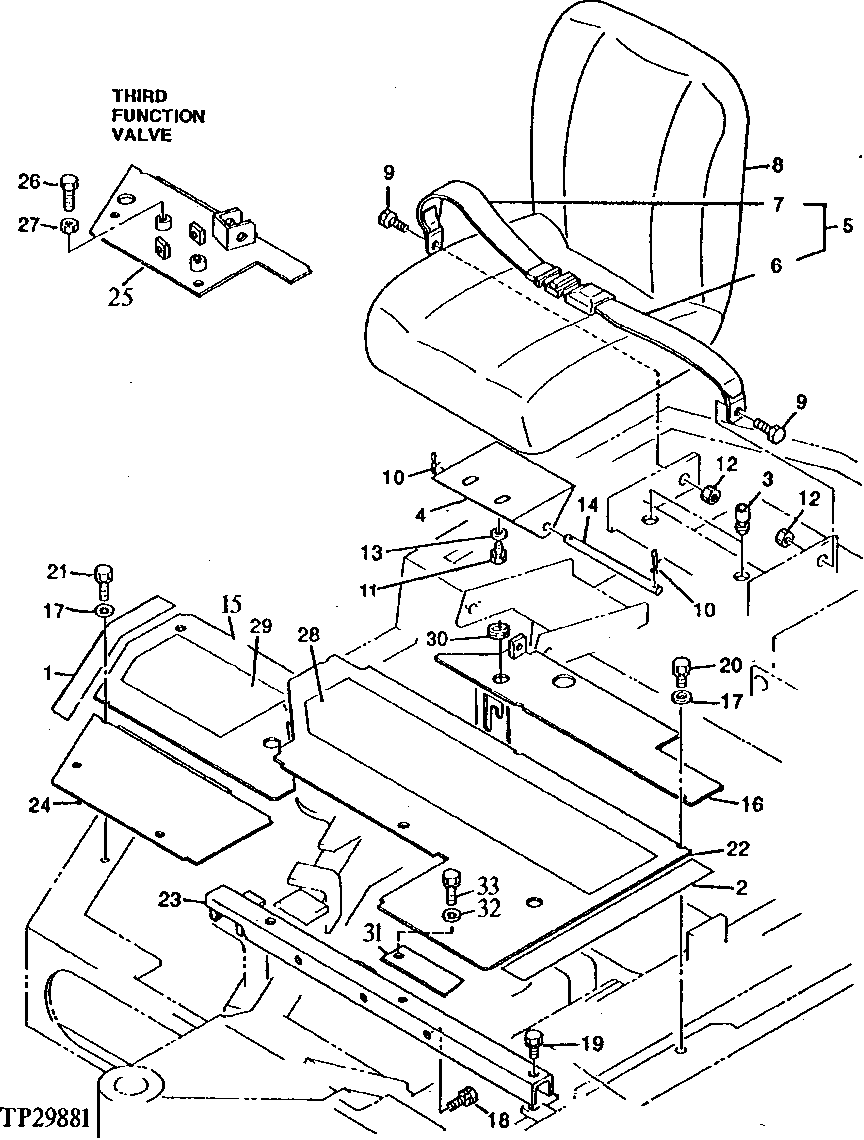

SEAT, SEAT BELT AND FLOOR PANELS [F13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( T110332 NO LONGER AVAILABLE)
2	-	1	Part 2	( T110333 NO LONGER AVAILABLE)
3	T110406	2	BUMPER	-
4	T110335	1	BRACKET	-
5	AT110586	1	SEAT BELT	-
6	-	1	Part 6	( AT110587 NO LONGER AVAILABLE)
7	AT110588	1	SEAT BELT	-
8	-	1	Part 8	(SUB FOR AT110534) ( AT111878 NO LONGER AVAILABLE FOR SERVICE)
9	19M8637	2	Cap Screw	M10 X 40, (SUB FOR T111201)
10	CH12016	2	Pin	-
11	12M7056	2	Lock Washer	8 MM, (SUB FOR 12M7065)
11	19M7932	2	Cap Screw	M8 X 16
12	14M7274	2	Nut	M10
13	T110611	2	WASHER	-
14	T110626	1	PIN	-
15	AT111937	1	STEP	(SUB FOR AT110532) (SIDE)
16	AT111830	1	STEP	(SUB FOR AT111515) (SUB AT111830)
16	AT111830	1	STEP	-
17	24M7028	5	Washer	10.500 X 20 X 2 MM
18	12M7066	3	Lock Washer	10 MM
18	19M8324	3	Cap Screw	M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)
19	12M7066	1	Lock Washer	10 MM
19	19M7166	1	Cap Screw	M10 X 20
20	12M7066	6	Lock Washer	10 MM
20	19M7166	6	Cap Screw	M10 X 20
21	12M7066	4	Lock Washer	10 MM
21	19M7166	4	Cap Screw	M10 X 20
22	T111198	1	STEP	-
23	AT110531	1	CROSSBAR	-
24	AT111938	1	STEP	(SUB FOR AT110533) (SIDE)
24	AT111938	1	STEP	(SUB FOR AT110533) (USE IF AVAILABLE) (SIDE)
25	T138825	1	STEP	(SUB FOR T111755)
26	19M8600	2	Cap Screw	M10 X 50
27	14M7274	2	Nut	M10
28	T111756	1	SEAT	-
29	T111757	1	SEAT	(USE WITH AT110532 STEP)
30	T114177	1	GROMMET	-
31	T138829	1	STRAP	-
32	12M7066	1	Lock Washer	10 MM
33	19M7166	1	Cap Screw	M10 X 20
22A	T138824	1	STEP	(USE WITH CAB UNITS)
22B	T138840	1	STEP	(USE WITH CANOPY UNITS)

SEAT, SEAT BELT AND FLOOR PANELS [F13]
