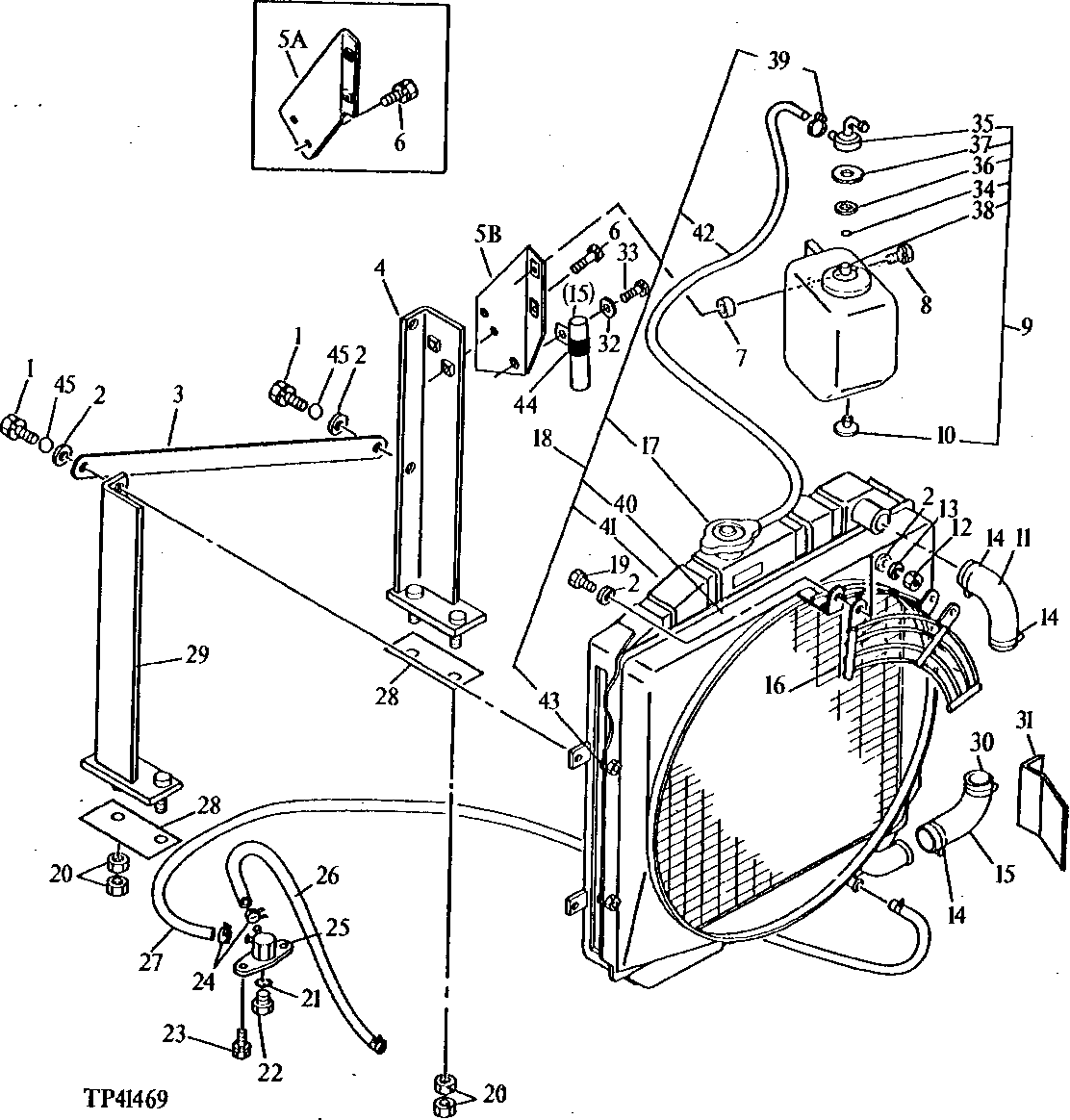

RADIATOR, SHROUD, OVERFLOW TANK AND MOUNTING BRACKETS [D15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7881	4	Screw	M8 X 20
2	24M7055	6	Washer	8.400 X 16 X 1.600 MM
3	T110298	1	BRACKET	-
4	AT110162	1	SUPPORT	-
6	12M7056	2	Lock Washer	8 MM, (SUB FOR 12M7065)
6	19M7881	2	Screw	M8 X 20
7	T110398	2	CUSHION	-
8	T111732	2	Bolt	-
9	AT110377	1	RESERVOIR	-
10	T110998	1	Plug	-
11	RG60025	1	Radiator Hose	(SUB FOR T110996)
12	14M7273	2	Nut	M8
13	12M7056	2	Lock Washer	8 MM, (SUB FOR 12M7065)
14	TY22467	3	Clamp	(SUB FOR CH10549 OR AT145650)
15	T110994	1	HYDRAULIC HOSE	(SUB T111957)
15	T111957	1	RADIATOR HOSE	-
16	AT111826	1	GUARD	SUB AT111826 ALONG WITH T114134, THIS APPLICATION, (SUB FOR AT110376)
16	AT111826	1	GUARD	(SUB FOR AT111782)
17	CH18207	1	Filler Cap	(SUB FOR CH10427)
18	AT111781	1	RADIATOR	SUB AT111826 ALONG WITH AT111781, THIS APPLICATION, (SUB FOR AT110375)
18	AT111781	1	RADIATOR	(USE IF AVAILABLE)
19	19M7881	2	Screw	M8 X 20
20	14M7274	8	Nut	M10
21	CH10570	1	O-Ring	-
22	CH10275	1	Plug	-
23	19M7932	2	Cap Screw	M8 X 16
23	12M7056	2	Lock Washer	8 MM, (SUB FOR 12M7065)
24	TY22462	4	Clamp	(SUB FOR AR48236)
25	T110997	1	HYD ACTUATED CONTROL VALVE	-
26	T110300	1	LINE	-
27	T110299	1	LINE	-
28	T110297	2	ISOLATOR	-
29	AT110163	1	SUPPORT	-
30	TY22467	1	Clamp	(SUB FOR T110428 OR AT145650)
31	T111951	1	GUARD	-
32	24M7055	1	Washer	8.400 X 16 X 1.600 MM
33	19M7932	1	Cap Screw	M8 X 16
33	12M7056	1	Lock Washer	8 MM, (SUB FOR 12M7065)
34	CH10426	1	Retainer	-
35	T114260	1	Cap	(SUB FOR CH12896, THIS APPLICATION) (ALSO ORDER T114621)
36	-	1	Part 43	(SUB AT110377)
37	-	1	Part 44	( T111613 OR T114261 NO LONGER AVAILABLE)
38	T114147	1	Pipe	-
39	CH12782	2	Clamp	-
40	T114134	1	SHROUD	-
41	T114146	1	RADIATOR	-
42	-	1	Part 49	( CH18195 NO LONGER AVAILABLE)
43	12M7056	4	Lock Washer	8 MM, (SUB FOR 12M7065)
43	19M7932	4	Cap Screw	M8 X 16
44	AT110012	1	Hose Clamp	-
45	12M7056	4	Lock Washer	8 MM, (SUB FOR 12M7065)
5A	AT111498	1	SUPPORT	(SUB FOR AT110164) (SUB AT111498, T111951, 24M7055, 19M7162 AND 12M7065)
5B	AT111498	1	SUPPORT	-

RADIATOR, SHROUD, OVERFLOW TANK AND MOUNTING BRACKETS [D15]

Нет текстового описания
