PROPEL MOTOR (SERIAL NO -001395) [A21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	( AT110193 NO LONGER AVAILABLE)
2	-	1	Part 2	-
4	-	4	Part 3	( T111252 NO LONGER AVAILABLE)
5	T111229	1	SPACER	-
6	T111230	4	BOLT	-
7	T111231	1	PLUG	-
8	T111232	1	PLUG	-
9	T111233	1	HOUSING	-
10	T111234	2	PLUG	-
11	T111235	2	Ball	-
12	T111236	1	HYD ACTUATED CONTROL VALVE	-
13	T111237	1	ROLLER	-
14	T111238	1	DRIVE	-
15	T111239	2	PIN FASTENER	-
16	T111240	2	SPRING	-
17	T111241	1	PLATE	-
18	T111242	1	HYD ACTUATED CONTROL VALVE	-
19	T111243	1	PLATE	-
20	T111244	1	SPACER	-
21	T111245	1	SUN GEAR	-
22	T111246	1	BUSHING	-
23	19M8627	10	Screw	M6 X 20, (SUB FOR T111247)
24	AT110550	1	KIT	-
25	T111248	4	THRUST WASHER	-
26	T111249	4	GEAR	(O.D. 2.05 X I.D. 1.81 X WIDTH .905)
27	T111250	4	NEEDLE BEARING	(O.D. 1.181 X I.D. .866 X WIDTH .700)
28	T111251	4	THRUST WASHER	-
29	-	1	Part 28	(WITH SHAFT) ( T114143 NO LONGER AVAILABLE FOR SERVICE)
30	T111253	1	HOUSING	-
31	T111254	1	RING	-
32	T111255	1	SHIM	-
33	T111256	2	BALL BEARING	-
34	T114243	1	SEAL KIT	(SUB FOR AT110551)
35	T111257	1	PIN	-
36	15H666	2	Pipe Plug	3/8"
37	T111839	1	SNAP RING	-
38	CH17291	4	Snap Ring	-
39	AT110195	1	HYD ACTUATED CONTROL VALVE	-
40	AT110552	1	SEAL	-
41	-	1	Part 40	( AT111789 NO LONGER AVAILABLE)
42	AT111790	1	HYDRAULIC MOTOR	-
43	-	1	Part 42	(K)
44	-	1	Part 43	(K)
45	-	1	Part 44	(K)
46	-	1	Part 45	(K)
47	-	1	Part 46	(K)
48	-	1	Part 47	(K)
49	-	1	Part 48	(K)
50	-	1	Part 49	(K)
51	-	1	Part 50	(K)
52	-	1	Part 51	(K)
53	-	1	Part 52	(K)
54	-	1	Part 53	(K)
55	T114247	1	SEAL KIT	(SUB FOR AT110549)
60	-	1	Part 55	(SUB AT111790) ( AT110194 NO LONGER AVAILABLE)

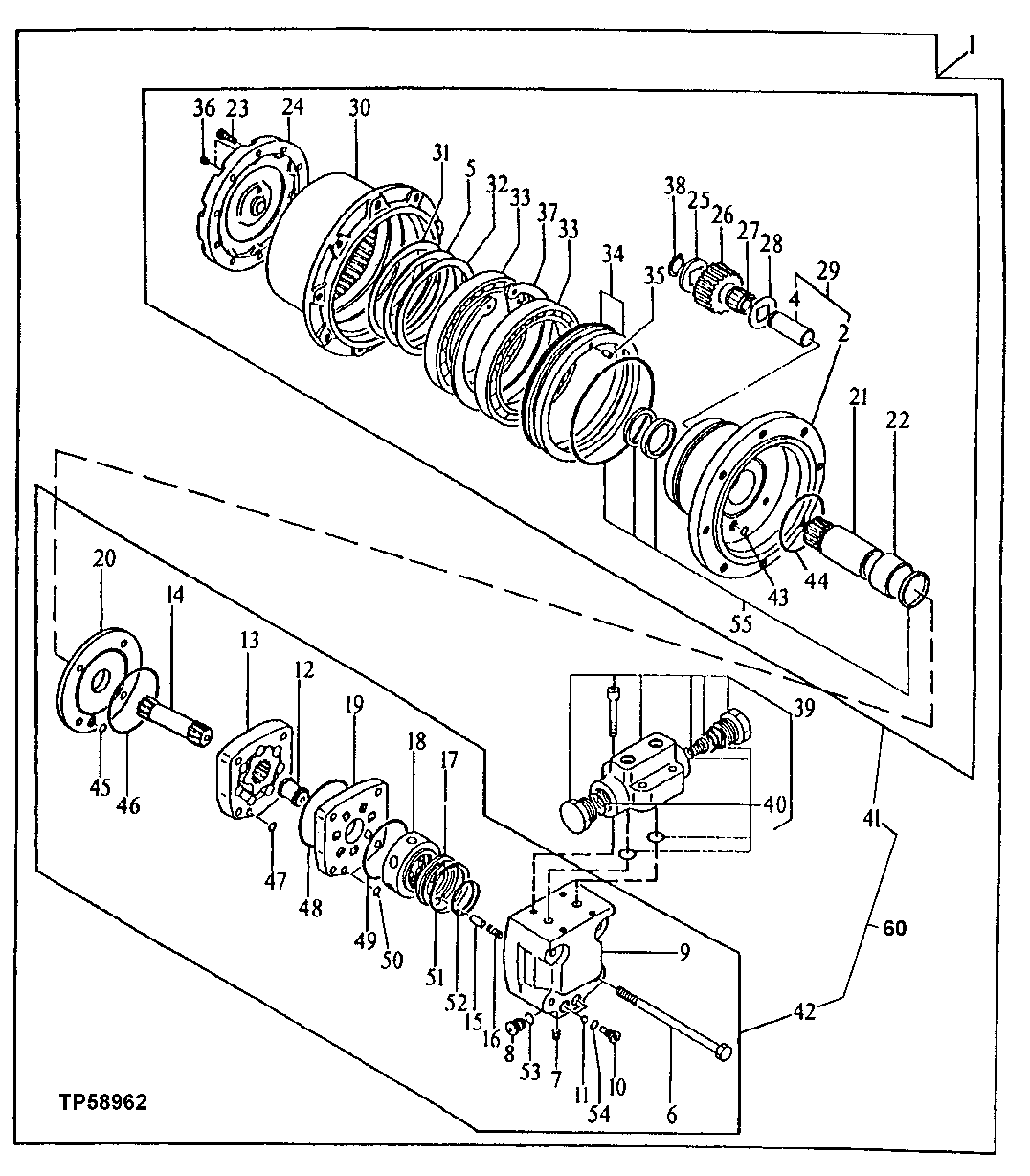

PROPEL MOTOR (SERIAL NO -001395) [A21]
