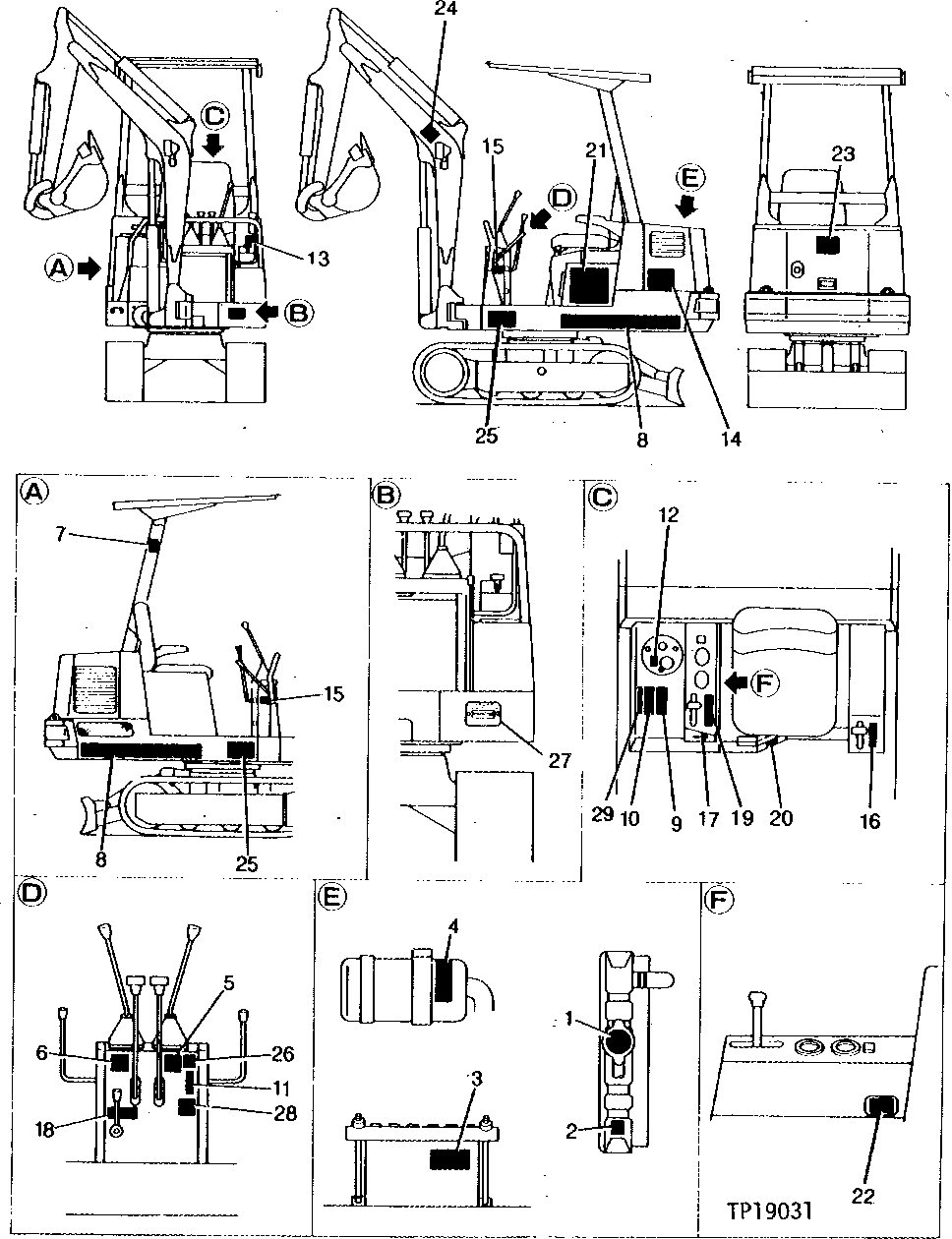

NAME PLATE AND LABELS (WITHOUT CAB) [E06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CH15946	1	Label	(RADIATOR CAP)
2	T111705	1	LABEL	(ANTI-FREEZING)
3	T114197	1	SAFETY SIGN	(SUB FOR T111023 AND T114159) (BATTERY)
4	T111137	1	LABEL	(AIR CLEANER)
5	T111706	1	LABEL	(OPERATION)
6	T111707	1	LABEL	(OPERATION)
7	T113964	1	LABEL	(SUB FOR T111708)
8	JD5647	2	LABEL	(SUB FOR T111709) (JOHN DEERE LOGO)
9	T111988	1	LABEL	-
10	-	1	Part 10	(CAUTION) ( T111711 NO LONGER AVAILABLE FOR SERVICE)
11	4149203	1	LABEL	(SUB FOR T111712) (SUB FOR TH101569) (CONTROL LEVER LOCK)
12	T101942	1	Label	(SUB FOR T111713) (HYDRAULIC OIL)
13	T79632	1	Label	(SUB FOR T111714) (DIESEL ONLY)
14	-	1	Part 14	(CAUTION) ( T111715 NO LONGER AVAILABLE FOR SERVICE)
15	T105883	2	SAFETY SIGN	(SUB FOR T111716) (WARNING)
16	T111717	1	LABEL	(ACCELERATOR)
17	T111718	1	LABEL	(KEY SWITCH)
18	T111973	1	LABEL	(SUB FOR T111719)
19	T111720	1	LABEL	(BLADE)
20	T111721	1	LABEL	(SWING LOCK)
21	T111722	1	LABEL	(PERIODIC MAINTENANCE CHART)
22	T111723	1	LABEL	(FUSE BOX)
23	JD5621	1	LABEL	(SUB FOR T111724) (LEAPING DEER)
24	JD5646	2	Label	(SUB FOR T111725) (LEAPING DEER)
25	T111726	2	LABEL	(MODEL DESIGNATION)
26	T111727	1	LABEL	(LEVER LOCK)
27	-	1	Part 27	(IDENTIFICATION)
28	T111729	1	LABEL	(THIRD VALVE)
29	T111989	1	SAFETY SIGN	-
