HOOD, COVERS AND SWING LOCK [F18]

HOOD, COVERS AND SWING LOCK [F18]

HOOD, COVERS AND SWING LOCK [F18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

HOOD, COVERS AND SWING LOCK [F18]

Нет текстового описания

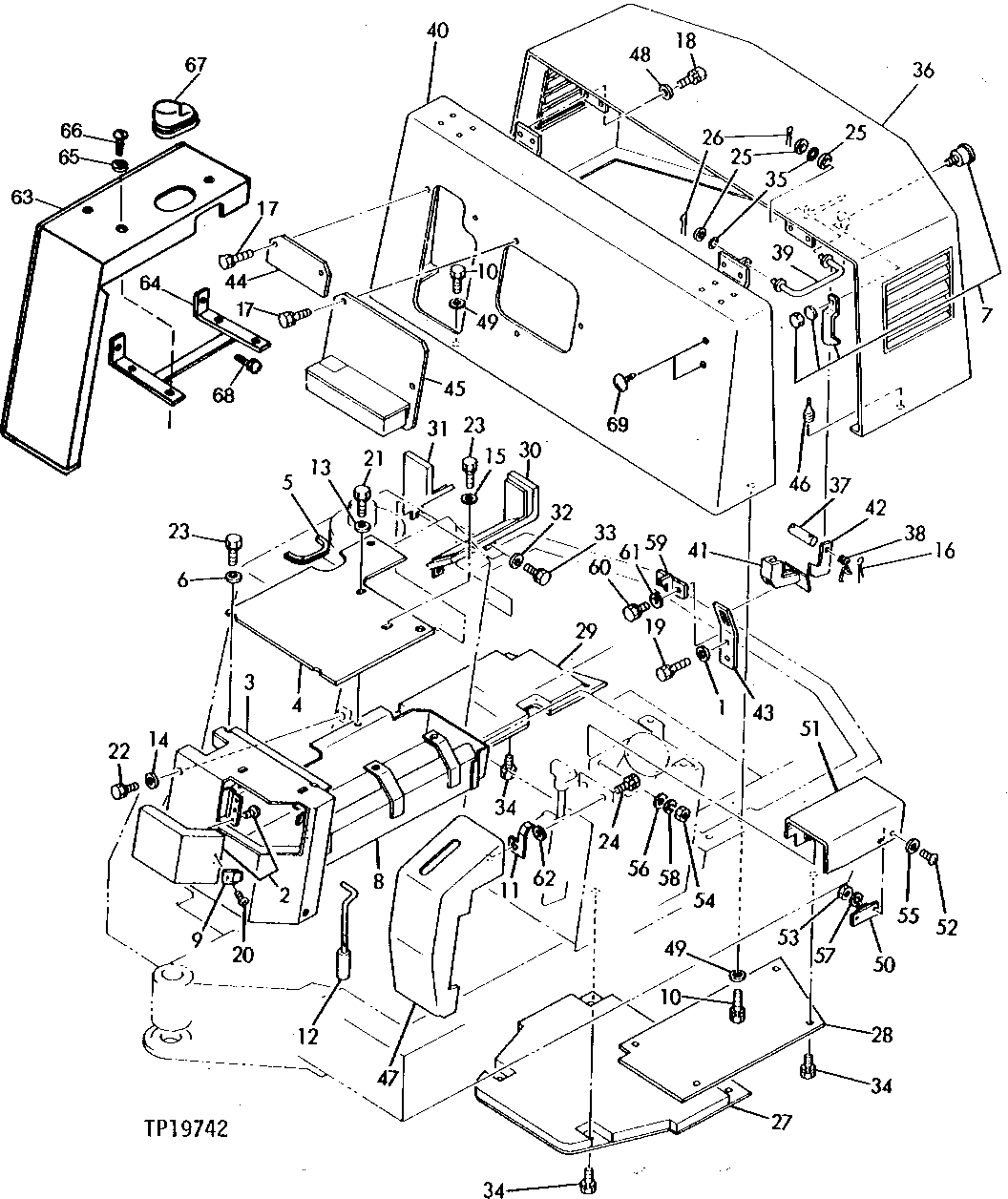

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7028	2	Washer	10.500 X 20 X 2 MM
2	AT110524	1	COVER	(TOOL BOX)
3	AT111829	1	COVER	-
3	AT111829	1	COVER	(SUB FOR AT110525) (SUB AT111829) (SWING MOTOR)
4	AT110526	1	COVER	(UNDER SEAT)
5	T111199	1	ISOLATOR	-
6	24M7024	2	Washer	9 X 28 X 3 MM
7	AT110499	1	KEY	-
8	AT110528	1	TOOLBOX	-
9	AT110529	1	CLAMP	-
10	12M7066	6	Lock Washer	10 MM
10	19M7402	6	Cap Screw	M10 X 25
11	T111197	1	BRACKET	-
12	AT111827	1	PIN	(SUB FOR AT110179)
13	24M7055	4	Washer	8.400 X 16 X 1.600 MM
14	24M7055	3	Washer	8.400 X 16 X 1.600 MM
15	24M7055	2	Washer	8.400 X 16 X 1.600 MM
16	11M7078	2	Cotter Pin	2 X 20 MM
17	19M7923	4	Cap Screw	M6 X 12, (SUB FOR CH13781 ALONG WITH 12M7012)
17	12M7006	4	Lock Washer	6 MM
18	12M7056	4	Lock Washer	8 MM, (SUB FOR 12M7065)
18	19M7932	4	Cap Screw	M8 X 16
19	12M7066	2	Lock Washer	10 MM
19	19M7166	2	Cap Screw	M10 X 20
20	T111310	4	SCREW	-
21	12M7056	4	Lock Washer	8 MM, (SUB FOR 12M7065)
21	19M7932	4	Cap Screw	M8 X 16
22	12M7056	3	Lock Washer	8 MM, (SUB FOR 12M7065)
22	19M7932	3	Cap Screw	M8 X 16
23	19M7932	4	Cap Screw	M8 X 16
23	12M7056	4	Lock Washer	8 MM, (SUB FOR 12M7065)
24	12M7066	3	Lock Washer	10 MM
24	19M8324	3	Cap Screw	M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)
25	24M7024	3	Washer	9 X 28 X 3 MM
26	11M7094	2	Cotter Pin	1.600 X 16 MM
27	AT110181	1	COVER	(UNDER ENGINE)
28	T110331	1	COVER	-
29	AT111836	1	COVER	(SUB FOR AT110182)
30	AT110183	1	PLATE	-
31	AT110184	1	PLATE	-
32	24M7055	3	Washer	8.400 X 16 X 1.600 MM
33	12M7056	3	Lock Washer	8 MM, (SUB FOR 12M7065)
33	19M7932	3	Cap Screw	M8 X 16
34	12M7066	12	Lock Washer	10 MM
34	19M7166	12	Cap Screw	M10 X 20
35	T110375	2	SPRING WASHER	-
36	AT110536	1	CAP	(ENGINE HOOD)
37	T110393	1	PIN	-
38	T110394	1	SPRING	-
39	AT110187	1	ROD	-
40	AT111837	1	COVER	(SUB FOR AT110537)
41	AT110127	1	LEVER	-
42	T110251	1	LATCH	-
43	T110252	1	PLATE	-
44	T110336	1	COVER	-
45	AT110535	1	PLATE	-
46	T110337	4	ISOLATOR	-
47	AT110527	1	COVER	(CONSOLE, LEFT)
48	24M7055	4	Washer	8.400 X 16 X 1.600 MM
49	CH11118	6	Washer	-
50	T110288	1	CATCH	-
