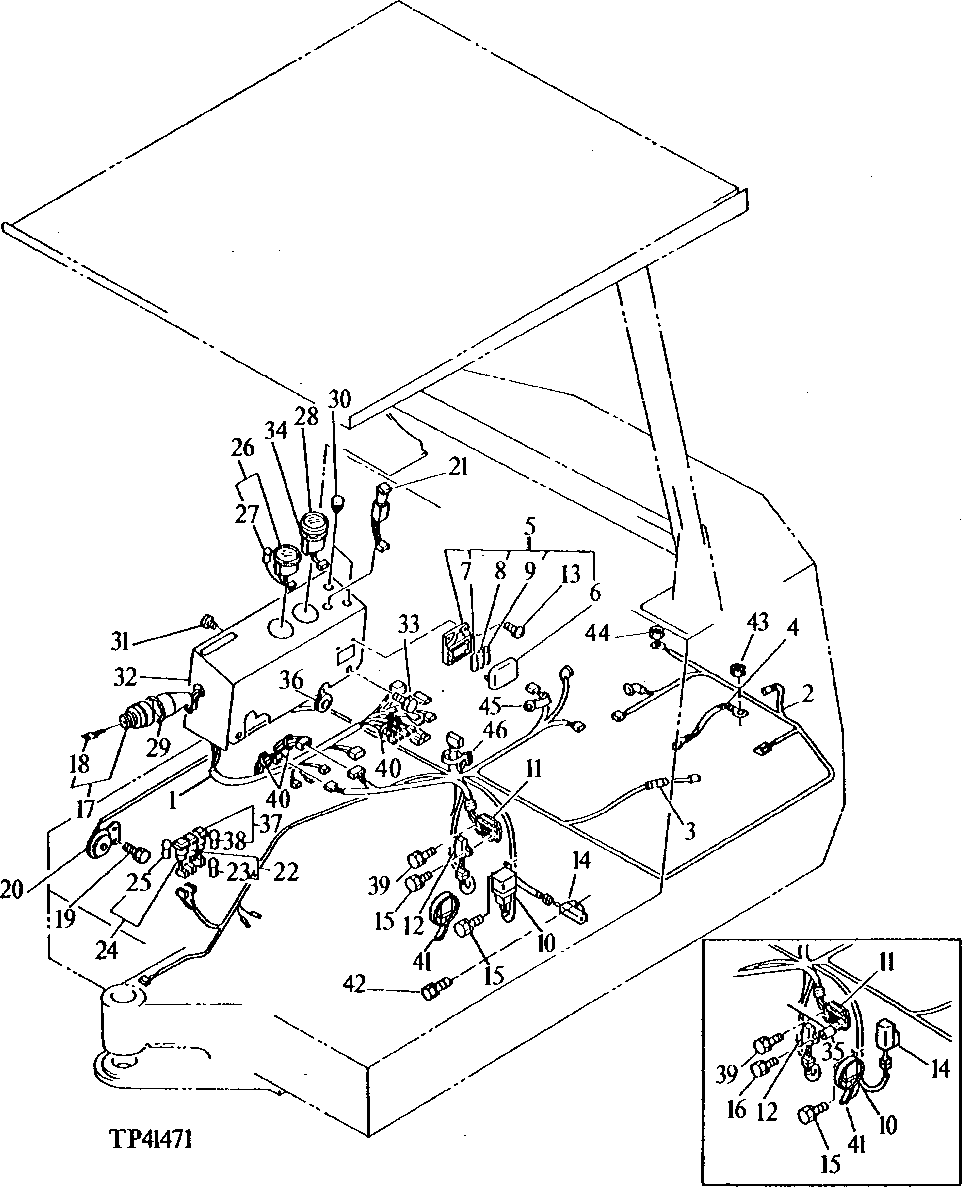

GAUGES, SWITCHES AND LIGHTS (WITH CANOPY) [E22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T110309	1	WIRING HARNESS	-
2	-	1	Part 2	( T111190 NO LONGER AVAILABLE)
3	T110092	1	LINK	(FUSIBLE)
4	T110624	1	Ground Cable	(GROUND)
5	AT110212	1	FUSE BOX	-
6	T110400	1	COVER	-
7	CH11320	1	FUSE	(5A) COOLANT TEMPERATURE AND ENGINE OIL INDICATORS
8	CH11321	2	FUSE	(10A) (FUEL TRANSFER PUMP HEATER AND LIGHTS)
9	AT39227	2	Fuse	(SUB FOR CH11322 OR T116143) (15A) WIPER AND HORN
10	T111000	1	RELAY	(SAFETY)
11	T110995	1	REGULATOR	-
12	T111001	1	INDICATOR LAMP	-
13	M801342	2	SCREW WITH WASHER	-
14	T111002	1	Resistor	(GLOW RESISTOR)
15	CH19135	2	BOLT	-
16	T110451	1	Bolt	-
17	AT110584	1	SWITCH	(IGNITION)
18	AT110583	1	KEY	-
19	CH13781	2	Bolt	-
20	T110480	1	HORN	-
21	T110370	1	SWITCH	(LIGHT)
22	AT110216	1	LAMP	(ALTERNATOR)
23	T110522	1	BULB	-
24	AT110217	1	LAMP	(OIL)
25	T110522	1	BULB	-
26	AT110589	1	TEMPERATURE GAUGE	-
27	T111335	1	BULB	-
28	T110524	1	HOUR METER	-
29	T111336	1	COVER	-
30	T110011	2	GROMMET	-
31	T110323	2	Screw	-
32	AT110185	1	PANEL	-
33	CH13781	2	Bolt	-
34	T110388	1	WASHER	-
35	T110402	1	BUSHING	-
36	T110622	1	GROMMET	-
37	AT110593	1	LAMP	-
38	T110522	1	BULB	-
39	CH19135	1	BOLT	-
40	T110612	3	TIE BAND	(SUB FOR T110311, THIS APPLICATION)
41	T111739	1	TIE BAND	-
42	CH19135	1	BOLT	-
43	14M7274	1	Nut	M10
44	14M7139	1	Nut	M4
45	T111144	1	CLAMP	-
46	T111739	1	TIE BAND	-

GAUGES, SWITCHES AND LIGHTS (WITH CANOPY) [E22]
