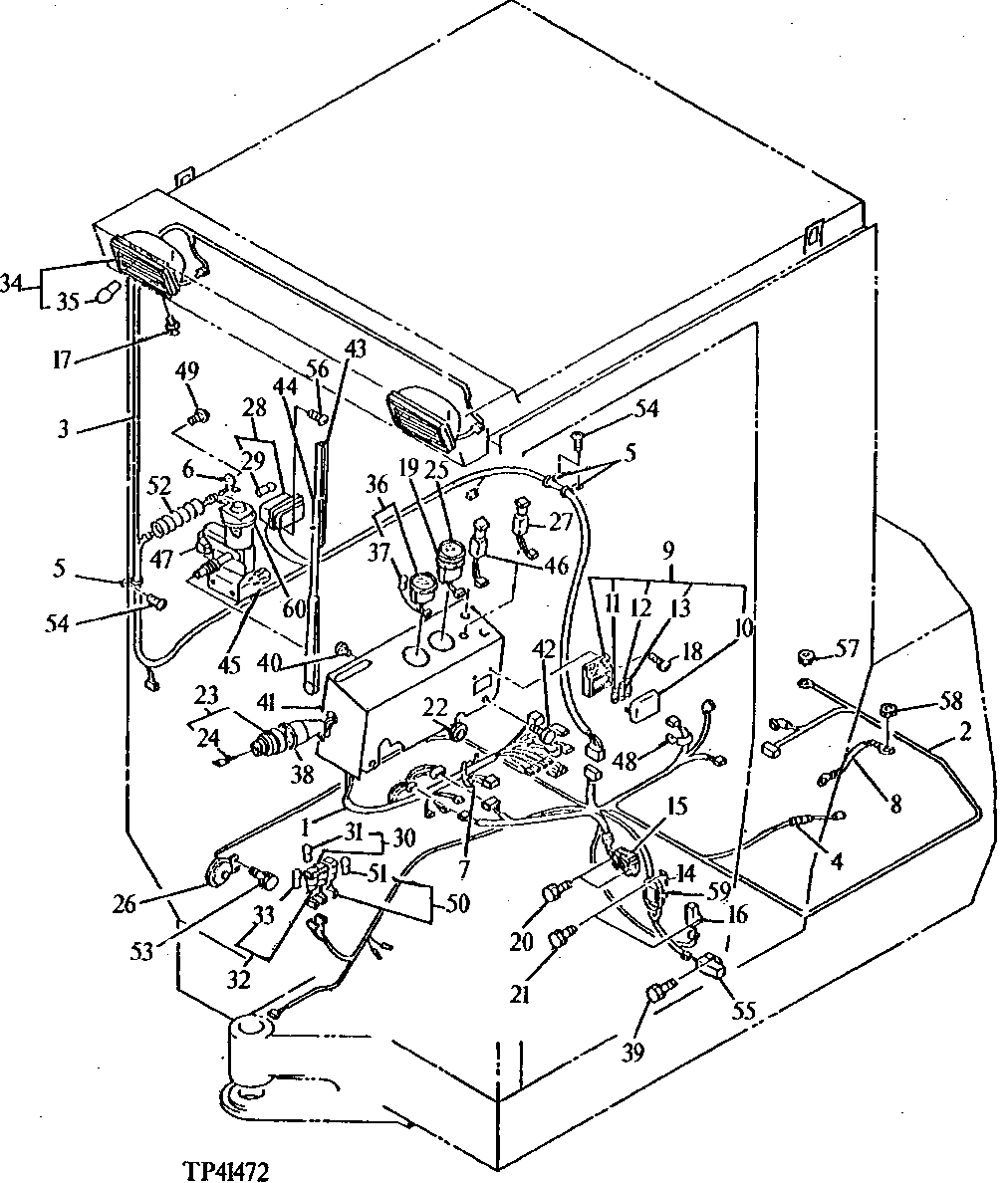

GAUGES, SWITCHES AND LIGHTS (WITH CAB) [E24]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T110309	1	WIRING HARNESS	-
2	-	1	Part 2	( T111190 NO LONGER AVAILABLE)
3	T113966	1	WIRING HARNESS	-
4	T110092	1	LINK	(FUSIBLE)
5	T110094	3	TIE BAND	-
6	T110094	1	TIE BAND	-
7	T110612	3	TIE BAND	-
8	T110624	1	Ground Cable	(GROUND)
9	AT110212	1	FUSE BOX	-
10	T110400	1	COVER	-
11	CH11320	1	FUSE	(5A) (COOLANT TEMPERATURE AND ENGINE OIL INDICATORS)
12	CH11321	2	FUSE	(10A) (FUEL TRANSFER PUMP HEATER AND LIGHTS)
13	AT39227	2	Fuse	(SUB FOR CH11322 OR T116143) (15A) (WIPER AND HORN)
14	T111000	1	RELAY	(SAFETY)
15	T110995	1	REGULATOR	-
16	T111001	1	INDICATOR LAMP	-
17	19M7932	2	Cap Screw	M8 X 16
17	12M7056	2	Lock Washer	8 MM, (SUB FOR 12M7065)
18	M801342	2	SCREW WITH WASHER	-
19	T110388	1	WASHER	-
20	19M7077	2	Cap Screw	M6 X 20
20	12M7006	2	Lock Washer	6 MM
21	19M7077	2	Cap Screw	M6 X 20
21	12M7006	2	Lock Washer	6 MM
22	T110622	1	GROMMET	-
23	AT110584	1	SWITCH	(IGNITION)
24	AT110583	1	KEY	-
25	T110524	1	HOUR METER	-
26	T110480	1	HORN	-
27	T110370	1	SWITCH	(LIGHT)
28	AT111676	1	LAMP	-
29	T113967	1	BULB	-
30	AT110216	1	LAMP	(ALTERNATOR)
31	T110522	1	BULB	-
32	AT110217	1	LAMP	(OIL)
33	T110522	1	BULB	-
34	AT111677	2	FLOODLAMP	-
35	T111740	1	BULB	-
36	AT110589	1	TEMPERATURE GAUGE	-
37	T111335	1	BULB	-
38	T111336	1	COVER	-
39	19M7077	2	Cap Screw	M6 X 20
39	12M7006	2	Lock Washer	6 MM
40	T110323	2	Screw	-
41	AT110185	1	PANEL	-
42	12M7006	2	Lock Washer	6 MM
42	19M7923	2	Cap Screw	M6 X 12
43	TY16302	1	WIPER BLADE	(SUB FOR T110387) (ALSO ORDER TY16312)
44	T113968	1	WIPER ARM	-
45	T111315	3	SCREW WITH WASHER	-
46	T110520	1	SWITCH	-
47	T113969	1	WIPER MOTOR	-
48	T111144	1	CLAMP	-
49	21M7209	1	Screw	M4 X 10
50	AT110593	1	LAMP	-
51	T110522	1	BULB	-
52	T113970	1	POWER CORD	-
53	12M7006	2	Lock Washer	6 MM
53	19M7923	2	Cap Screw	M6 X 12
54	T110426	3	SCREW	-
55	T111002	1	Resistor	-
56	T110426	2	SCREW	-
57	14M7139	1	Nut	M4
58	14M7274	1	Nut	M10
59	T111739	1	TIE BAND	-
60	CH16579	1	Clamp	-

GAUGES, SWITCHES AND LIGHTS (WITH CAB) [E24]
