Открытый узел

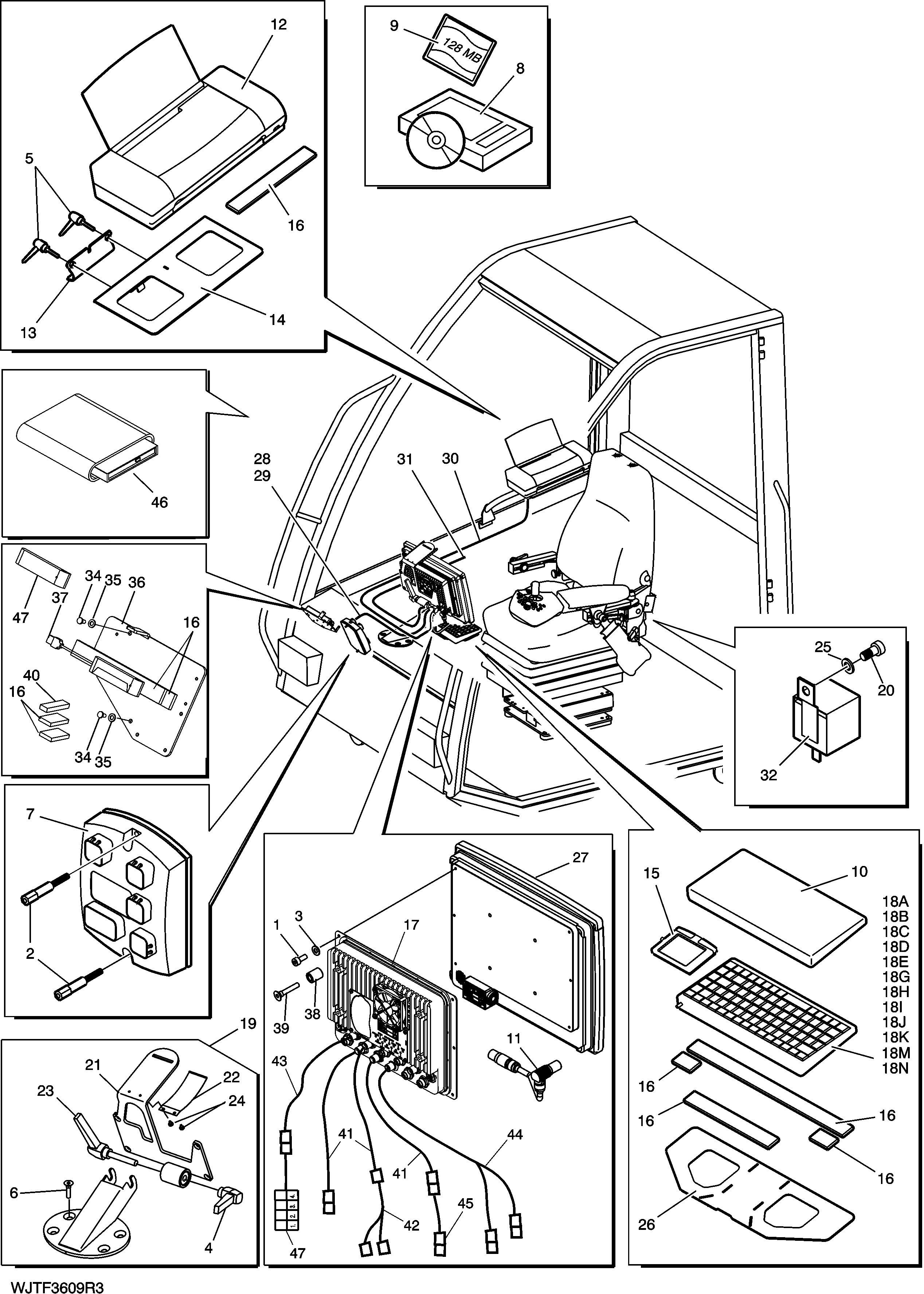

Control Unit and Measuring Device (001040 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9471	6	Screw	M4 X 10
2	21M7547	2	Screw	M5 X 25
3	24M7501	6	Washer	4.300 X 9 X 0.800 mm
4	F067401	1	Lever	-
5	F054607	2	Control Lever	-
6	19M9562	4	Screw	M8 X 30
7	F064578	1	Module	Hub Module
8	F064487	1	Software	-
9	F069602	1	COMPUTER HARDWARE ITEM	128 Mb, NLA; ORDER F688498
10	F064685	1	Cover	-
11	F070469	1	Wiring Harness	Display Cable
12	F721149	1	Computer Accessory	Printer
12	F073088	1	Computer Hardware Item	Printer, SUB FOR F070434; NLA; ORDER F721149
13	F619056	1	BRACKET	-
14	F619077	1	BRACKET	-
15	F628502	1	Computer Hardware Item	-
16	-	1	Part 17	NLA; CTL x, MF F061192
17	F660551	1	Computer Hardware Item	See Service Solution 89875, SUB FOR F070191
17	F070757	1	Microcomputer	Hard Disk
17	F070831	1	Computer Hardware Item	Axial Fan
17	F072780	1	Lithium Battery	-
17	F072999	1	Wiring Harness	LGTH = 5 m, Ethernet Cable
19	F639582	1	Display Fixture	-
20	19M9674	1	Cap Screw	M6 X 12
21	F639562	1	BRACKET	-
22	F622216	1	SPRING	-
23	F065145	1	LEVER	-
24	F024662	2	SCREW	-
25	F042804	1	LOCK WASHER	-
26	F629665	1	Bracket	-
27	F704968	1	Microcomputer	-
27	F070192	1	Monitor	12 in., Display, NLA; ORDER F704968
27	F070193	1	Monitor	10 in., Display, NLA
28	F065341	1	Wiring Harness	COMPONENTS ON SEPARATE PAGE, CAN XD1-XH1
29	-	1	Part 47	COMPONENTS ON SEPARATE PAGE, CAN XC11-P4
30	F640177	1	Wiring Harness	Printer Power Cable
31	F640177	1	Wiring Harness	Power Supply XC12-XC5, COMPONENTS ON SEPARATE PAGE
32	F005313	1	Audible Warning Alarm	-
34	21M7543	2	SCREW	M5 X 10
35	24M7506	2	Washer	6.400 X 12 X 1.600 mm
36	F642871	1	BRACKET	-
37	F070873	1	Computer Hardware Item	USB Hub
37	F642930	1	Wiring Harness	USB Hub Power Cable
38	F639963	4	Bushing	-
39	F018949	4	SCREW	-
40	F688498	1	Computer Hardware Item	USB Memory Stick, SUB FOR F070756
41	F070471	3	Wiring Harness	USB Adapter
42	F070760	1	Computer Hardware Item	USB to PS2 Adapter
43	F070472	1	Wiring Harness	Option USB Adapter Cable
44	F070474	1	Wiring Harness	Option Cable Video Adapter
44	F074475	1	Cable	LGTH = 2.5 m, VGA Cable for Monitor
45	F070871	1	Computer Hardware Item	Option 2-Port USB to Adapter
46	F070668	1	Computer Hardware Item	Option DVD-RW Writer, NLA; ORDER F072310
46	F072310	1	Computer Hardware Item	Option DVD-RW Writer, NLA
46	F071171	1	Bag	With DVD Drive, NLA
47	F071050	1	Computer Hardware Item	Older USB-HUB, When there is no DVD (without bracket and cable), NLA; ORDER F070873
18A	F064442	1	Computer Hardware Item	See Solution 118398 Keyboard, Finnish/Swedish, NLA
18B	F064443	1	Computer Accessory	Keyboard, English, Poland
18C	F065290	1	Computer Hardware Item	Keyboard, Russian
18D	F065291	1	Computer Hardware Item	Keyboard, German
18E	F065292	1	Computer Accessory	Keyboard, French
18G	F065294	1	Computer Hardware Item	Keyboard, Norwegian
18H	F065295	1	Computer Accessory	See Solution 118398 Keyboard, English, U.S.A, NLA
18I	F065296	1	Computer Hardware Item	Keyboard, Portugese
18J	F065297	1	Computer Hardware Item	Keyboard, Spanish
18K	F065298	1	Computer Hardware Item	See Solution 118398 Keyboard, Danish, NLA
18M	F066414	1	Computer Accessory	See Solution 118398 Keyboard, Belgium, NLA
18N	F066415	1	Computer Accessory	See Solution 118398 Keyboard, Czech, NLA

Control Unit and Measuring Device (001040 - )
