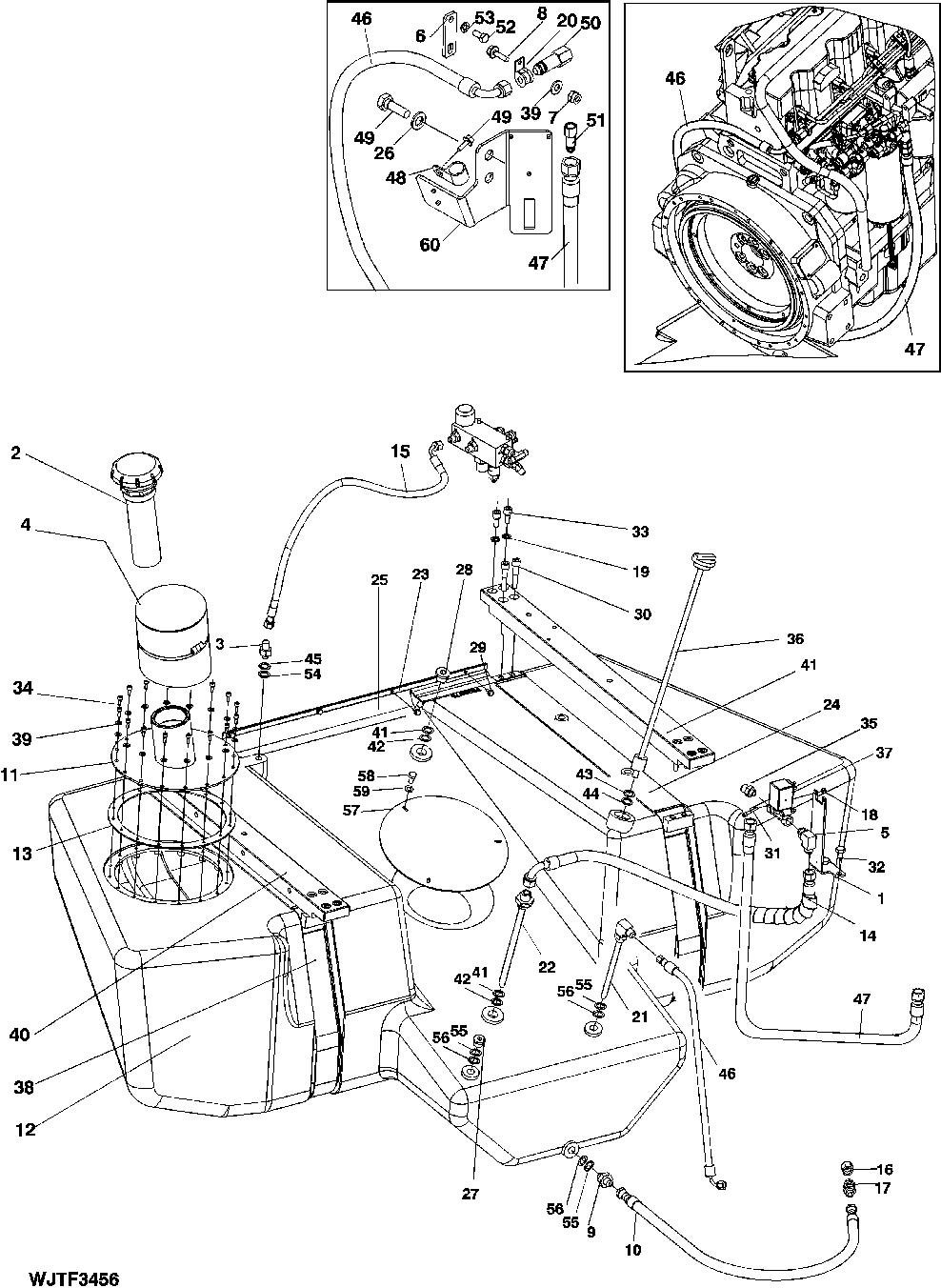

FUEL TANK, FROM SERIAL NO. 0274- [01H17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F630872	1	Bracket	-
2	F004299	1	BREATHER	-
3	F022423	1	Fitting	(REPLACES F021177)
4	F638118	1	Guard	-
5	F028738	1	Elbow Fitting	-
6	F624520	1	SUPPORT	-
7	14M7625	1	Lock Nut	M6
8	19M9444	1	Screw	M6 X 20
9	F005059	1	Fitting	-
10	F071671	1	Fuel Line	(REPLACES F057620)
11	F618994	1	FUEL LINE	-
12	F639092	1	FUEL TANK	-
13	F618995	1	GASKET	-
14	F065984	1	FUEL LINE	L= 900
14	F032109	1	Hose Guard	L= 600
14	F005334	1	Tie Band	-
15	F044884	1	Hydraulic Hose	L= 800
16	F026188	1	Fitting	-
17	F013269	1	Nut	-
18	F003586	2	LOCK NUT	-
19	F002805	8	Lock Washer	-
20	F028843	1	Hose Support	-
21	F639151	1	PIPE	-
22	F630969	1	PIPE	-
23	F629943	1	PLATE	-
24	F622933	2	PLATE	-
25	F629942	1	PLATE	-
26	24M7497	2	Washer	17 X 30 X 3 MM
27	F005570	1	PLUG	-
28	F018067	2	PLUG	-
29	19M9566	4	Screw	M6 X 12
30	19M9716	8	Screw	M12 X 60
31	19M9729	2	Screw	M6 X 40
32	19M9645	2	Cap Screw	M12 X 16
33	19M9713	8	Screw	M12 X 30
34	19M9724	16	Screw	M6 X 16
35	F012534	1	Fitting	-
36	F122636	1	SENDER	-
37	F063889	1	SOLENOID VALVE	-
38	F618813	1	HANGER	-
39	24M7504	16	Washer	6.600 X 12 X 1.600 MM
40	F618764	1	YOKE	-
41	F618809	1	YOKE	FIELD KIT PART, TO 1/2 INCH CONNECTION
42	F026904	1	O-Ring	FIELD KIT PART, TO 1/2 INCH CONNECTION
42	F005501	1	O-RING	FIELD KIT PART, TO 3/4 INCH CONNECTION
43	F630590	1	FLANGE	FIELD KIT PART, TO 1/2 INCH CONNECTION
43	F639593	1	FLANGE	FIELD KIT PART, TO 3/4 INCH CONNECTION
44	F005500	1	O-RING	FIELD KIT PART, TO 1/2 INCH FLANGE CENTERING
44	F017349	1	O-RING	FIELD KIT PART, TO 3/4 INCH FLANGE CENTERING
45	F005061	1	Fitting	FIELD KIT PART
46	F062981	1	FUEL LINE	L= 1650
46	F063963	1	FUEL LINE	L= 1400
46	F063949	1	FUEL LINE	L= 2800, WITH COOLER
47	F066391	1	FUEL LINE	L= 1400
48	F038308	1	HOSE SUPPORT	-
49	19H3952	2	Cap Screw	15.875 X 44.450 MM
50	F631996	1	Adapter Fitting	-
51	F631854	1	Adapter Fitting	-
52	19H3950	1	Cap Screw	9.525 X 19.050 MM
53	F005551	1	Lock Washer	-

FUEL TANK, FROM SERIAL NO. 0274- [01H17]
