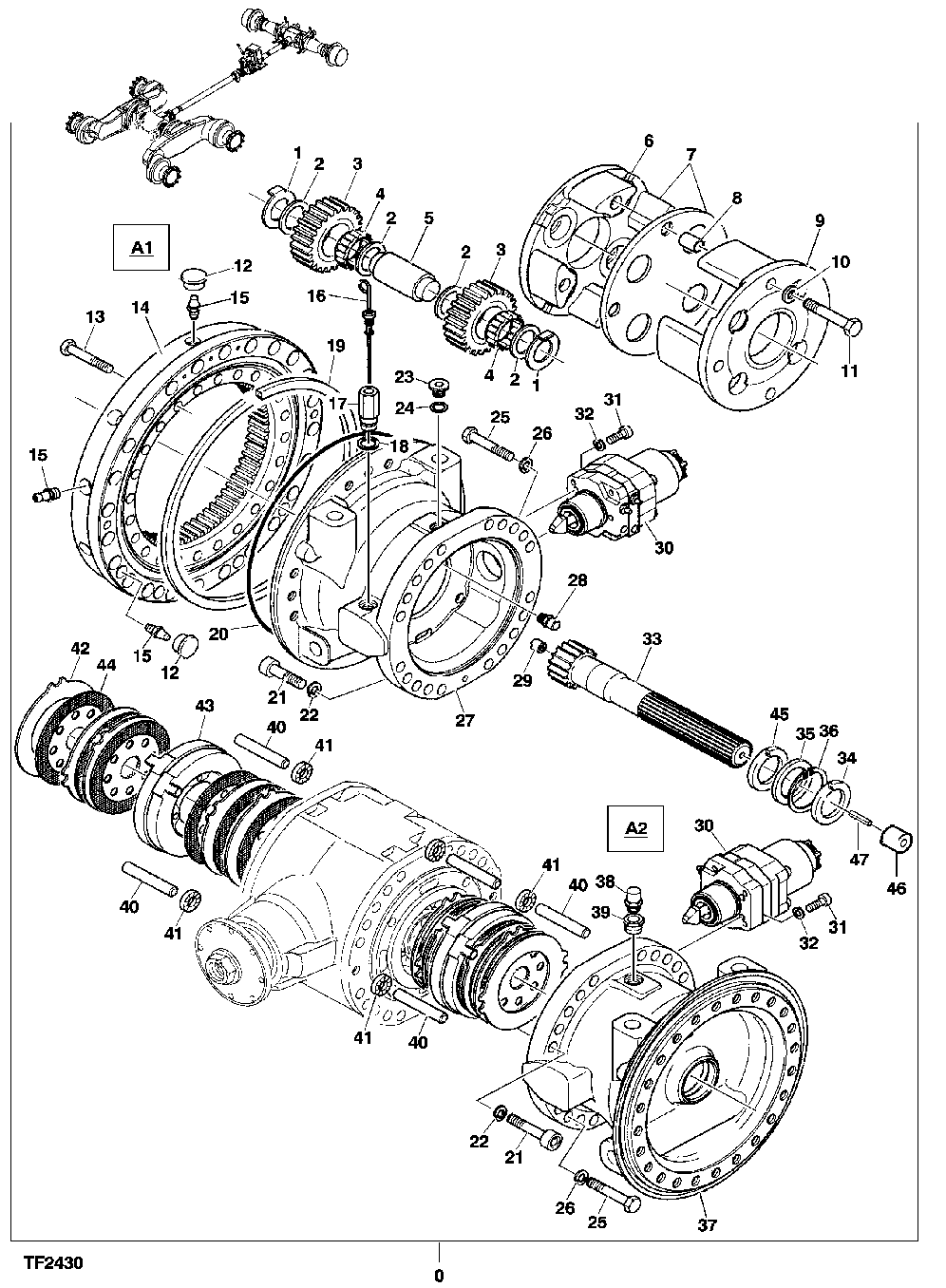

FRONT AXLE,PLANETARY GEARING LOK 121, LOK 137 [01B19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F057768	1	PLANETARY ASSEMBLY	A2 LOK 121
0	F057769	1	PLANETARY ASSEMBLY	A1 LOK 121
1	F047363	16	Lock Washer	-
2	F053026	32	SHIM	-
3	F058488	16	Gear	-
4	F053028	16	CYLINDRICAL ROLLER BEARING	-
5	F053027	8	Shaft	-
6	F053030	2	Housing	-
7	F053025	4	Plate	-
8	F053024	8	Sleeve	-
9	F053029	2	Housing	-
10	F040427	8	Washer	-
11	F053042	8	Screw	-
12	F047352	20	Plug	-
13	F047340	48	Screw	-
14	F053037	2	BEARING	USED IN LOK 121
14	F065391	2	Swing Bearing	USED IN LOK 137
15	58M5575	20	Lubrication Fitting	-
16	F047366	1	Dipstick	A2 SIDE FROM LOK 137/3 SERIAL NO. 47-
17	F053019	1	Fitting	A2 SIDE FROM LOK 137/3 SERIAL NO. 47-
18	F018108	1	Washer	A2 SIDE FROM LOK 137/3 SERIAL NO. 47-
19	F053023	2	Spacer	-
20	F047346	2	O-Ring	-
21	F047343	8	Cap Screw	-
22	F047349	8	Washer	-
23	F025332	1	Plug	-
24	F018108	1	Washer	-
25	F047339	32	Screw	-
26	F047349	32	Washer	-
27	F053022	1	PLANETARY ASSEMBLY	TO LOK 137/3 SERIAL NO.-46
27	F070786	1	HOUSING	FROM LOK 137/3 SERIAL NO. 47-
28	F009489	2	Breather	-
29	F025324	2	Bolt	-
30	-	2	Part 34	SEE PAGE 0252-2-6
31	F047342	6	Self-Locking Screw	-
32	F053018	6	Lock Washer	-
33	F047336	2	Shaft	-
34	F047345	2	Seal	-
35	F059122	2	Washer	-
36	F003376	2	CIRCLIP	UNNECESSARY FROM LOK 121 NO. 25-, NOT USED IN LOK 137
37	F053021	1	PLANETARY ASSEMBLY	TO LOK 137/3 SERIAL NO.-46
37	F070784	1	HOUSING	FROM LOK 137/3 SERIAL NO. 47-
38	F025304	1	Breather	-
39	F040529	1	Fitting	-
40	F047351	8	Pin	-
41	F047350	4	Lock Washer	-
42	F047367	12	Plate	-
43	F047356	2	Disk Brake Caliper Assy	-
44	F062284	12	Brake Disk	-
45	F059123	2	Seal	-
46	F066373	1	STUD	USED IN LOK 137
46	F066737	1	REAR AXLE	FROM LOK 137/2 SERIAL NO. 22-
47	F072724	1	SLEEVE	USED IN LOK 137

FRONT AXLE,PLANETARY GEARING LOK 121, LOK 137 [01B19]
