Harness Valve, Central Electrical System (091225 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7087	1	Elec. Connector Terminal	-
2	57M7254	1	Elec. Connector Housing	-
3	57M7328	1	Elec. Connector Housing	-
4	57M7344	1	Elec. Connector Housing	-
5	57M7534	1	Elec. Connector Housing	-
6	57M7751	1	Elec. Connector Housing	-
7	57M7796	1	Elec. Connector Housing	-
8	57M7822	1	Electrical Connector Assy	-
9	57M7850	1	Elec. Connector Housing	-
10	57M8156	1	Elec. Connector Housing	-
11	57M8195	1	Elec. Connector Housing	-
12	57M8196	1	Elec. Connector Housing	-
13	57M8197	1	Elec. Connector Housing	-
14	57M8272	1	Elec. Connector Housing	-
15	57M8281	1	Elec. Connector Housing	-
16	57M8873	1	Elec. Connector Terminal	-
17	57M8874	1	Elec. Connector Terminal	-
18	57M8900	1	Elec. Connector Terminal	-
19	R70213	1	Elec. Connector Housing	-
20	R78054	1	Electrical Connector Assy	-
21	R78054	1	Electrical Connector Assy	-
22	RE12363	1	Electrical Connector Assy	-
23	RE12364	1	Electrical Connector Assy	-
24	AZ61547	1	Elec. Connector Housing	-
25	AXE24145	1	Wiring Harness	-
26	R78053	4	Electrical Connector Assy	-

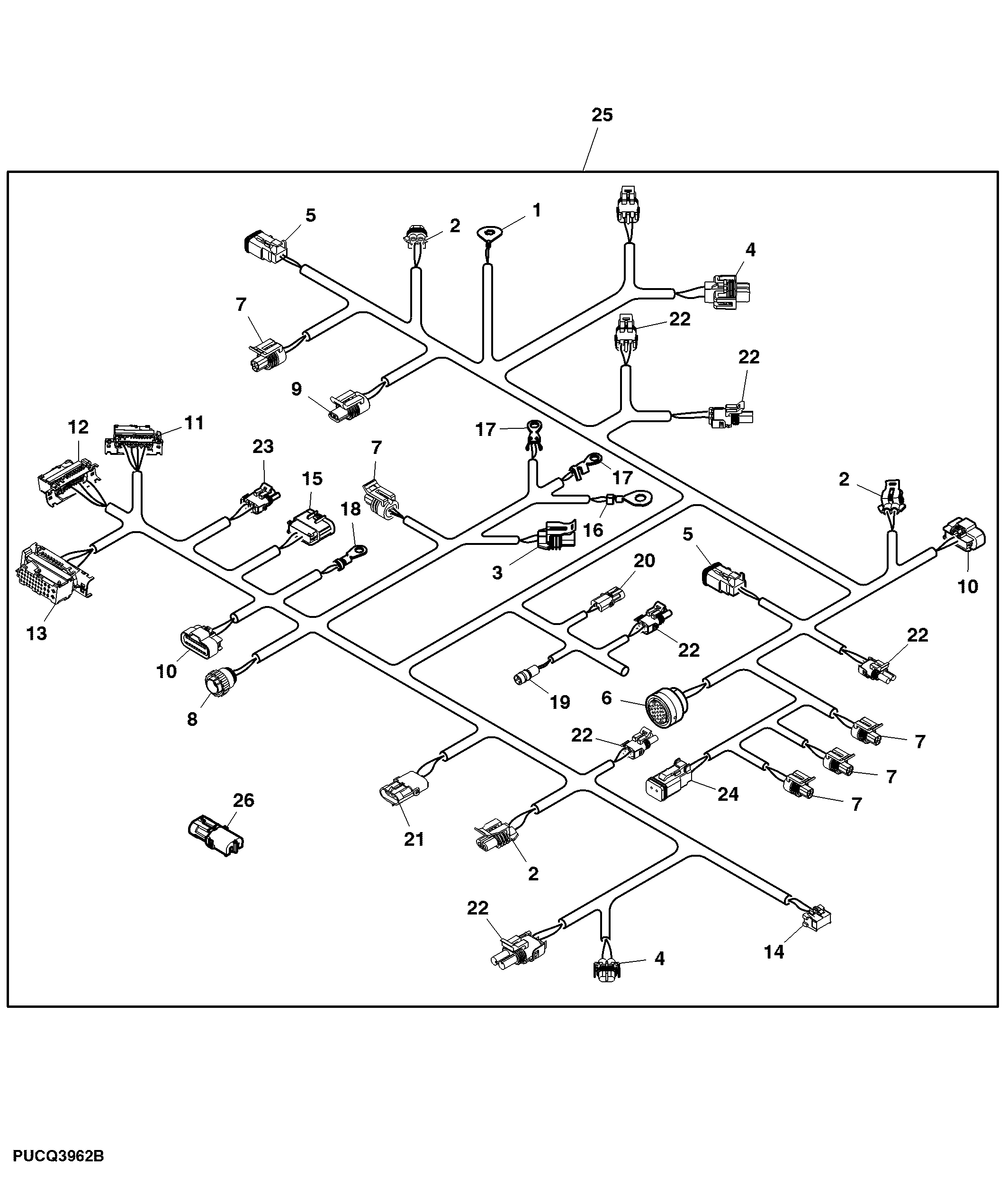

Harness Valve, Central Electrical System (091225 - )

Нет текстового описания
