Открытый узел

Harness, Valves and Electrical Central

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

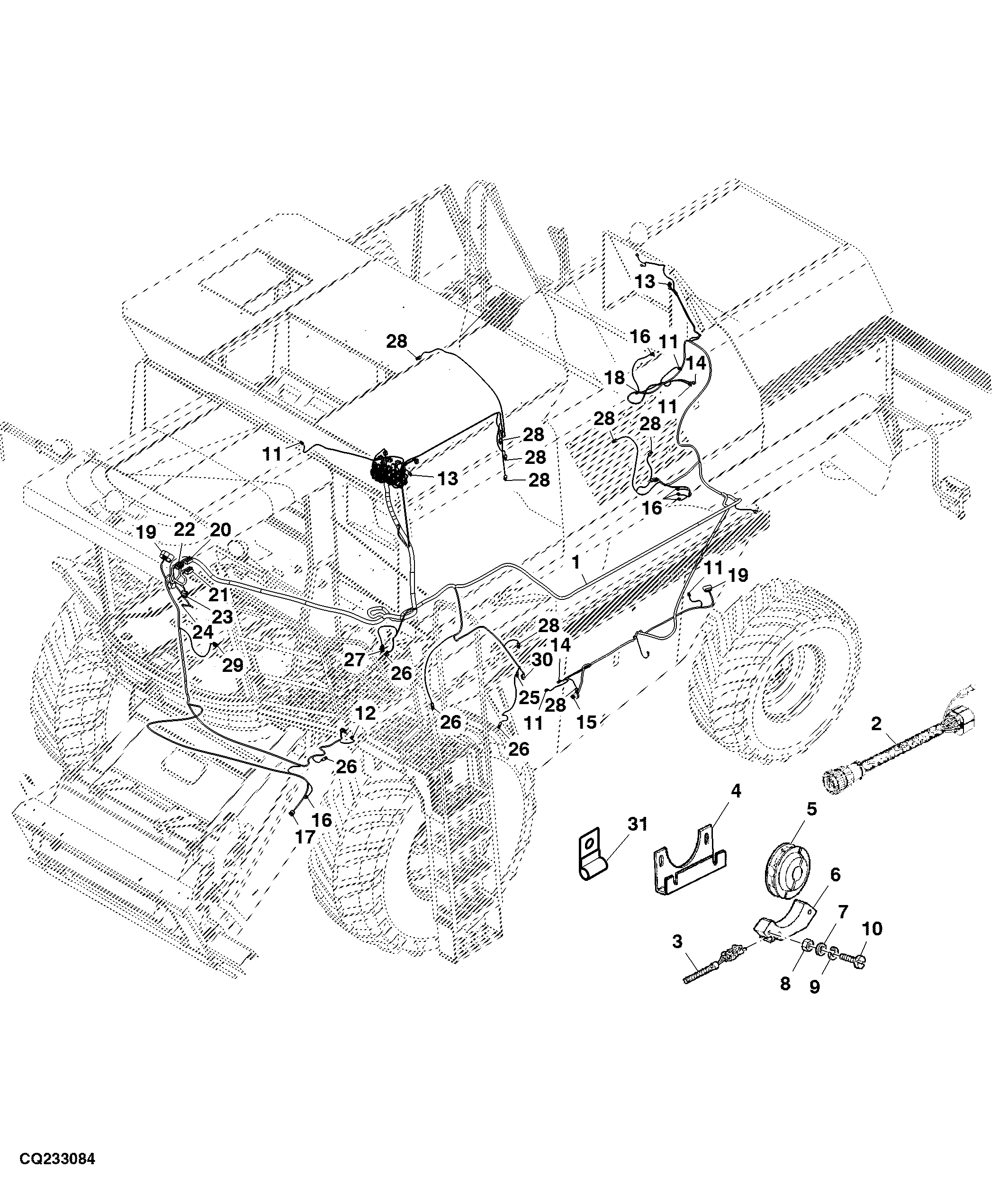

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE22153	1	Wiring Harness	-
1	DQ72615	1	Wiring Harness	-
1	AXE24145	1	Wiring Harness	-
2	DQ68493	1	Wiring Harness	-
3	DQ72166	1	Wiring Harness	-
4	CQ36428	1	Support	(CYLINDER SPEED SENSOR)
5	AZ46910	1	Sender	-
6	AZ46388	1	Solenoid	-
7	24M7027	1	Washer	5.300 X 10 X 1 mm
8	14M7028	1	Nut	M5
9	12M7064	1	Lock Washer	5 mm
10	21M7143	1	Screw	M5 X 30
11	57M7254	5	Elec. Connector Housing	-
12	57M7328	1	Elec. Connector Housing	-
13	57M7344	2	Elec. Connector Housing	-
14	57M7534	2	Elec. Connector Housing	-
15	57M7751	1	Elec. Connector Housing	-
16	57M7796	5	Elec. Connector Housing	-
17	57M7822	1	Electrical Connector Assy	-
18	57M7850	1	Elec. Connector Housing	-
19	57M8156	2	Elec. Connector Housing	-
20	57M8195	1	Elec. Connector Housing	-
21	57M8196	1	Elec. Connector Housing	-
22	57M8197	1	Elec. Connector Housing	-
23	57M8281	1	Elec. Connector Housing	-
24	57M8900	1	Elec. Connector Terminal	-
25	R70213	1	Elec. Connector Housing	-
26	R78053	4	Electrical Connector Assy	-
27	R78054	1	Electrical Connector Assy	-
28	RE12363	8	Electrical Connector Assy	-
29	RE12364	1	Electrical Connector Assy	-
30	AZ61547	1	Elec. Connector Housing	-
31	GA00101	13	Clamp	-

Harness, Valves and Electrical Central
