Тип техники

Бренд

Машина

Открытый узел

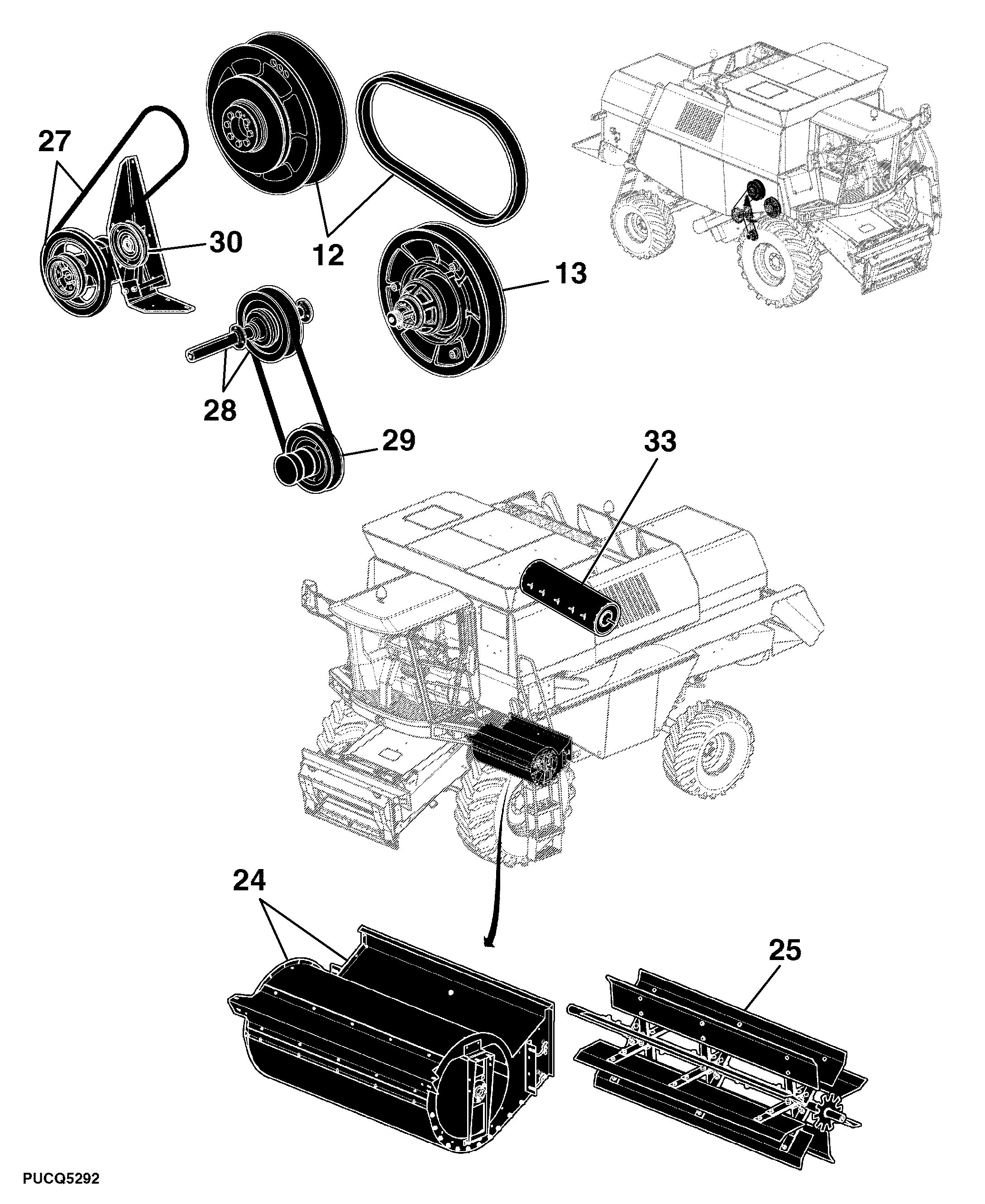

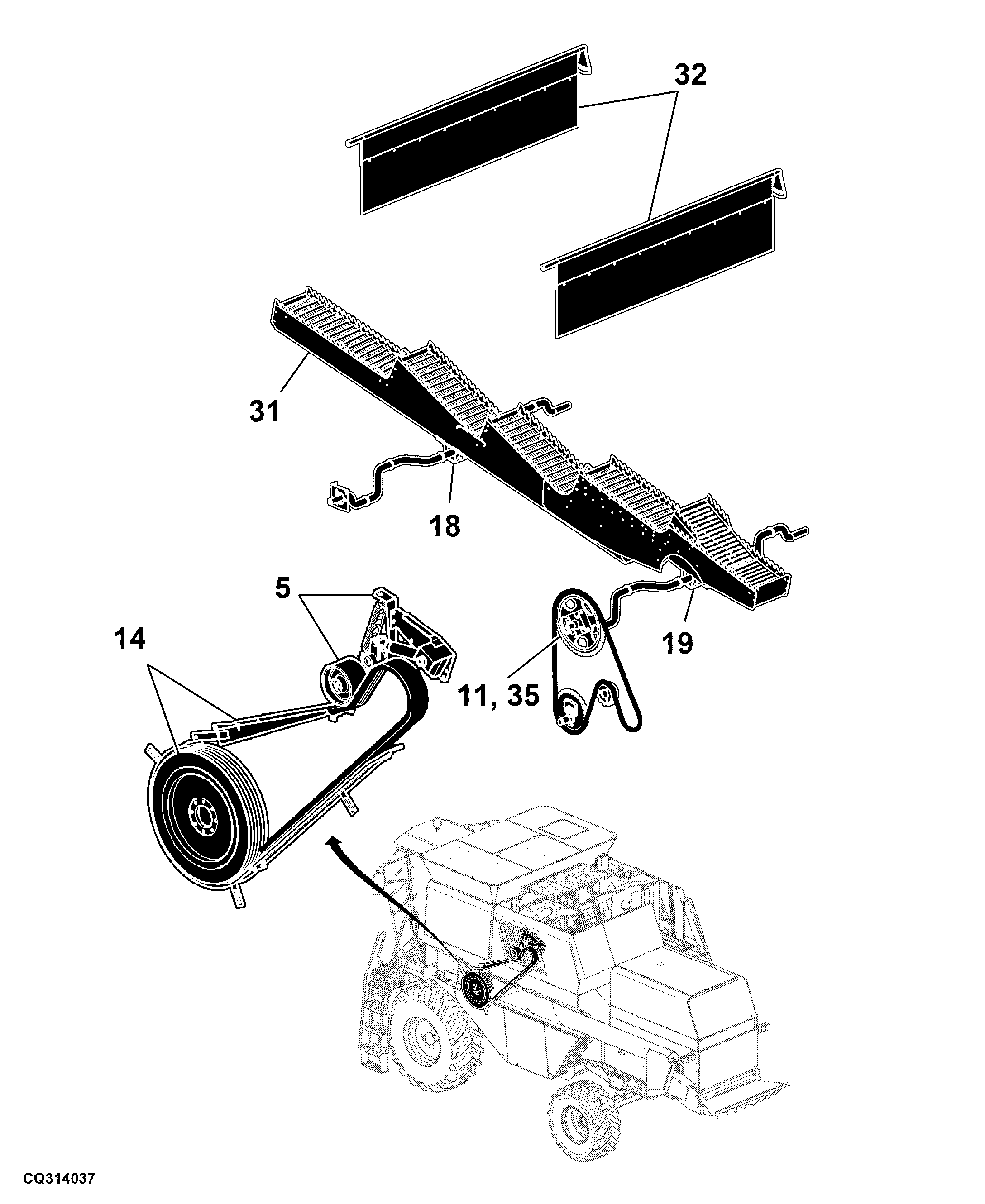

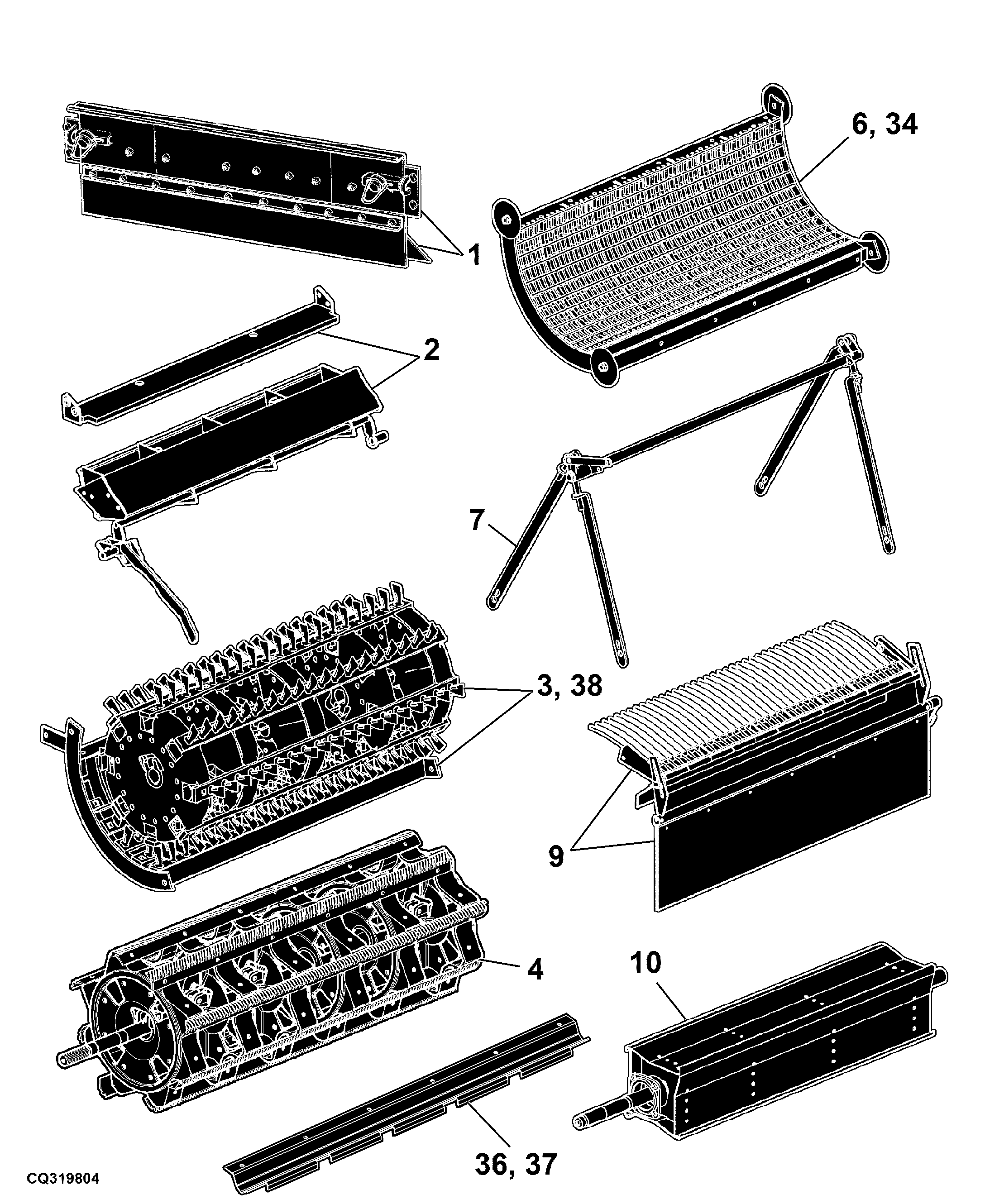

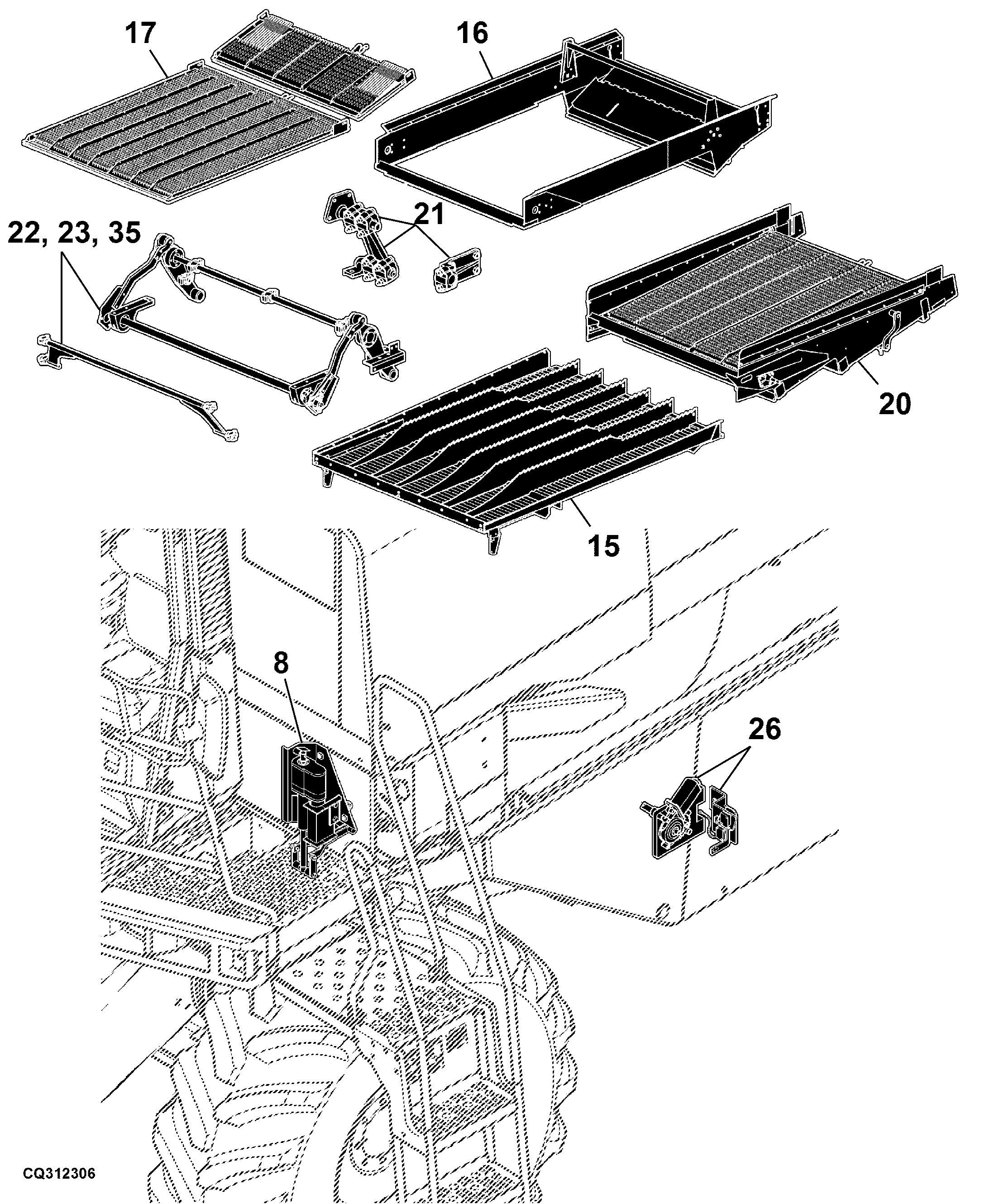

120 Separator and Cleaning Unit 1470

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Spike Tooth Cylinder and Concave	-
-	-	1	Power Separator	-
-	-	1	Rasp Bar Concave	-
-	-	1	Rasp Bar Cylinder	-
-	-	1	Ratchet Kit	-
-	-	1	Return Pan W/ Sieves / Chaffer	-
-	-	1	Sheet Kit, RASP Bar Cylinder	-
-	-	1	Sheet Kit, RASP Bar Cylinder	-
-	-	1	Shoe Crank and Pitman	-
-	-	1	Speed Fan Variator Motor	-
-	-	1	Power Separator	-
-	-	1	Stone Trap	-
-	-	1	Straw Walker	-
-	-	1	Straw Walker / Lower Chaffer Board Drive	-
-	-	1	Straw Walker Shaft, Front	-
-	-	1	STRAW WALKER SHAFT, REAR	-
-	-	1	Tension Pulley, Cleaning Fan	-
-	-	1	Threshing Activation	-
-	-	1	Upper Fan Variator	-
-	-	1	Upper Fan Variator	-
-	-	1	Curtain	-
-	-	1	Attachment, Cylinder and Concave Bar	-
-	-	1	Attachment, Spike Tooth Cylinder and Concave	-
-	-	1	Beater	-
-	-	1	Beater Sheave, Variables Cylinder Sheave W/ Posi-Torq	-
-	-	1	Bracket and Hardware Kit, Shoe Drive	-
-	-	1	Chaffer And Extension	-
-	-	1	Cleaning Shoe Suspension	-
-	-	1	Concave Adjusting Components	-
-	-	1	Concave Suspension	-
-	-	1	Adjustable Concave Extension	-
-	-	1	Cylinder Cover	-
-	-	1	Cylinder Sheave, Variables Cylinder Sheave W/ Posi-Torq	-
-	-	1	FAN HOUSING	-
-	-	1	Fan With Shaft And Deflectors	-
-	-	1	Grain Pan	-
-	-	1	Grain Pan Shaft And Support	-
-	-	1	Lower Chaffer Board	-
-	-	1	Lower Fan Variator	-
-	-	1	Multi-V Belt Guides	-

120 Separator and Cleaning Unit 1470

Нет текстового описания
