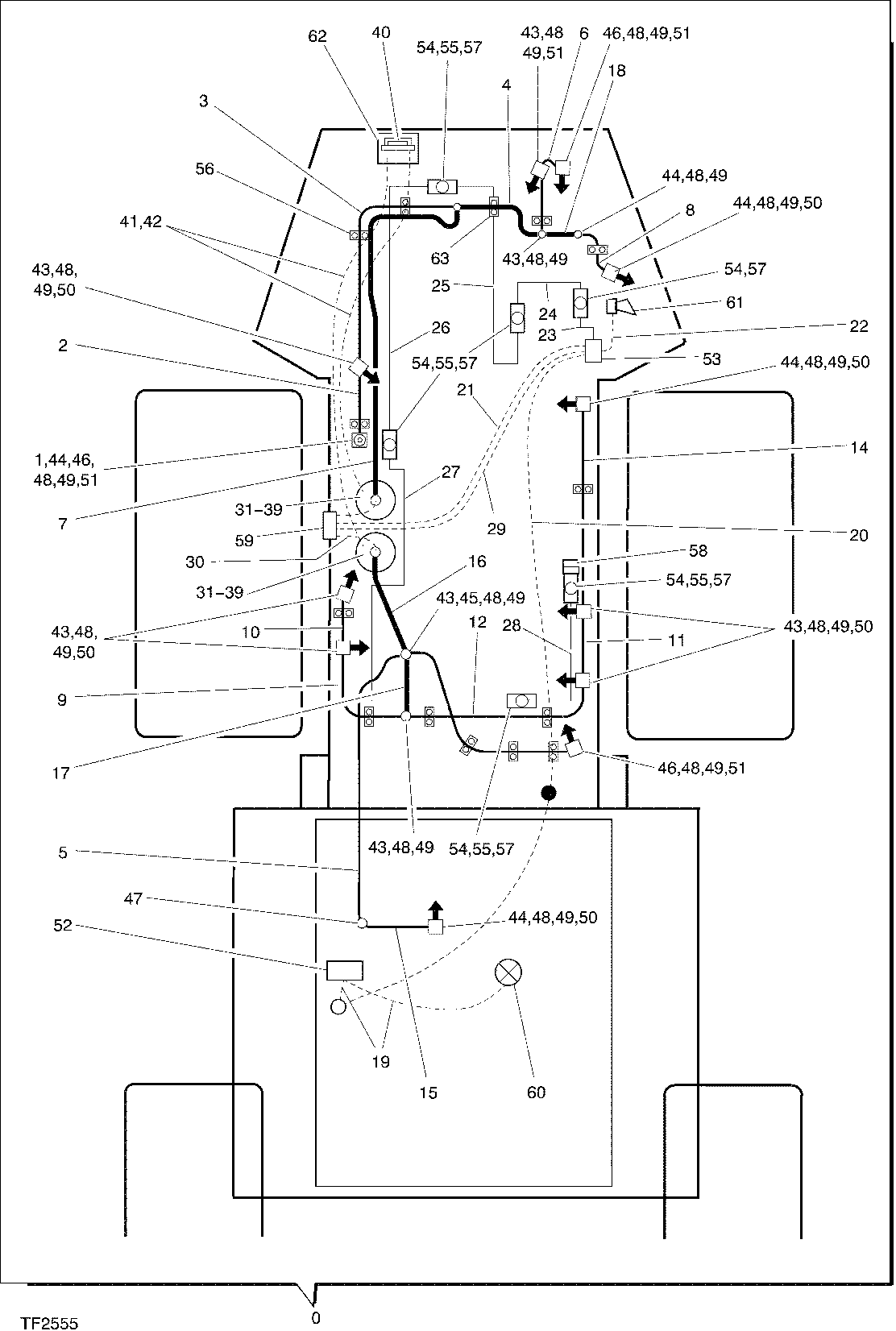

FRAME, PROTECTION PLATES SPRINKLER SYSTEM F059537 6700 2 TF2555 [TF2555]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-------	1	O-RING	-
1	F045390	1	T-CONNECTION	-
2	F045389	1	PIPE	-
3	F056692	1	PIPE	-
4	F061911	1	PIPE	-
5	F061906	1	HOSE	-
6	F061907	1	PIPE	-
7	F045373	1	HOSE-ASSY	-
8	F045383	1	PIPE	-
9	F045382	1	PIPE	-
10	F061909	1	PIPE	-
11	F061910	1	PIPE	-
12	F061908	1	PIPE	-
14	F045377	1	PIPE	-
15	-	1	Part 15	-
16	F045375	1	HOSE-ASSY	-
17	F061905	1	HOSE	-
18	F045373	1	HOSE-ASSY	-
19	F045372	1	CABLE	-
20	F604119	1	CABLE	-
21	F045370	1	CABLE	-
22	F045369	1	CABLE	-
23	F045368	1	CABLE	-
24	F045367	1	CABLE	-
25	F045366	1	CABLE	-
26	F056690	1	PIPE	-
27	F045364	1	CABLE	-
28	F045363	1	CABLE	-
29	F052718	1	CABLE	-
30	F052717	2	CABLE	-
31	F045405	2	RESERVOIR	-
32	F007773	2	HOLDER	-
33	F045404	2	VALVE	-
34	F045403	2	COPPER WASHER	-
35	F007774	2	CONNECTION	-
36	F007775	2	SLEEVE	-
37	F007768	2	CARTRIDGE	-
38	F057741	2	Quick Coupler	-
39	F051127	2	T-CONNECTION	-
40	F045402	1	HANDLE	-
41	F045401	2	STEEL ROPE	-
42	F045400	2	STOP SLEEVE	-
43	F010124	9	T-CONNECTION	-
44	F045399	4	ELBOW NIPPLE	-
45	F051195	1	ELBOW NIPPLE	-
46	F051126	4	CONNECTION	-
47	F051125	1	CONNECTION	-
48	-------	1	O-RING	-
49	-------	1	O-RING	-
50	F051122	8	NOZZLE	-
51	F051123	3	NOZZLE	-
52	F021493	1	CENTRAL UNIT	-
53	F025498	1	CONNECTING BOX	-
54	F007760	6	TEMPERATURE SENSOR	-
55	F007791	5	HOLDER	-
56	F008165	15	PIPE CLIP	-
57	F007790	6	SCREW AND UNION KIT	-
58	F007762	1	PLUG	-
59	F007781	1	CONNECTING BOX	-
60	F007763	1	WARNING LIGHT	-
61	F045392	1	SIGNAL HORN	-
62	F045391	1	CASE	-
63	F046632	1	CLAMP KIT	-

FRAME, PROTECTION PLATES SPRINKLER SYSTEM F059537 6700 2 TF2555 [TF2555]
