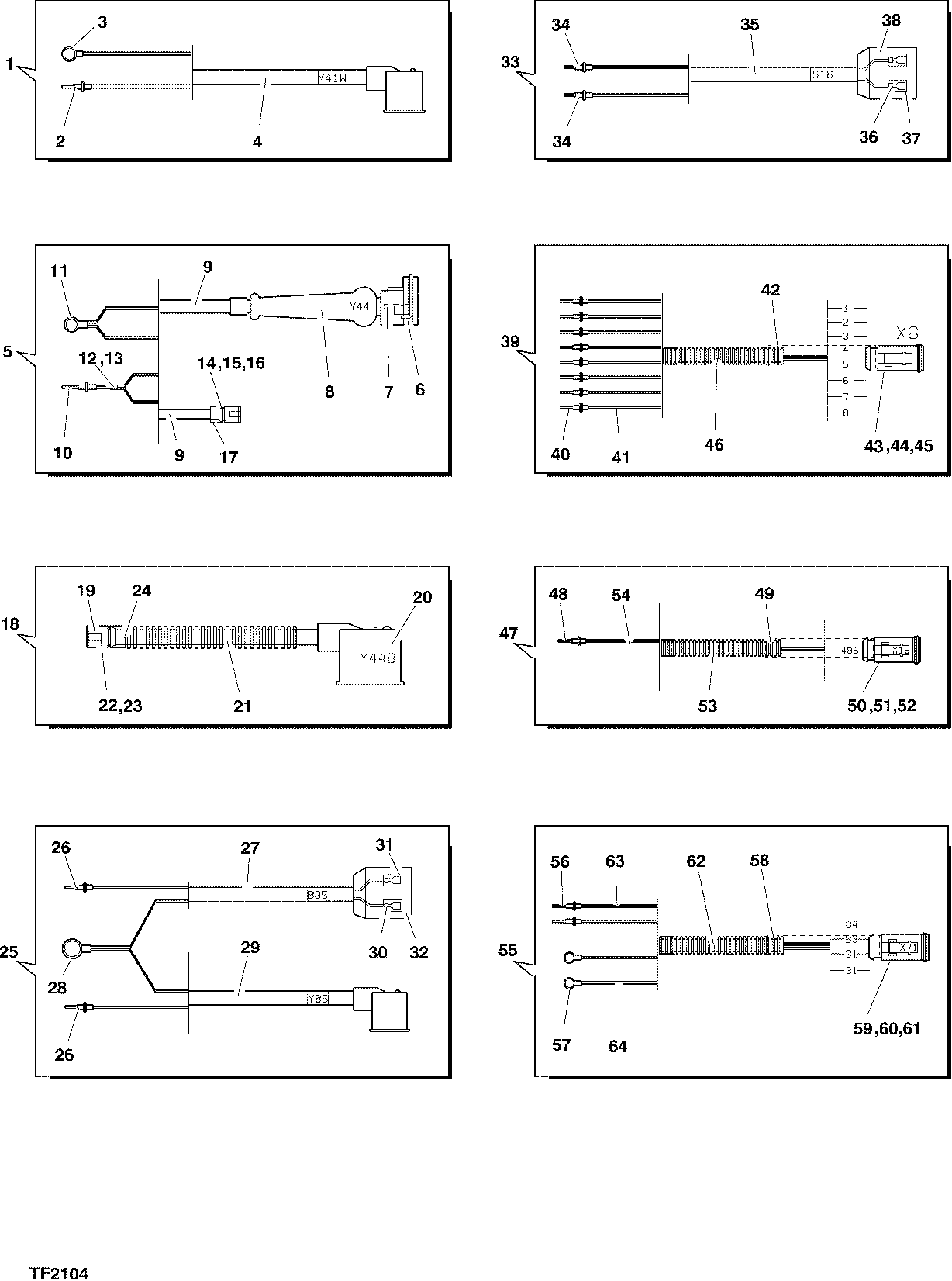

ELECTRICAL SYSTEM CABLES, C41 F059537 3220 10 TF2104 [TF2104]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F616197	1	CABLE HARNESS	-
2	F045798	1	Pin	-
3	F008190	1	Elec. Connector Accessory	-
4	F035505	1	CABLE	-
5	F612493	1	CABLE	-
6	F024301	1	CONNECTOR	-
7	F023007	2	SLEEVE	-
8	F031719	1	Guard	-
9	-------	1	O-RING	-
10	F045798	3	Pin	-
11	F038504	1	CABLE LUG	-
12	F040510	1	CONNECTOR	-
13	F057123	1	Tube	-
14	F055139	2	Socket	-
15	F056844	1	Electrical Connector Assy	-
16	F052688	1	Lock	-
17	F055816	1	SHRINKING TUBE	-
18	F617285	1	CABLE	-
19	F045798	2	Pin	-
20	F035505	1	CABLE	-
21	-------	1	O-RING	-
22	F056845	1	Electrical Connector Assy	-
23	F052695	1	Lock	-
24	F055816	1	SHRINKING TUBE	-
25	F613839	1	CABLE HARNESS	-
26	F045798	2	Pin	-
27	-------	1	O-RING	-
28	F038504	1	CABLE LUG	-
29	F035505	1	CABLE	-
30	F005260	2	Elec. Connector Terminal	-
31	F035196	2	Sleeve	-
32	F039978	1	PROTECTION	-
33	F613851	1	CABLE	-
34	F045798	2	Pin	-
35	-------	1	O-RING	-
36	F005260	2	Elec. Connector Terminal	-
37	F035196	2	Sleeve	-
38	F039978	1	PROTECTION	-
39	F616179	1	CABLE	-
40	F045798	8	Pin	-
41	F038714	1	Cable	-
42	F017311	1	SHRINKING TUBE	-
43	F052691	8	Lug	-
44	F059629	1	CONNECTOR	-
45	F053689	1	LOCKING PIECE	-
46	-------	1	O-RING	-
47	F616196	1	CABLE HARNESS	-
48	F052692	1	Pin Fastener	-
49	F055816	2	SHRINKING TUBE	-
50	F052691	1	Lug	-
51	F052688	1	Lock	-
52	F056844	1	Electrical Connector Assy	-
53	-------	1	O-RING	-
54	F008098	1	Electrical Conductor	-
55	F613854	1	CABLE HARNESS	-
56	F052692	2	Pin Fastener	-
57	F038504	2	CABLE LUG	-
58	F017311	2	SHRINKING TUBE	-
59	F052691	4	Lug	-
60	F053704	1	Elec. Connector Cavity Plug	-
61	F053703	1	Elec. Connector Housing	-
62	-------	1	O-RING	-
63	F008098	2	Electrical Conductor	-
64	F008099	2	CABLE	-

ELECTRICAL SYSTEM CABLES, C41 F059537 3220 10 TF2104 [TF2104]

Нет текстового описания
