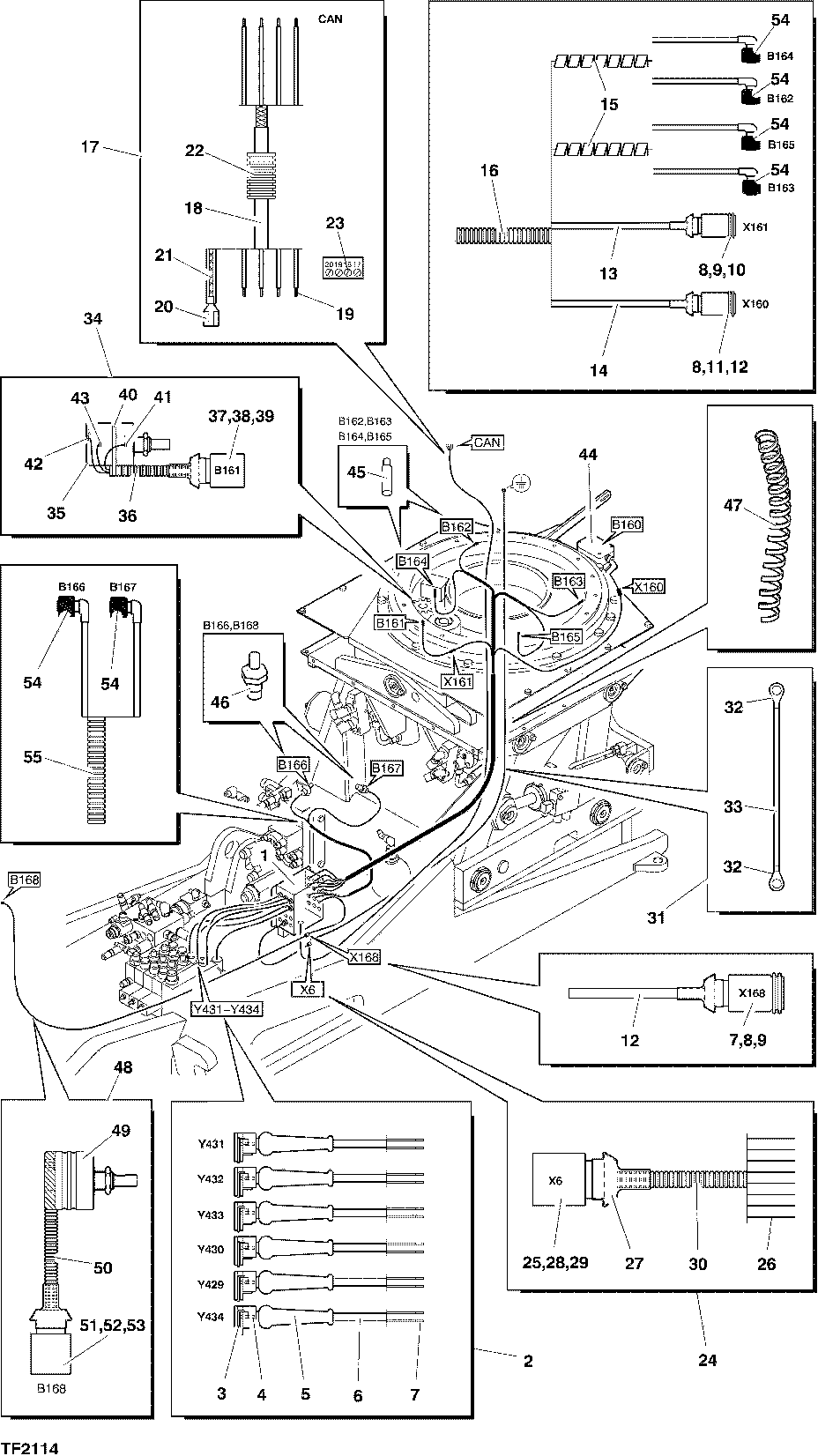

ELECTRICAL SYSTEM CABLE HARNESSES, CABIN LEVELLING F059537 3220 12 TF2114 [TF2114]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F616095	1	CONNECTING BOX	-
2	F616096	6	CABLE	-
3	F024301	1	CONNECTOR	-
4	F023007	2	SLEEVE	-
5	F031719	1	Guard	-
6	-------	1	O-RING	-
7	F005250	2	CONNECTOR	-
8	F055148	10	Elec. Connector Terminal	-
9	F056931	2	Electrical Connector Assy	-
10	F059788	2	Electrical Connector Assy	-
11	F053704	1	Elec. Connector Cavity Plug	-
12	F059558	1	Electrical Connector Assy	-
13	-------	1	O-RING	-
14	-------	1	O-RING	-
15	-------	2	O-RING	-
16	-------	1	O-RING	-
17	F616097	1	CABLE HARNESS	-
18	-------	1	O-RING	-
19	F005250	8	CONNECTOR	-
20	F005260	2	Elec. Connector Terminal	-
21	F044483	2	SHRINKING TUBE	-
22	-------	1	O-RING	-
23	F025213	1	CONNECTOR	-
24	F616227	1	CABLE HARNESS	-
25	F052692	8	Pin Fastener	-
26	-------	8	O-RING	-
27	F017311	1	SHRINKING TUBE	-
28	F053691	1	Lock Plate	-
29	F059628	1	CONNECTOR	-
30	-------	1	O-RING	-
31	F616738	1	CABLE	-
32	-------	2	O-RING	-
33	-------	1	O-RING	-
34	F616230	1	POTENTIOMETER	-
35	F059662	1	POTENTIOMETER	-
36	-------	1	O-RING	-
37	F059843	3	Elec. Connector Terminal	-
38	F059789	1	Cable	-
39	F056932	1	Lug	-
40	F005333	1	Tie Band	-
41	-------	1	O-RING	-
42	-------	1	O-RING	-
43	-------	1	O-RING	-
44	-------	1	O-RING	-
45	F039297	4	SENSOR	-
46	F059487	2	SENSOR	-
46	F061630	2	SENSOR	-
47	F054031	1	HOSE PROTECTION	-
48	F616229	1	POTENTIOMETER	-
49	F021414	1	SENSOR	-
50	-------	1	O-RING	-
51	F005260	3	Elec. Connector Terminal	-
52	F059789	1	Cable	-
53	F056932	1	Lug	-
54	F039299	6	CABLE	-
55	-------	1	O-RING	-

ELECTRICAL SYSTEM CABLE HARNESSES, CABIN LEVELLING F059537 3220 12 TF2114 [TF2114]

Нет текстового описания
