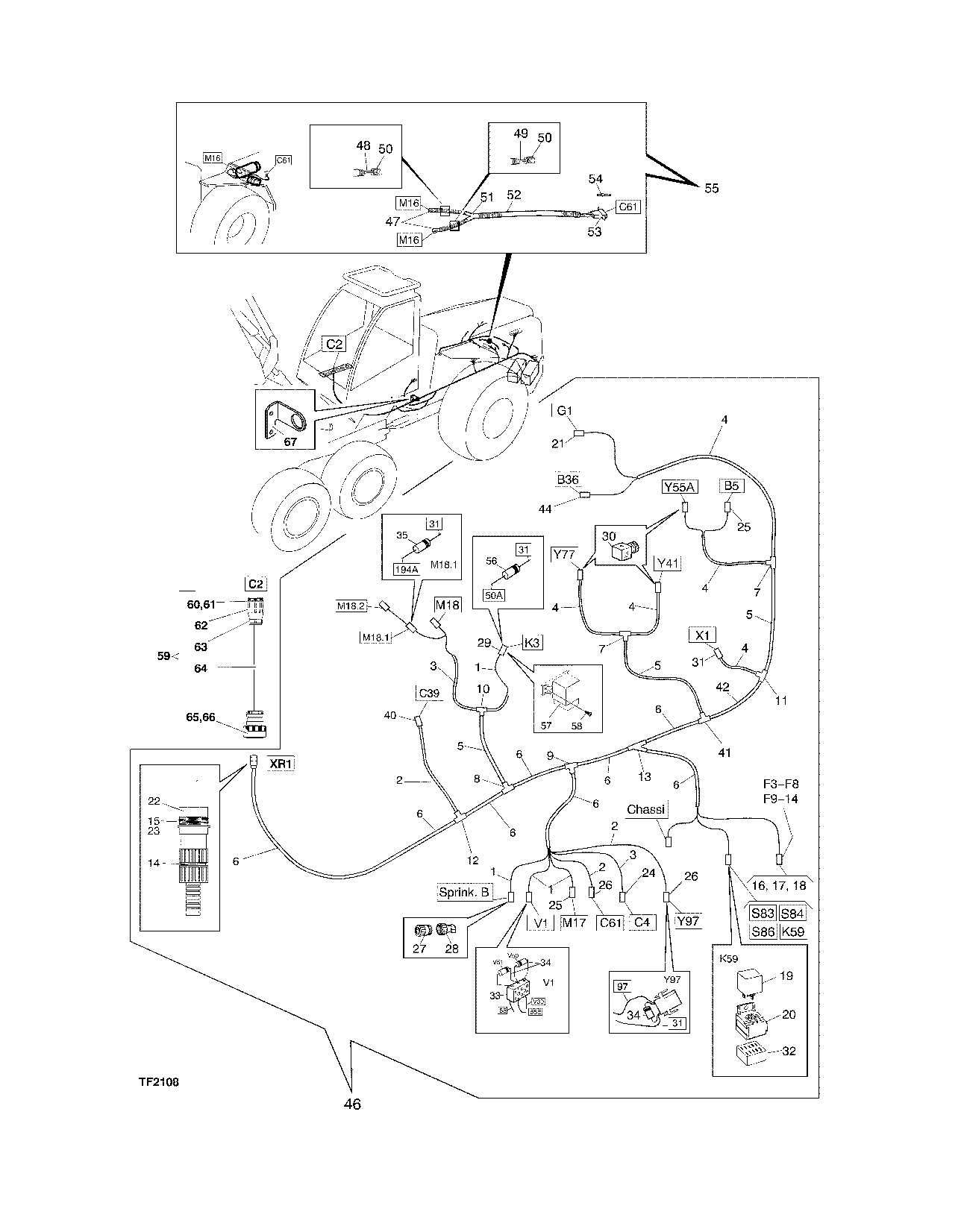

ELECTRICAL SYSTEM CABLE HARNESS, C2 F059537 3220 18 TF2108 [TF2108]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-------	1	O-RING	-
2	-------	1	O-RING	-
3	-------	1	O-RING	-
4	-------	1	O-RING	-
5	-------	1	O-RING	-
6	-------	1	O-RING	-
7	F040638	2	T-CONNECTION	-
8	F040668	1	T-CONNECTION	-
9	F040667	1	T-CONNECTION	-
10	F040666	1	T-CONNECTION	-
11	F055536	1	TEE FITTING	-
12	F055518	2	T-CONNECTION	-
13	F055517	1	Y-CONNECTION	-
14	F059635	1	ADAPTER	-
15	F059631	1	NUT	-
16	F041329	2	Socket	-
17	F041330	2	Socket	-
18	F041331	2	CONTACT	-
19	F005290	1	RELAY	-
20	F015010	1	BRACKET	-
21	F015164	1	Guard	-
22	F059637	1	CONNECTOR	-
23	F059634	1	Washer	-
24	F013883	1	CONNECTOR HOUSING	-
25	F011415	2	Electrical Connector Assy	-
26	F005263	3	Electrical Connector Assy	-
27	F023473	1	CONNECTOR HOUSING	-
28	F023470	1	CONNECTOR	-
29	F017866	2	Electrical Connector Assy	-
30	F025731	3	CONNECTOR	-
31	F005320	1	Socket	-
32	F005398	3	Elec. Connector Housing	-
33	F050268	1	CONNECTING BLOCK	-
34	F004575	3	DIODE	-
35	F008090	1	DIODE	-
40	F034842	1	Electrical Connector Assy	-
41	F055535	1	T-CONNECTION	-
42	-------	1	O-RING	-
44	F008088	1	CABLE LUG	-
46	F614376	1	CABLE HARNESS	-
47	F015355	2	CABLE LUG	-
48	-------	1	O-RING	-
49	-------	1	O-RING	-
50	-------	1	O-RING	-
51	F035217	1	Y-CONNECTION	-
52	-------	1	O-RING	-
53	F005264	1	Elec. Connector Housing	-
54	F005267	2	PIN	-
55	F040012	1	CABLE HARNESS	-
56	F015962	1	DIODE	-
57	F005289	1	Relay	-
58	F003711	2	SCREW	-
59	F613952	1	CABLE	-
60	F017790	24	CONNECTOR PIN	-
61	F013788	1	CONNECTOR	-
62	F013784	1	EXTENDER	-
63	F013787	1	CABLE CLAMP	-
64	F059630	1	CABLE	-
65	F052691	24	Lug	-
66	F059636	1	CONNECTOR	-
67	F617058	1	BRACKET	-

ELECTRICAL SYSTEM CABLE HARNESS, C2 F059537 3220 18 TF2108 [TF2108]
