Открытый узел

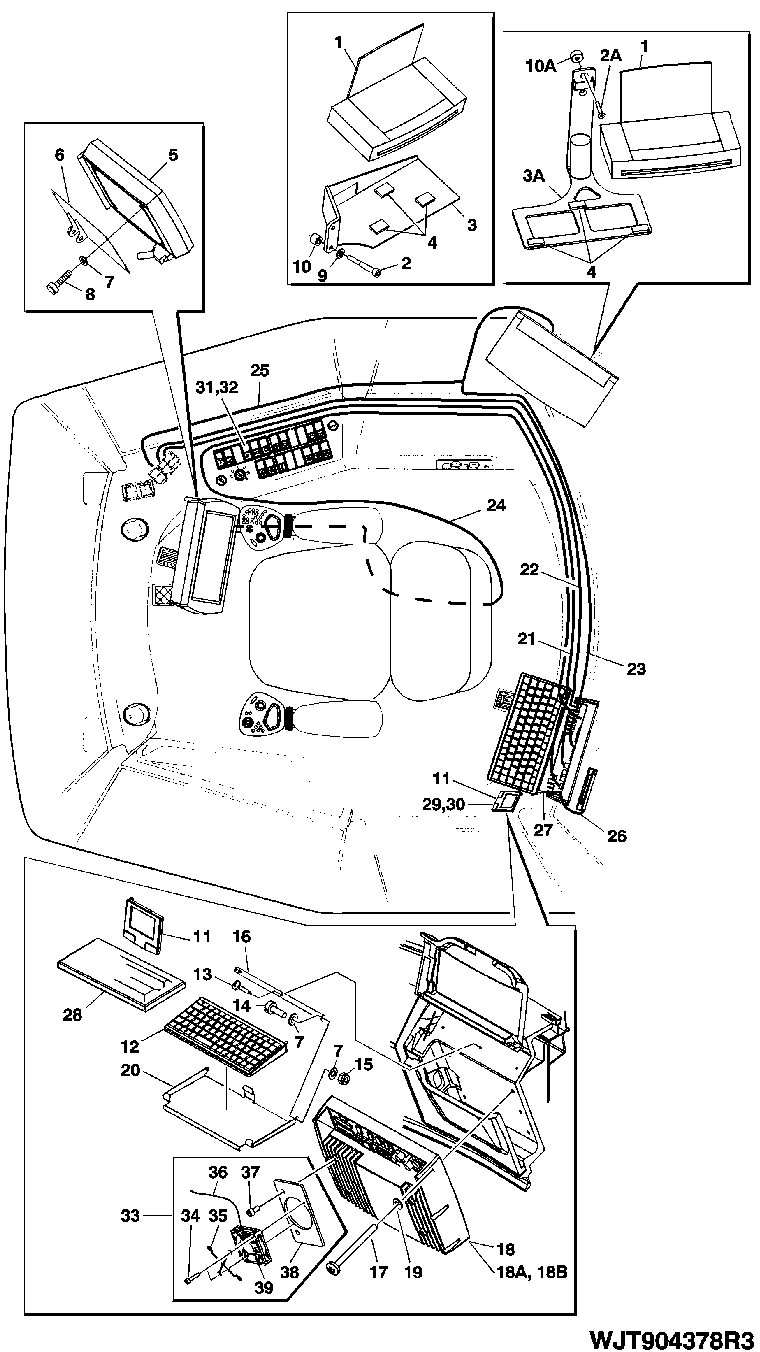

PC ELECTRICALS VALID SERIAL NO. 0530-1013 [02H17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F070434	1	COMPUTER HARDWARE ITEM	-
1	F072060	1	COMPUTER HARDWARE ITEM	BLACK
1	F072061	1	COMPUTER HARDWARE ITEM	COLOR
1	F070228	1	COMPUTER HARDWARE ITEM	(REPLACES F065406)
2	F057745	2	CAP SCREW	-
3	F627374	1	HOLDER	-
4	-	1	Part 9	F061192 X L= 40
5	F626767	1	DISPLAY MODULE	-
5	F069602	1	COMPUTER HARDWARE ITEM	(REPLACES F064489)
6	-	1	Part 12	SEE PAGE 1676-4
7	24M7501	8	Washer	4.300 X 9 X 0.800 MM
8	19M9471	4	Screw	M4 X 10
9	24M7509	2	Washer	8.400 X 16 X 1.600 MM
10	F627685	2	BUSHING	-
11	F628502	1	Computer Hardware Item	-
12	F065298	1	Computer Hardware Item	DENMARK
12	F064442	1	Computer Hardware Item	FINNISH, SWEDISH
12	F064443	1	Computer Accessory	ENGLISH
12	F065290	1	Computer Hardware Item	RUSSIAN
12	F065291	1	Computer Hardware Item	GERMANY
12	F065292	1	Computer Accessory	FRENCH
12	F065293	1	COMPUTER HARDWARE ITEM	ITALY
12	F065294	1	Computer Hardware Item	NORWAY
12	F065295	1	Computer Accessory	UNITED STATES
12	F065296	1	Computer Hardware Item	PORTUGAL
12	F065297	1	Computer Hardware Item	SPAIN
13	37M7415	3	Screw	-
14	21M7554	2	Screw	M4 X 10
15	F003584	2	LOCK NUT	-
16	F628243	1	PLATE	-
17	21M7542	6	SCREW	M4 X 40
18	F639658	1	COMPUTER ACCESSORY	FPC07 REPLACEMENT KIT, WITH WINDOWS XP (REPLACES F627578)
19	F026365	6	Lock Washer	-
20	F628242	1	HOLDING UNIT	-
21	F626908	1	WIRING HARNESS	-
22	F626907	1	WIRING HARNESS	-
23	F065439	1	WIRING HARNESS	-
24	F064414	1	WIRING HARNESS	-
25	F640177	1	Wiring Harness	POWER SUPPLY CABLE, USE WITH F070434
25	F639373	1	WIRING HARNESS	POWER SUPPLY CABLE, USE WITH F070228
25	F629928	1	WIRING HARNESS	POWER SUPPLY CABLE, USE WITH F065406
26	-	1	Part 47	COMES WITH ITEM 11
27	-	1	Part 48	COMES WITH ITEM 12
28	F064685	1	Cover	-
29	-	1	Part 50	F067183 X L=40
30	-	1	Part 51	F067184 X L=40
31	F062501	1	SWITCH	SEE PAGE 1816-2
32	F062500	1	SIGN	-
33	F643817	1	FAN KIT	AXIAL FAN ASSEMBLY
34	19M9473	2	Screw	M4 X 20
35	F070832	1	Electronic Component	METAL FINGER GUARD
36	F641717	1	WIRING HARNESS	-
37	19M9723	2	Screw	M6 X 12
38	F642633	1	BRACKET	-
39	F070831	1	Computer Hardware Item	AXIAL FAN
2A	19M9563	2	Screw	M8 X 50
3A	F630821	1	BRACKET	-
10A	F630861	2	Bushing	-
18A	-	1	Part 36	-
18B	-	1	Part 37	-

PC ELECTRICALS VALID SERIAL NO. 0530-1013 [02H17]
