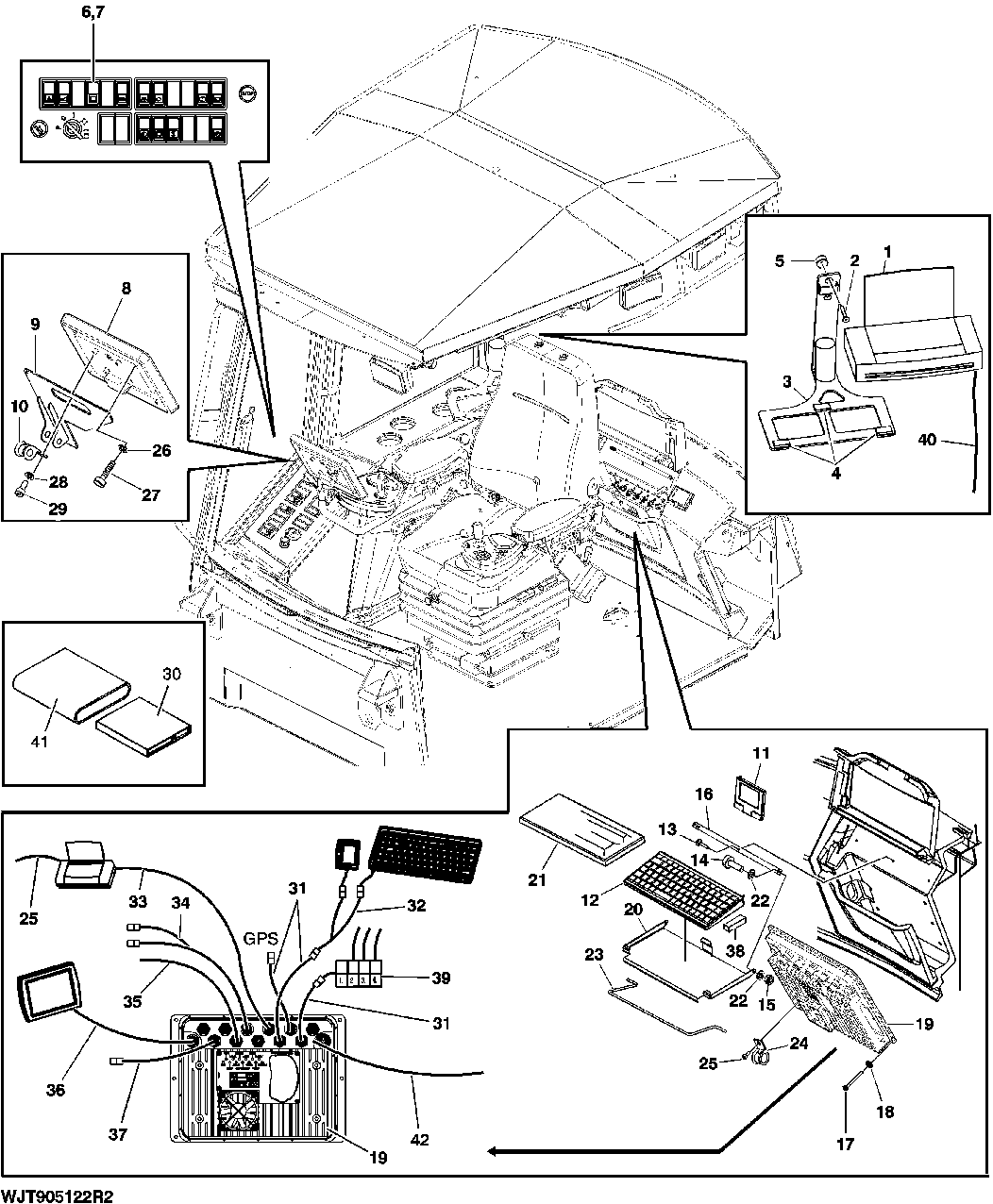

PC ELECTRICALS VALID FROM SERIAL NUMBER 1014- [02H19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F072060	1	COMPUTER HARDWARE ITEM	BLACK
1	F070434	1	COMPUTER HARDWARE ITEM	-
1	F072061	1	COMPUTER HARDWARE ITEM	COLOR
2	19M9563	2	Screw	M8 X 50
3	F630821	1	BRACKET	-
4	-	1	Part 6	F061192 X L= 40
5	F630861	2	Bushing	-
6	F030605	1	Toggle/Rocker Switch	-
7	F062500	1	SIGN	-
8	F070193	1	Monitor	-
9	F639657	1	Bracket	BRACKET ARM, SEE PAGE 1676-4
10	F015145	1	HOSE CLAMP	-
11	F628502	1	Computer Hardware Item	MOUSE
11	-	1	Part 15	F067184 X L= 40
11	-	1	Part 14	F067183 X L= 40
12	F066414	1	Computer Accessory	BELGIUM
12	F066415	1	Computer Accessory	CZECH
12	F065290	1	Computer Hardware Item	RUSSIAN
12	F065298	1	Computer Hardware Item	DENMARK
12	F065297	1	Computer Hardware Item	SPAIN
12	F065296	1	Computer Hardware Item	PORTUGAL
12	F065295	1	Computer Accessory	UNITED STATES
12	F065294	1	Computer Hardware Item	NORWAY
12	F066234	1	COMPUTER HARDWARE ITEM	POLAND
12	F065292	1	Computer Accessory	FRENCH
12	F065291	1	Computer Hardware Item	GERMANY
12	F064443	1	Computer Accessory	ENGLISH
12	F064442	1	Computer Hardware Item	FINNISH, SWEDISH
13	37M7415	3	Screw	-
14	21M7554	2	Screw	M4 X 10
15	F003584	2	LOCK NUT	-
16	F628243	1	PLATE	-
17	19M9472	6	Screw	M4 X 16
18	F026365	6	Lock Washer	-
19	F070191	1	Microcomputer	-
19	F070757	1	Microcomputer	HARD DISK
19	F070831	1	Computer Hardware Item	AXIAL FAN
19	F064487	1	Software	-
19	F072780	1	Lithium Battery	-
20	F628242	1	HOLDING UNIT	INCL ITEMS 13-16,22
21	F064685	1	Cover	-
22	24M7501	4	Washer	4.300 X 9 X 0.800 MM
23	F065152	1	Support	-
24	F072109	1	Hose Support	-
25	19M9723	1	Screw	M6 X 12
26	24M7501	3	Washer	4.300 X 9 X 0.800 MM
27	19M9471	3	Screw	M4 X 10
28	F015990	1	Lock Washer	-
29	19M9721	1	Screw	M6 X 10
30	F070668	1	Computer Hardware Item	DVD DISK DRIVE
31	F070471	3	Wiring Harness	DVD DISK DRIVE, GPS
32	F070760	1	Computer Hardware Item	KEYBOARD AND MOUSE
33	F641175	1	Wiring Harness	PRINTER
34	F070474	1	Wiring Harness	REAR AND FRONT CAMERA (OPTION)
35	F641715	1	Wiring Harness	CAN
36	F070468	1	Wiring Harness	MONITOR
37	F070473	1	WIRING HARNESS	GPRS-MODEM (OPTION)
38	F070756	1	Computer Hardware Item	SANDISK 256 MT
39	F071050	1	Computer Hardware Item	USB- HUB
40	F640177	1	Wiring Harness	POWER SUPPLY CABLE
41	F071171	1	Bag	-
42	F626908	1	WIRING HARNESS	-

PC ELECTRICALS VALID FROM SERIAL NUMBER 1014- [02H19]
