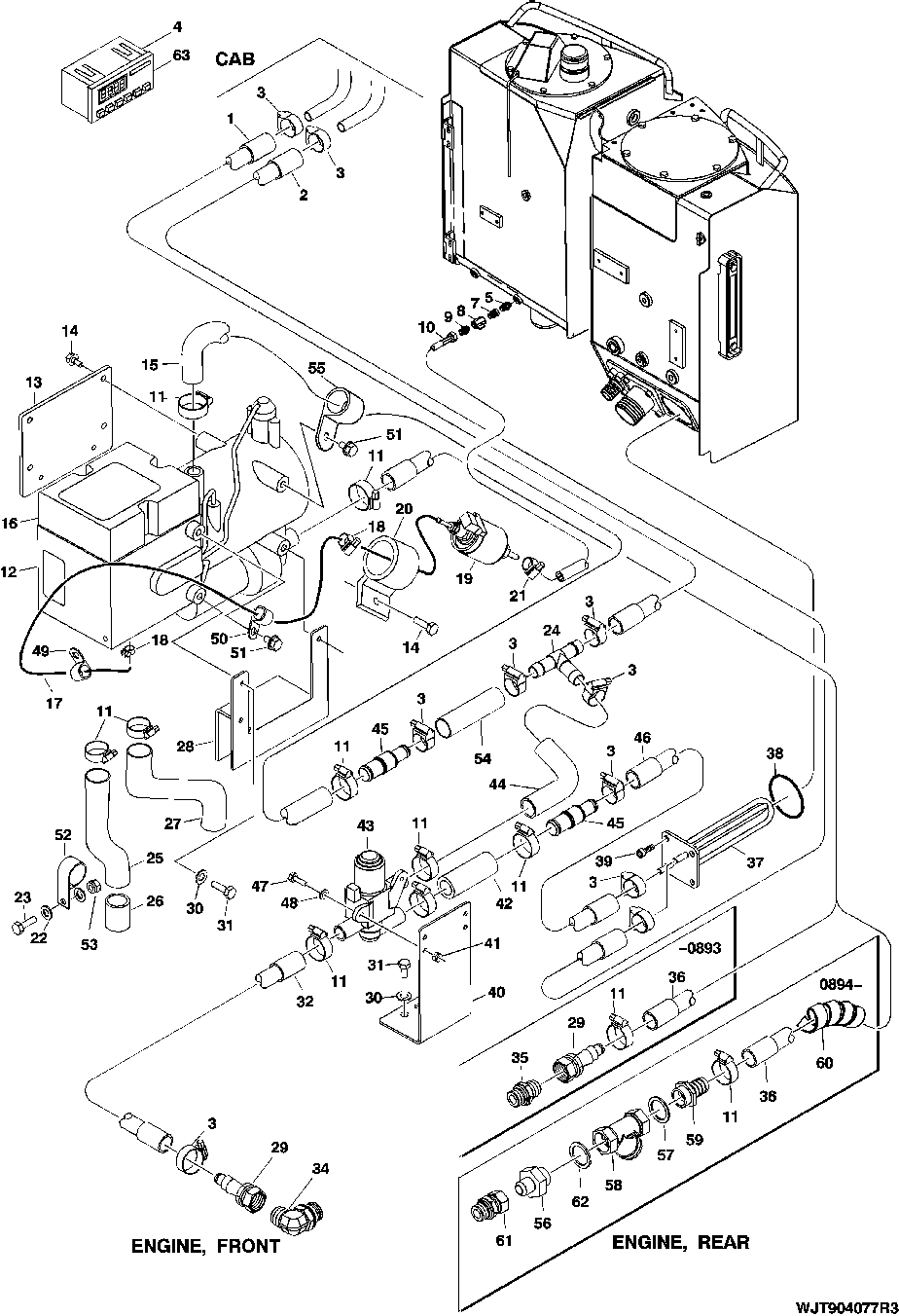

HEATER MOUNTING VALID FROM SERIAL NO. 0688- [02C09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F066982	1	Hose	L= 2150
2	F066973	1	Hose	L= 3900
3	F003669	9	HOSE CLAMP	-
4	F055190	1	TIMER	-
5	F005052	1	NIPPLE	-
7	F005097	1	Fitting	-
8	F043677	1	Drain Valve	-
9	F005053	1	NIPPLE	-
10	F062678	1	HYDRAULIC HOSE - FABRICATE	L= 2800
11	F003671	11	HOSE CLAMP	-
12	F062667	1	Heater	SEE PAGE 0505-4
13	F622566	1	PLATE	-
14	19M9569	5	Screw	M8 X 25
15	F067141	1	Hose	L= 590
16	F625363	1	WIRING HARNESS	(REPLACES F623842)
17	-	1	Part 16	F062684 X 500
18	F023029	2	HOSE CLAMP	-
19	F062886	1	Fuel Pump	-
20	F062774	1	Clamp	-
21	F003667	1	HOSE CLAMP	-
22	24M7506	2	Washer	6.400 X 12 X 1.600 MM
23	19M9678	1	Cap Screw	M6 X 30
24	F005024	1	HOSE FITTING	-
25	-	1	Part 24	F062771 X 300
26	F062772	1	Sleeve	-
27	-	1	Part 26	F043996 X 270
28	F622568	1	PLATE	-
29	F063792	2	Fitting	-
30	24M7509	3	Washer	8.400 X 16 X 1.600 MM
31	19M9681	3	Cap Screw	M8 X 16
32	F066795	1	HOSE	L= 700
34	F062639	1	Elbow Fitting	-
35	PMH1613	1	Adapter Fitting	-
36	F067142	1	HOSE	L= 530
37	F032459	1	HEATER	-
38	F020147	1	O-RING	-
39	F003415	4	SCREW	-
40	F623666	1	PLATE	-
41	F003585	2	LOCK NUT	-
42	F066971	1	Hose	L= 100
43	F040449	1	WATER VALVE	-
44	F601352	1	HOSE	L= 120
45	F044975	2	EXHAUST PIPE	-
46	F066980	1	Hose	L= 2400
47	19M9669	2	Cap Screw	M5 X 16
48	24M7502	2	Washer	5.300 X 10 X 1 MM
49	F010774	1	Hose Clamp	-
50	F012859	1	Hose Clamp	-
51	19M9446	2	Screw	-
52	F041349	1	Hose Support	-
53	14M7528	1	Lock Nut	-
54	F067145	1	HOSE	L= 200
55	F004423	1	Hose Clamp	-
56	F012507	1	Fitting	-
57	F005170	1	SEAL RING	-
58	F067274	1	Strainer	LOCTITE 542
59	F069954	1	Hose Fitting	-
60	F022519	1	Hose Guard	L= 430
61	F070072	1	FITTING	-
62	F639480	1	Sealing Ring	LOCTITE 572
63	F007831	1	FRAME	-

HEATER MOUNTING VALID FROM SERIAL NO. 0688- [02C09]
