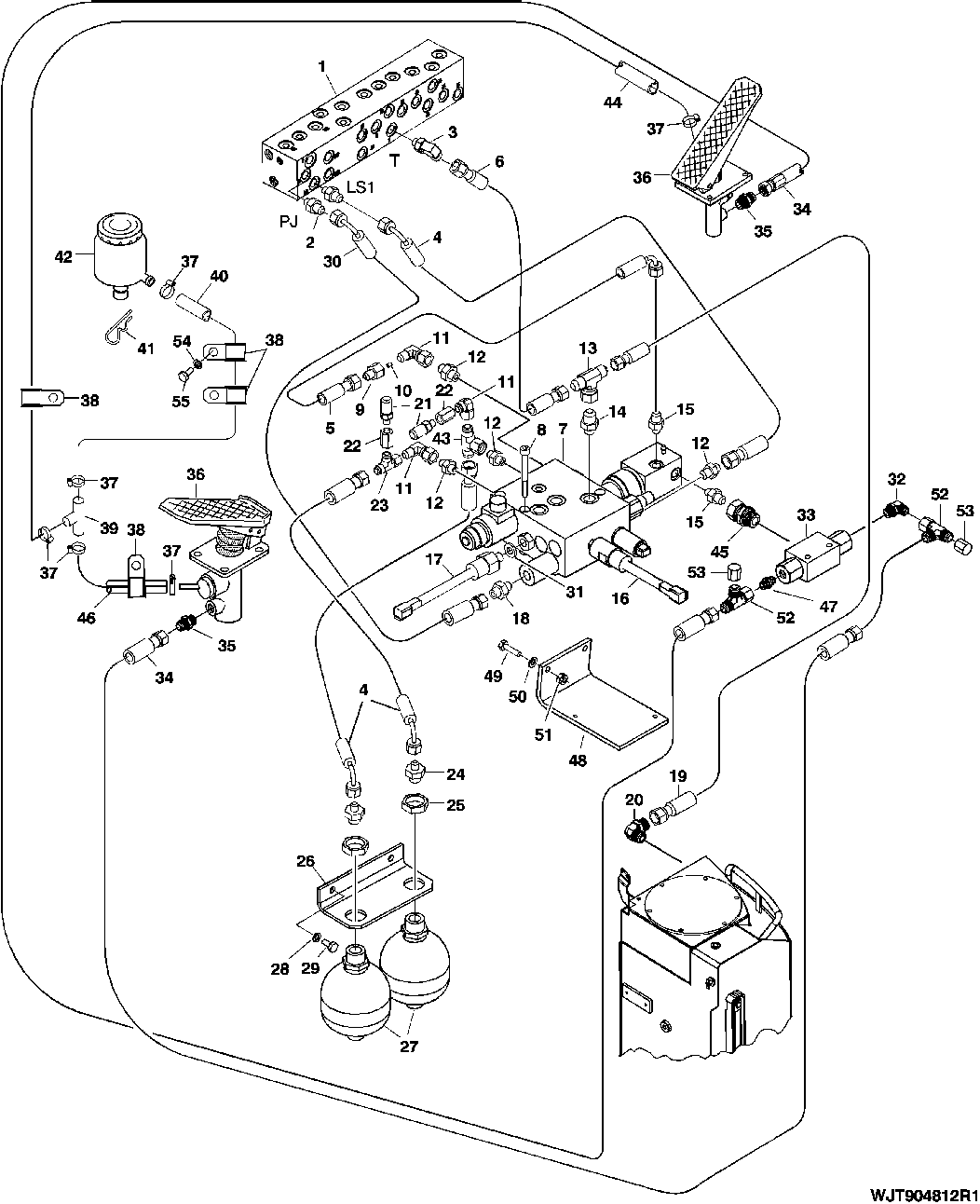

BRAKE HYDRAULICS FROM SERIAL NO. 743- [02E16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	SEE PAGE 2162-2
2	F005057	2	Fitting	-
3	F010072	1	ELBOW NIPPLE	-
4	F024309	3	Hydraulic Hose	L= 1200
5	F045448	1	Hydraulic Hose	L= 550 (REPLACES F027311)
6	F023021	1	HYDRAULIC HOSE - FABRICATE	L= 530
7	-	1	Part 7	SEE PAGE 1062-2
8	F050210	2	SCREW	-
9	F040264	1	Fitting	-
10	TT224400	1	Orifice	-
11	F022417	3	Elbow Fitting	-
12	F005101	4	Fitting	-
13	F031738	1	Tee Fitting	-
14	F013550	1	Fitting	-
15	F038293	2	Fitting	-
16	F069273	1	PRESSURE SWITCH	100 BAR (REPLACES F613931), LOCTITE 542
17	F069272	1	Pressure Switch	5 BAR (REPLACES F613930)
18	F022423	1	Fitting	-
19	F043225	1	Hydraulic Hose	L= 1100 (REPLACES F027355)
20	F010072	1	ELBOW NIPPLE	-
21	F023426	2	Fitting	-
22	F024364	2	Fitting	-
23	F023535	1	Tee Fitting	-
24	F005056	2	Fitting	-
25	F001090	2	Nut	-
26	F617512	1	PLATE	-
27	F001509	2	Hydraulic Accumulator	-
28	F005551	2	Lock Washer	-
29	19M9638	2	Cap Screw	M10 X 20
30	F051566	1	HOSE-ASSY	L= 650 (REPLACES F043537)
31	F005163	1	Sealing Washer	-
32	F011057	1	ELBOW NIPPLE	-
33	F004546	1	CHECK VALVE	-
34	F063313	2	BRAKE LINE	L= 2000
35	F026278	2	Fitting	-
36	-	2	Part 36	SEE PAGE 1015-2
37	F021722	6	Hose Clamp	-
38	F012859	6	Hose Clamp	-
39	F059980	1	TEE FITTING	-
40	F059978	1	HOSE	L= 280
41	F052296	1	Clip	(REPLACES F010937)
42	F024371	1	Tank	-
43	F005076	1	Tee Fitting	-
44	F059979	1	HOSE	L= 1340
45	F024875	1	CONNECTION	-
46	F059977	1	HOSE	L= 120
47	F005052	1	NIPPLE	-
48	F053936	1	BRACKET	-
49	19M9640	2	Cap Screw	-
50	24M7477	2	Washer	10.500 X 25 X 4 MM
51	F003588	2	LOCK NUT	-
52	F005072	2	L-CONNECTION	-
53	F031061	2	NUT	-
54	24M7507	6	Washer	6.400 X 18 X 1.600 MM
55	37M7420	6	SCREW	-

BRAKE HYDRAULICS FROM SERIAL NO. 743- [02E16]
