Telescopic Load Stake Hydraulics, Rear Unit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	COMPONENTS ON SEPARATE PAGE
2	-	1	Part 2	COMPONENTS ON SEPARATE PAGE
3	F070691	8	Hydraulic Cylinder	NLA; INCLUDES (8) F653992, (8) F076646 AND (8) F076647
3	F653992	8	Seal Kit	-
3	F076646	8	Guide	-
3	F076647	8	Rod	-
4	F024649	8	HOSE-ASSY	LGTH = 1800 mm
4	F062813	4	Hydraulic Hose	LGTH = 2000 mm
5	F024599	8	Elbow Fitting	-
6	F057053	2	Hydraulic Hose	LGTH = 400 mm
7	F023014	6	Fitting	-
8	F022422	2	T-CONNECTION	-
9	F022417	4	Elbow Fitting	-
10	-	1	Part 14	-
11	F005076	2	Tee Fitting	-
12	F061447	1	Hydraulic Hose	LGTH = 1600 mm
12	F057849	4	Hydraulic Hose	LGTH = 1375 mm, Fabricate
13	F024601	4	Fitting	-
14	F031935	2	HOSE-ASSY	LGTH = 570 mm, Fabricate
15	F626161	1	Plate	-
16	19M8440	1	Screw	M10 X 25
17	F023535	2	Tee Fitting	-
18	F013594	2	Elbow Fitting	-
19	F051479	2	Hydraulic Hose	LGTH = 4200 mm, Fabricate
20	F057044	2	Hydraulic Hose	LGTH = 850 mm
21	F064158	2	Hydraulic Hose	LGTH = 4000 mm
22	F005055	2	NIPPLE	-
23	F024402	2	Elbow Fitting	-
24	F024179	1	Manifold	-
25	14M7626	2	Lock Nut	M8
26	19M9689	2	Cap Screw	M8 X 70
27	F003383	2	PLUG	-
28	F032109	1	Hose Guard	-

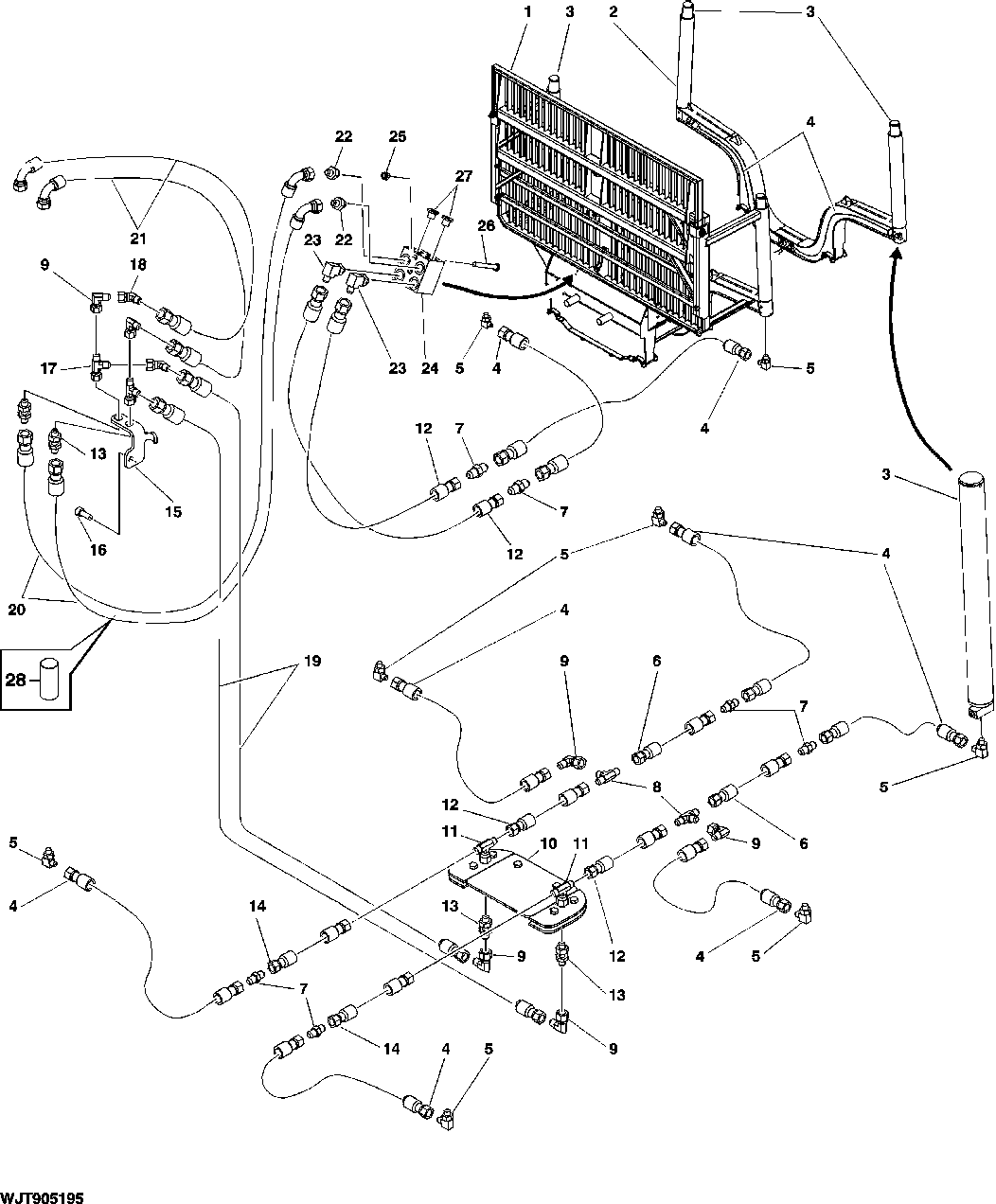

Telescopic Load Stake Hydraulics, Rear Unit
