Открытый узел

Differential, HD, LOK 112 / LOK 116

Differential, HD, LOK 112 / LOK 116

Differential, HD, LOK 112 / LOK 116

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

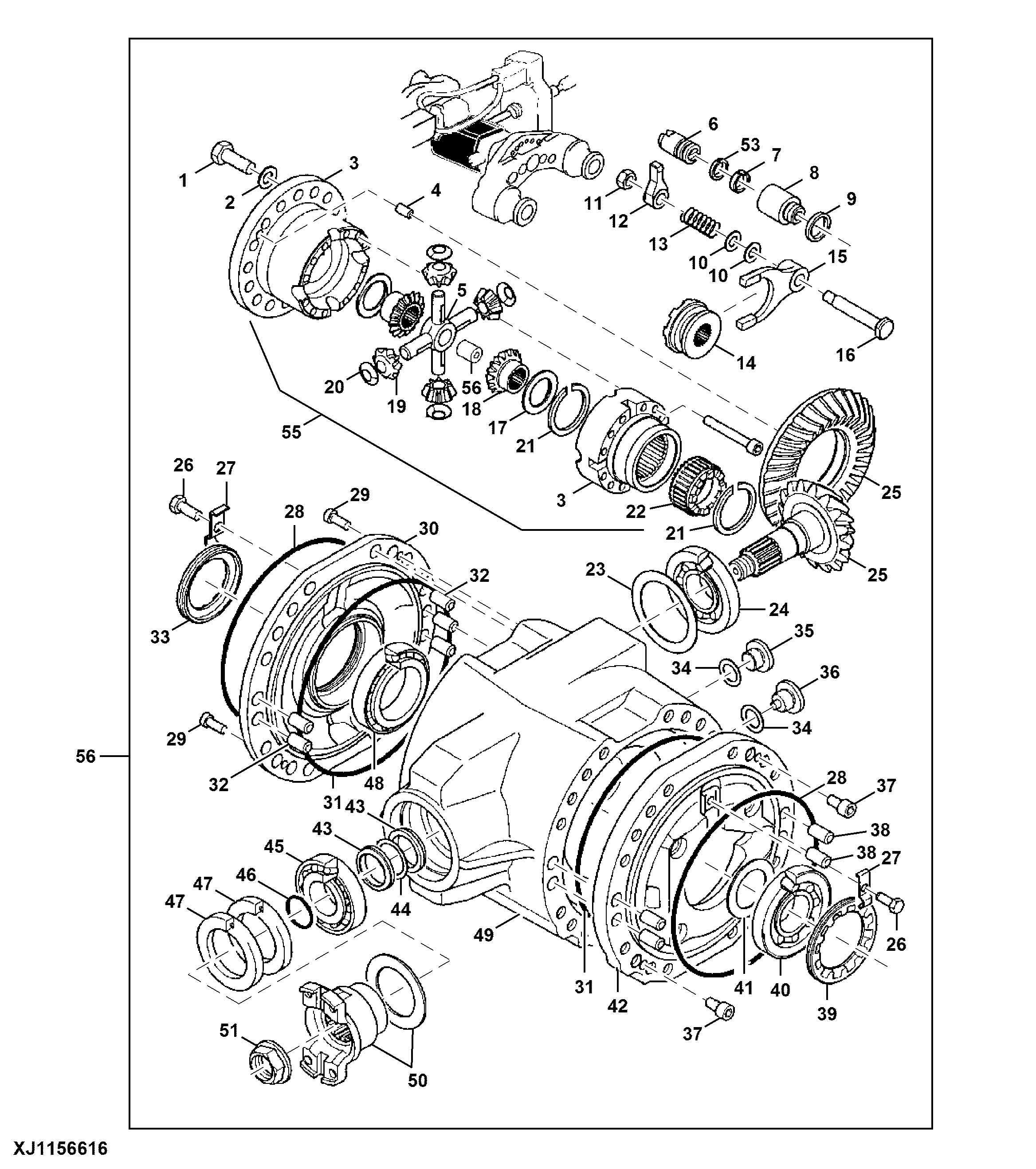

Differential, HD, LOK 112 / LOK 116

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F049368	16	Self-Locking Screw	SUB FOR F003552
2	F009375	16	Washer	-
3	F049363	1	DIFFERENTIAL HOUSING	-
4	F004738	2	Pin	-
5	F043648	1	Shaft	-
6	F050812	1	Piston	-
7	F009469	1	Seal	-
8	F058934	1	Cylinder	-
9	F009465	1	Sealing Ring	-
10	F056215	1	Shim	TK = 3.0 mm
10	F009383	1	Shim	TK = 2.5 mm
10	F009380	1	Shim	TK = 2.0 mm
10	F009378	1	Shim	TK = 1.5 mm
10	F045259	1	Shim Kit	-
11	F023666	1	Nut	-
12	F065282	1	Gearshift Lever	-
13	F009394	1	Spring	-
14	F004977	1	Snap Ring	-
15	F009430	1	Fork	-
16	F064585	1	Pin Fastener	LOK 112
16	F009411	1	PIN	LOK 116, NLA; ORDER F065282
16	F065282	1	Gearshift Lever	LOK 116
17	F004820	1	Shim	TK = 1.5 mm
17	F038396	1	Shim	TK = 2.2 mm
17	F004822	1	Shim	TK = 2.0 mm
17	F045260	1	Shim Kit	-
17	F004821	1	Shim	TK = 1.7 mm
18	F049364	2	Gear	-
19	F049365	4	Gear	-
20	F044145	4	Runner	-
21	F004757	2	Snap Ring	-
22	F049366	1	Sleeve	-
23	F035836	1	Shim	TK = 2.25 mm
23	F035839	1	Shim	TK = 3.0 mm
23	F035838	1	SHIM	TK = 2.75 mm
23	F035837	1	SHIM	TK = 2.5 mm
23	F035835	1	Shim	TK = 2.0 mm
23	F045327	1	Shim Kit	-
24	F035840	1	Tapered Roller Bearing	-
25	F054487	1	Ring Gear And Pinion	-
26	F004638	2	Screw	-
27	F004891	2	Lock Washer	-
28	F025234	2	O-Ring	-
29	F004654	2	SCREW	-
30	F035842	1	Flange	-
31	F003308	2	O-Ring	-
32	F004740	5	PIN	-
33	F034624	1	Nut	-
34	F018108	2	Washer	-
35	F025332	1	Plug	-
36	F025228	1	Plug	-
37	19M9703	2	Screw	M10 X 20
38	F035794	4	Dowel Pin	-
39	F004814	1	Nut	-
40	F004688	1	Tapered Roller Bearing	-
41	F004751	1	Snap Ring	-
42	F043649	1	Flange	-
43	F035843	1	Spacer	-
43	F035844	1	Spacer	-
44	F023667	1	Shim	TK = 1.44 mm
44	F023668	1	Shim	TK = 1.40 mm
44	F023669	1	Shim	TK = 1.36 mm
44	F023670	1	Shim	TK = 1.32 mm
44	F023671	1	Shim	TK = 1.28 mm
44	F023672	1	Shim	TK = 1.24 mm
44	F023674	1	Shim	TK = 1.16 mm
44	F023675	1	Shim	TK = 1.12 mm
44	F023676	1	Shim	TK = 1.08 mm
44	F023677	1	Shim	TK = 1.04 mm
44	F023678	1	Shim	TK = 1.0 mm
44	F023679	1	Shim	TK = 0.96 mm
44	F045262	1	Shim Kit	-
44	F023673	1	Shim	TK = 1.20 mm
45	F009443	1	BEARING	-
46	F011429	1	O-Ring	-
47	F011427	2	Seal	-
48	F035796	1	Tapered Roller Bearing	-
49	F035845	1	HOUSING	-
50	F011442	1	Shaft	-
51	F021149	1	Nut	-
52	F004659	12	Cap Screw	-
53	F050813	1	Seal	-
54	F066373	1	STUD	LOK 116
55	F065074	1	Differential	INCLUDES F049363, F043648, F045260, (2) F049364, (4) F049365, (4) F044145, (2) F004757, F049366, (12) F004659 AND F066373
56	F056221	1	Differential	-
56	F056221EX	1	Differential	REMAN FOR F056221
