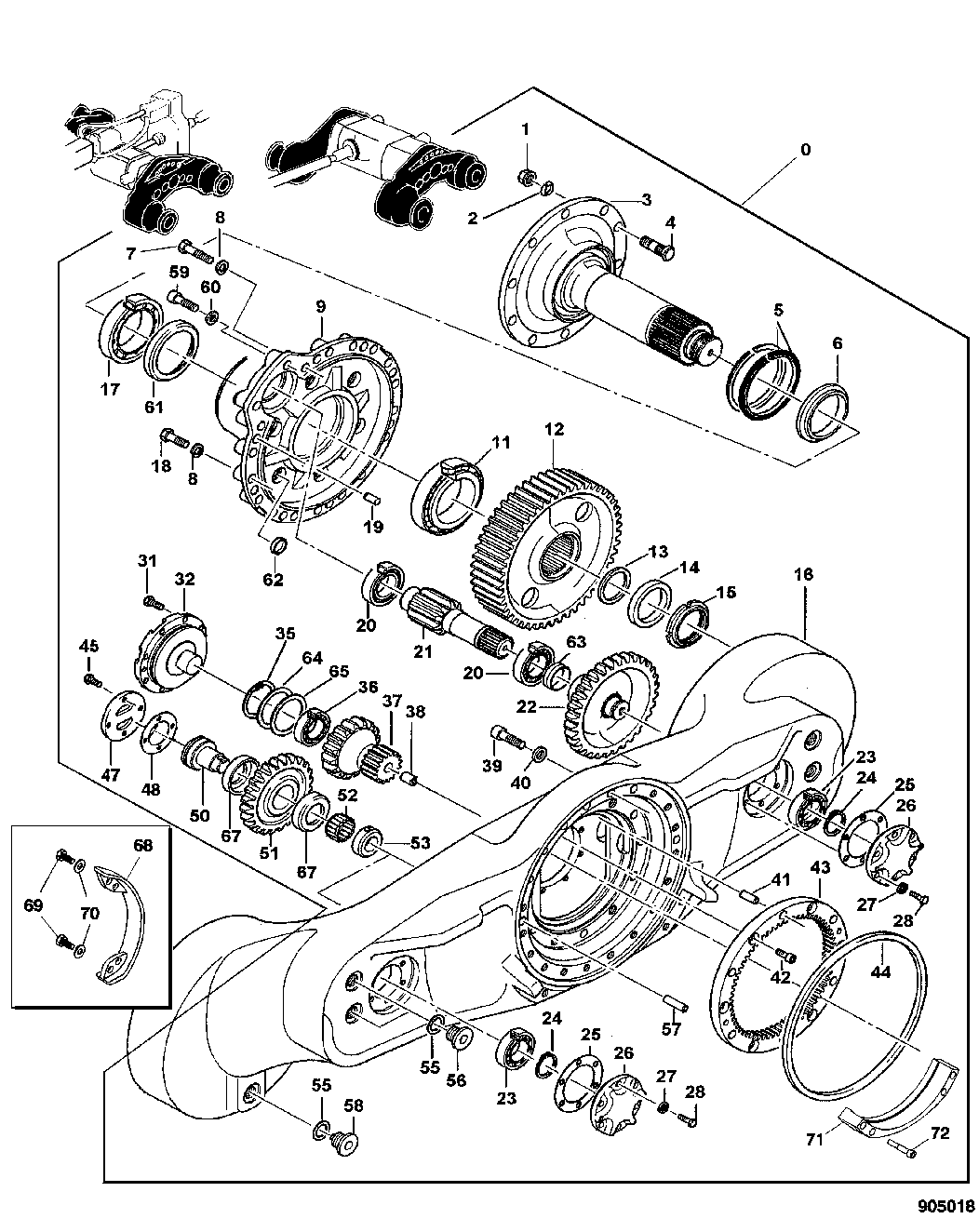

Bogie Assembly, HD, LOK 112 / LOK 132

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F069950	1	Housing	LOK 132
0	F074552	1	HOUSING	LOK 112
1	F004678	40	WHEEL NUT	-
2	F004736	40	Lock Washer	-
3	F057656	4	SHAFT	-
4	F025179	40	Wheel Bolt	-
5	F004721	4	Seal	-
6	F011078	4	Ring	-
7	F035810	8	SCREW	-
8	F009375	68	Washer	-
9	F057657	4	HOUSING	-
11	F007920	4	Tapered Roller Bearing	-
12	F035861	4	GEAR	Z = 50, LOK 112
12	F064257	4	Gear	LOK 132
13	F035815	1	Shim	TK = 1.375 mm
13	F035814	1	Shim	TK = 1.5 mm
13	F035813	1	Shim	TK = 1.625 mm
13	F035812	1	Shim	TK = 1.75 mm
13	F035811	1	Shim	TK = 1.875 mm
13	F031548	1	Shim	TK = 2.125 mm
13	F031547	1	Shim	TK = 2.25 mm
13	F031546	1	Shim	TK = 2.375 mm
13	F031545	1	Shim	TK = 2.5 mm
13	F045264	4	Shim Kit	-
13	F031549	1	Shim	TK = 2 mm
14	F035862	4	Sleeve	-
15	F023092	4	NUT	-
16	F065073	2	HOUSING	-
17	F057658	4	TAPERED ROLLER BEARING	-
18	19M3006	60	Cap Screw	M16 X 65
19	F025340	32	Pin	-
20	F036011	8	Bearing	-
21	F054497	4	SHAFT	Z = 9, LOK 112
21	F064258	4	SHAFT	LOK 132, NLA; ORDER F074415
21	F074415	4	Pinion Shaft	LOK 132
22	F045044	4	GEAR	Z = 30, LOK 112
22	F064259	4	GEAR	LOK 132, NLA; ORDER F074416
22	F074416	4	Gear	LOK 132
23	F025175	4	BEARING	-
24	F025176	4	Snap Ring	-
25	F025177	4	Gasket	-
26	F025178	4	Cap	-
27	F004734	24	Retainer	-
28	19M9639	24	Cap Screw	M10 X 25
31	F025159	16	Self-Locking Screw	-
32	F066854	2	STUD	LOK 112
32	F061938	2	COVER	LOK 132
35	F035870	2	CIRCLIP	-
36	F025175	2	BEARING	-
36	F048282	2	Bearing	LOK 132
37	F045045	2	GEAR	Z = 16
37	F064260	2	GEAR	LOK 132
38	F025324	2	Bolt	-
39	F025167	8	SCREW	-
40	F025168	8	Washer	-
41	F004742	12	Pin	-
42	F023085	12	Self-Locking Screw	-
43	F054494	2	Ring Gear	Z = 66
44	F035857	2	Seal	-
45	F064586	32	SCREW	-
47	F025364	8	CAP	-
48	F070979	4	Gasket	-
50	F066375	8	SHAFT	-
51	F045043	8	GEAR	Z = 22
52	F025155	8	BEARING	-
53	F066376	8	SPACER	-
55	F009465	12	Sealing Ring	-
56	F009438	8	Plug	-
57	F035794	4	Dowel Pin	-
58	F010163	4	Plug	-
59	F061673	8	Self-Locking Screw	-
60	F004735	8	SPRING WASHER	-
61	F045336	4	Cap	-
62	F004912	24	Cover	-
63	F045335	4	Bushing	-
64	F054718	2	Seal	LOK 132
65	F045333	2	WASHER	LOK 132
67	F045337	16	WASHER	-
68	F631766	1	WEAR PLATE	-
69	19M4805	1	Cap Screw	M12 X 40
70	F003170	1	WASHER	-
71	F069244	4	Wear Plate	-
72	F055302	16	Screw	-
