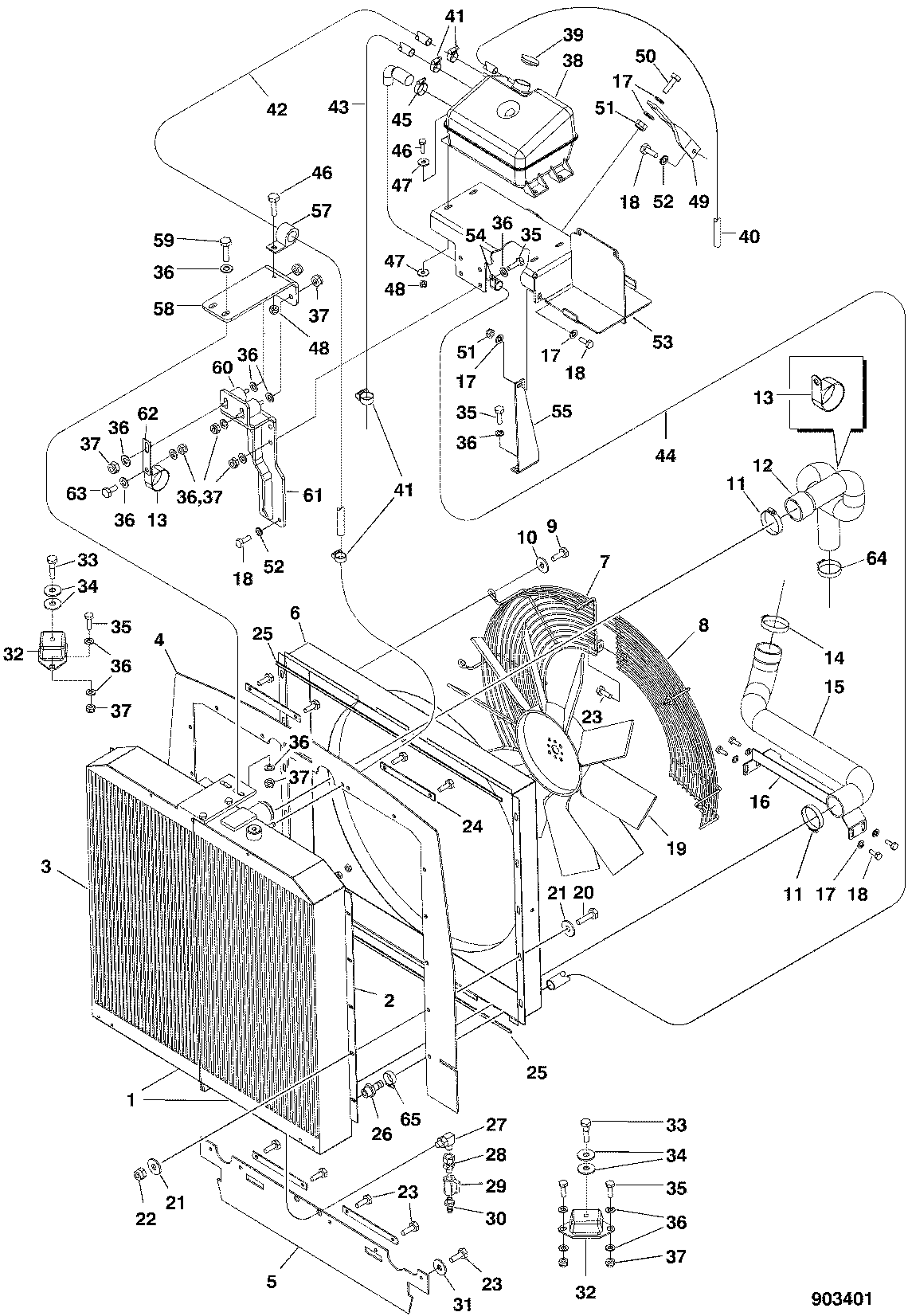

ENGINE COOLING SYSTEM F060125 1500 2 903401 [903401]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F053944	1	COOLER	-
2	F055143	1	COOLER	-
3	F055144	1	OIL COOLER	-
4	F600433	1	COLLAR	-
5	F600434	1	COLLAR	-
6	F600465	1	FAN HOUSING	-
7	F616488	1	COVER	-
8	F616487	1	COVER	-
9	F003532	5	SCREW	-
10	F003723	5	WASHER	-
11	F003676	2	HOSE CLAMP	-
12	F611888	1	HOSE	-
13	F012860	1	Hose Support	-
14	F003677	1	HOSE CLAMP	-
15	F611887	1	HOSE	-
16	F616211	1	YOKE	-
17	F003338	8	WASHER	-
18	F003524	8	SCREW	-
19	-------	1	O-RING	-
20	F003520	10	SCREW	-
21	F031864	20	WASHER	-
22	F024627	10	NUT	-
23	F003524	11	SCREW	-
24	F600439	4	STRIP	-
25	F052165	2	SEALING TAPE	-
26	F048941	1	CONNECTION	-
27	F024599	1	Elbow Fitting	-
28	F024875	1	CONNECTION	-
29	F056620	1	DRAIN VALVE	-
30	F059902	1	Hose Fitting	-
31	F003722	2	WASHER	-
32	F048323	2	Torsional Damper	-
33	F003493	2	SCREW	-
34	F003724	4	WASHER	-
35	F003533	10	SCREW	-
36	F003339	26	WASHER	-
37	F003588	15	LOCK NUT	-
38	F026697	1	EXPANSION TANK	-
39	F026891	1	CAP	-
40	F030381	1	HOSE	-
41	F003667	4	HOSE CLAMP	-
42	F603132	1	HOSE	-
43	F616332	1	HOSE	-
44	F028198	1	HOSE	-
45	F003671	1	HOSE CLAMP	-
46	F003520	5	SCREW	-
47	F031864	8	WASHER	-
48	F003586	5	LOCK NUT	-
49	F613969	1	BAR	-
50	F003525	1	SCREW	-
51	F003587	2	LOCK NUT	-
52	F008262	3	Lock Washer	-
53	F613953	1	YOKE	-
54	F004420	1	Hose Clamp	-
55	F611868	1	PLATE	-
56	F005551	2	Lock Washer	-
57	F053301	1	Holder	-
58	F611862	1	PLATE	-
59	F003536	2	SCREW	-
60	F040593	2	Torsional Damper	-
61	F611863	1	YOKE	-
62	F616333	1	PLATE	-
63	F003531	1	SCREW	-
64	F003675	1	HOSE CLAMP	-
65	F003668	1	Hose Clamp	-

ENGINE COOLING SYSTEM F060125 1500 2 903401 [903401]
