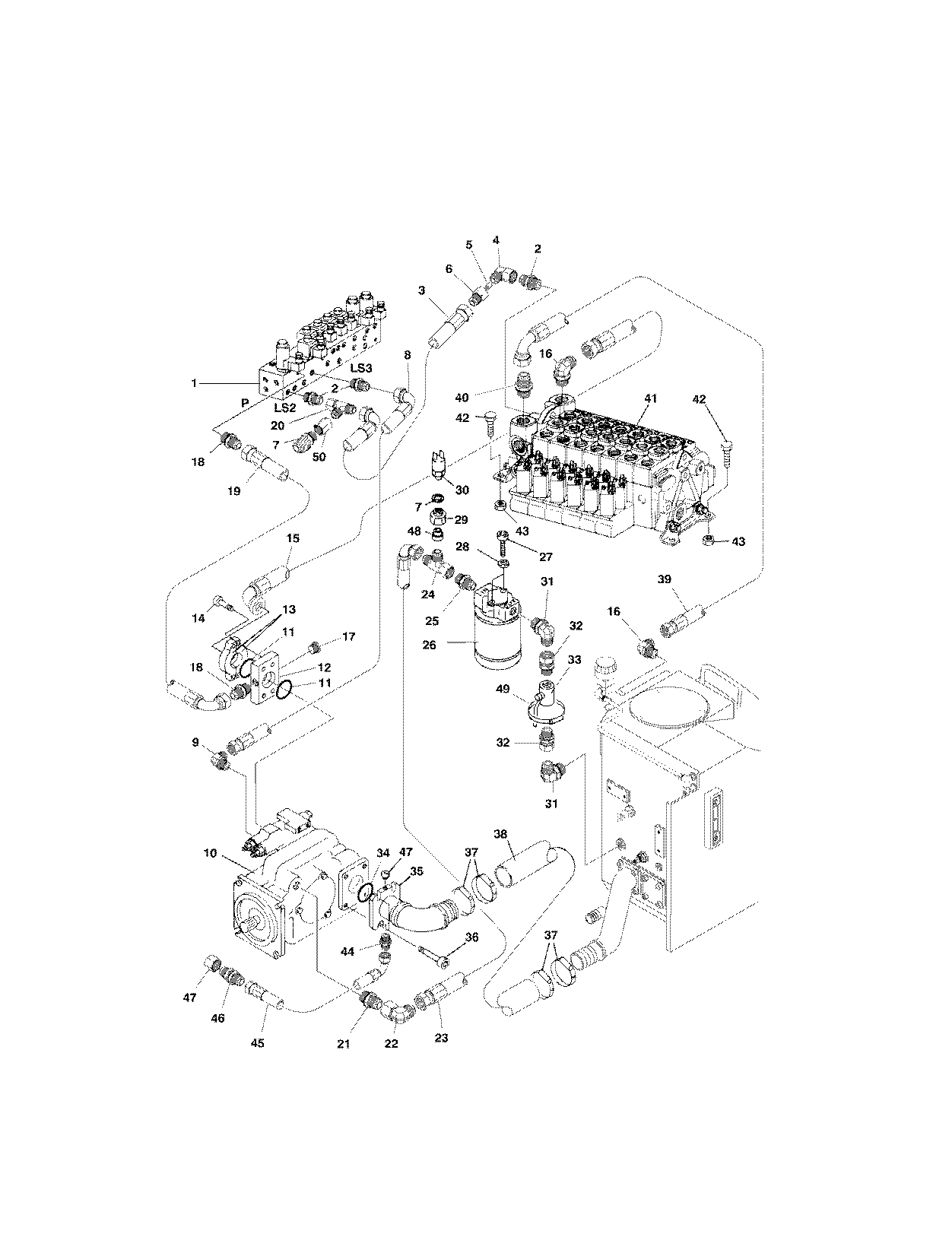

HYDRAULIC SYSTEM HYDRAULIC PUMP MOUNTING F054236 41 8 902858 [902858]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-------	1	O-RING	-
2	F005057	3	Fitting	-
3	F040546	1	HOSE-ASSY	-
4	F022417	1	Elbow Fitting	-
5	F004626	1	Orifice	-
6	F040264	1	Fitting	-
7	F023426	1	Fitting	-
8	F026125	1	HOSE-ASSY	-
9	F024670	1	ELBOW NIPPLE	-
10	-------	1	O-RING	-
11	F003762	2	O-RING	-
12	F033151	1	CONNECTION	-
13	F004405	2	Flange	-
14	F038294	4	SCREW	-
15	F040545	1	HOSE-ASSY	-
16	F005094	2	Elbow Fitting	-
17	F003383	1	PLUG	-
18	F005060	2	Fitting	-
19	F040548	1	HOSE-ASSY	-
20	F023535	1	Tee Fitting	-
21	F002726	1	NIPPLE	-
22	F011482	1	Fitting	-
23	F001505	1	HOSE-ASSY	-
24	F012532	1	Tee Fitting	-
25	F005063	1	NIPPLE	-
26	F004291	1	FILTER	-
27	F003400	2	SCREW	-
28	F003337	2	WASHER	-
29	F005082	1	CONNECTION	-
30	F043561	1	SWITCH-PRESSURE	-
31	F005049	2	Elbow Fitting	-
32	F005098	2	Fitting	-
33	F004408	1	VALVE	-
34	F003764	1	O-RING	-
35	F053893	1	FLANGE ASSY	-
36	F003775	4	SCREW	-
37	F008489	4	Hose Clamp	-
38	F040549	1	HOSE	-
38	F056606	1	Suction Hose	-
39	F040547	1	HOSE-ASSY	-
40	F005095	1	NIPPLE	-
41	-------	1	O-RING	-
42	F003532	4	SCREW	-
43	F003588	4	LOCK NUT	-
44	F023015	1	Fitting	-
45	F039960	1	HOSE-ASSY	-
46	F026188	1	Fitting	-
47	F013269	1	Nut	-
48	F005092	1	Sleeve Fitting	-
49	F003676	1	HOSE CLAMP	-
50	F024364	1	Fitting	-
-	F004292	1	FILTER	-
