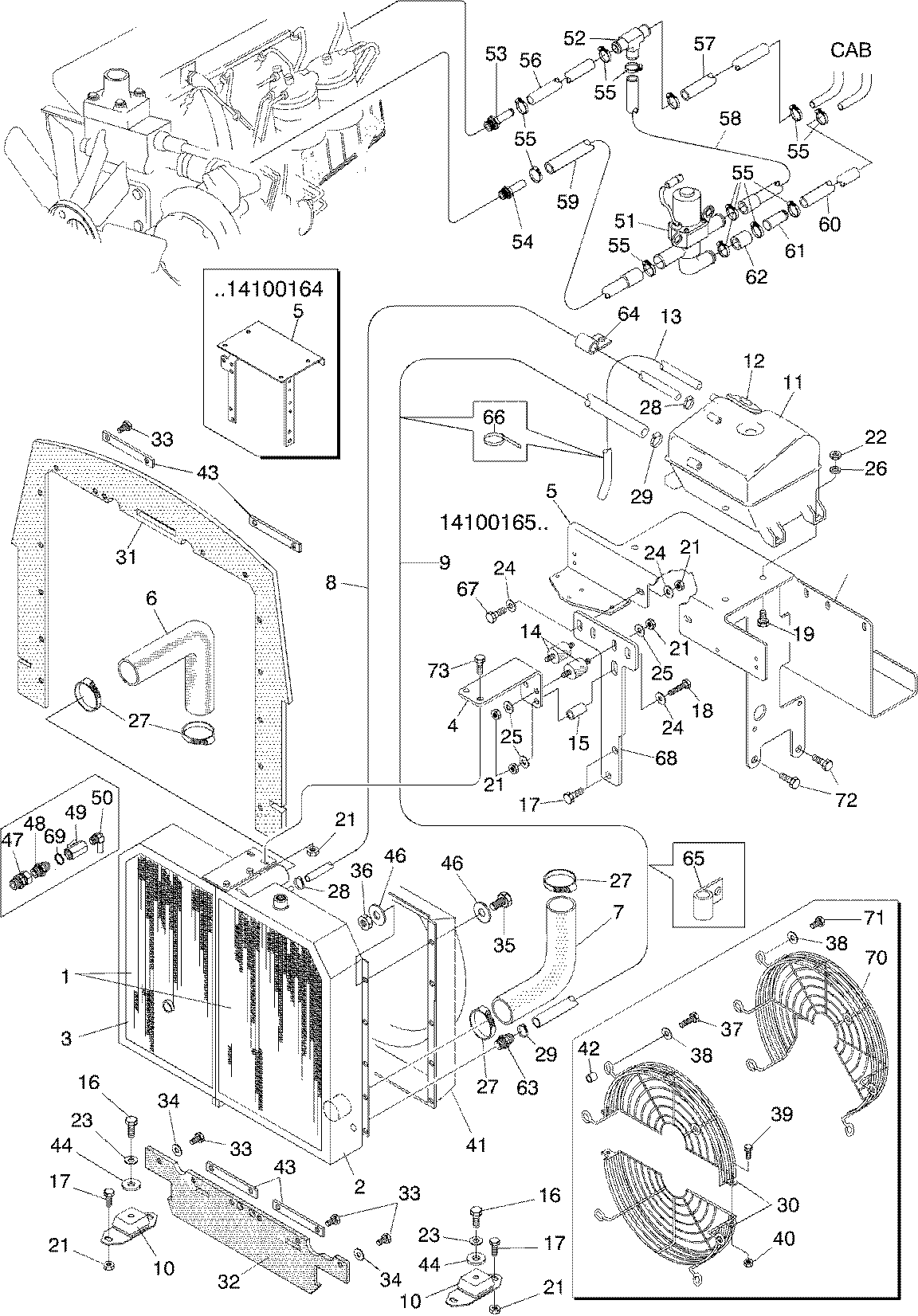

ENGINE COOLING SYSTEM F054236 11 4 902940 [902940]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F053944	1	COOLER	-
2	F055143	1	COOLER	-
3	F055144	1	OIL COOLER	-
4	F601087	1	SUPPORT	-
5	F601093	1	BRACKET	-
5	F603534	1	BRACKET	-
6	F600454	1	HOSE	-
7	F600452	1	HOSE	-
8	F603132	1	HOSE	-
9	F028198	1	HOSE	-
10	F048323	2	Torsional Damper	-
11	F026697	1	EXPANSION TANK	-
12	F026891	1	CAP	-
13	F030381	1	HOSE	-
14	F040593	2	Torsional Damper	-
15	F604443	1	BUSHING	-
16	F003493	2	SCREW	-
17	F003533	6	SCREW	-
18	F003487	1	SCREW	-
19	F003520	4	SCREW	-
21	F003588	11	LOCK NUT	-
22	F003586	4	LOCK NUT	-
23	F003170	2	WASHER	-
24	F003723	5	WASHER	-
25	F003339	5	WASHER	-
26	F003337	4	WASHER	-
27	F003676	4	HOSE CLAMP	-
28	F003667	2	HOSE CLAMP	-
29	F003671	2	HOSE CLAMP	-
30	F601219	2	GRID	-
31	F600433	1	COLLAR	-
32	F600434	1	COLLAR	-
33	F003524	10	SCREW	-
34	F003722	2	WASHER	-
35	F003520	10	SCREW	-
36	F003586	10	LOCK NUT	-
37	F011199	6	SCREW	-
38	F003723	6	WASHER	-
39	F003525	2	SCREW	-
40	F003587	2	LOCK NUT	-
41	F600465	1	FAN HOUSING	-
42	F600441	6	SLEEVE	-
43	F600439	4	STRIP	-
44	F003724	2	WASHER	-
46	F031864	20	WASHER	-
47	F024875	1	CONNECTION	-
48	F039765	1	CONNECTION	-
49	F056620	1	DRAIN VALVE	-
50	F054035	1	CONNECTION	-
51	F040449	1	WATER VALVE	-
52	F005024	1	HOSE FITTING	-
53	F010762	1	CONNECTION	-
54	F011255	1	Hose Fitting	-
55	F003671	12	HOSE CLAMP	-
56	F011959	1	HOSE	-
57	F023126	1	HOSE	-
58	F050931	1	HOSE	-
59	F602422	1	HOSE	-
60	F016565	1	HOSE	-
61	F044975	1	EXHAUST PIPE	-
62	F037876	1	HOSE	-
63	F048941	1	CONNECTION	-
64	F015014	1	HOSE CLAMP	-
65	F017094	2	Hose Support	-
66	F005334	6	Tie Band	-
67	F003536	2	SCREW	-
68	F603533	1	YOKE	-
69	F005163	1	Sealing Washer	-
70	F604381	1	GRID	-
71	F003532	6	SCREW	-
72	F003531	2	SCREW	-
73	F003538	2	SCREW	-

ENGINE COOLING SYSTEM F054236 11 4 902940 [902940]

Нет текстового описания
